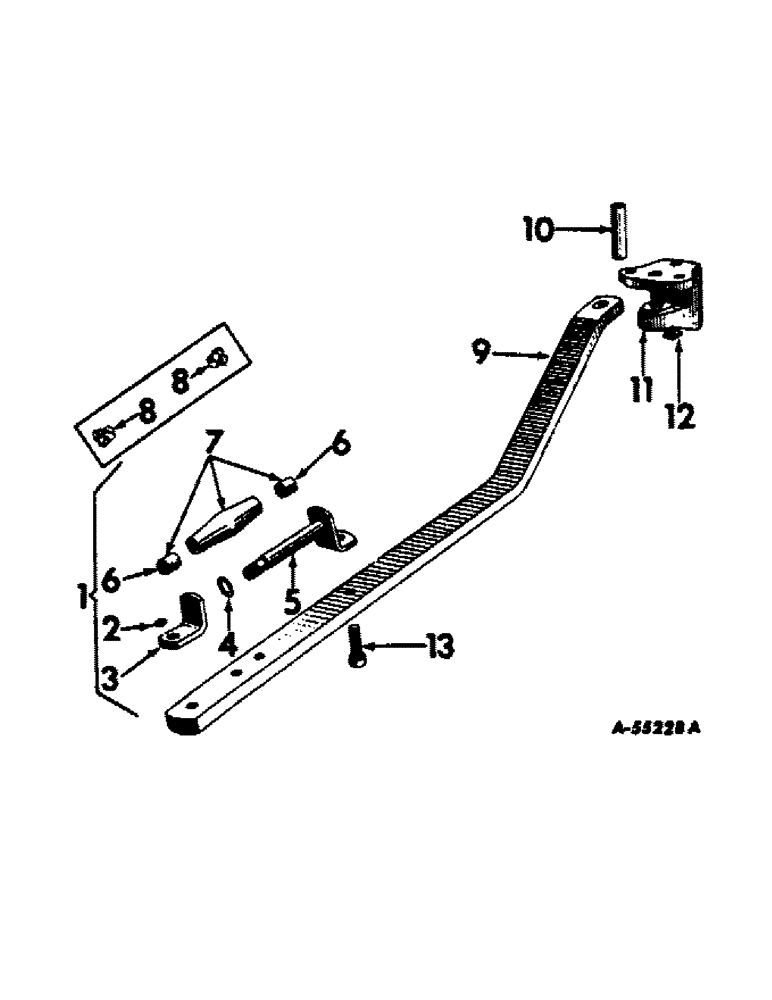

Запчасти Case IH 560 (247) - DRAWBARS AND HITCHES, SWINGING DRAWBAR Drawbar & Hitches

ATTACHMENT, swinging drawbar (359178R95)

1шт.

1

356563R93

ROLLER

ASSEMBLY, swinging drawbar composed of, (1) fitting 109461, (1) nut 220081, (1) roller 356562R31, (1) shaft 256561R11, (1) support 356565R2, (1) washer 103326, (2) washer 358002R1

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) (See note A) 1/8"-27 x .66 lg

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) (see note A) 1/8"-27 x .66 lg

1шт.

3

356565R2

SUPPORT

drawbar roller shaft

1шт.

13361R1

BOLT, 5/8 x 2-1/4" mach

1шт.

NUT, 5/8"

1шт.

WASHER, 5/8" lock

1шт.

4

358002R1

WASHER

drawbar roller shaft (see note A)

2шт.

5

356561R11

SHAFT

AND SUPPORT ASSEMBLY, swinging drawbar roller

1шт.

NUT, 5/8"

1шт.

NUT, 3/4"

1шт.

SCREW, 5/8 x 2-1/4" cap

1шт.

WASHER, 5/8" lock

1шт.

WASHER, 3/4" lock

1шт.

6

356564R1

BUSHING

drawbar roller (see note A)

2шт.

7

356562R31

ROLLER

ASSEMBLY, swinging drawbar

1шт.

8

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, swinging drawbar roller (see note B)

2шт.

9

359177R3

DRAWBAR, swinging

1шт.

10

58657DA

PIN

swinging drawbar pivot

1шт.

11

8874DA

SUPPORT, swinging drawbar pivot

1шт.

361133R1

BOLT,Hex, 7/8" - 9 x 2 1/4"

SCREW, swinging drawbar pivot support

3шт.

WASHER, 7/8" lock

3шт.

12

57655D

PLATE

swinging drawbar pivot pin lock

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

13

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2" hex-hd cap (used as drawbar roller stop)

2шт.

NUT, 3/4 " sq.

2шт.

WASHER, 3/4" lock

2шт.
