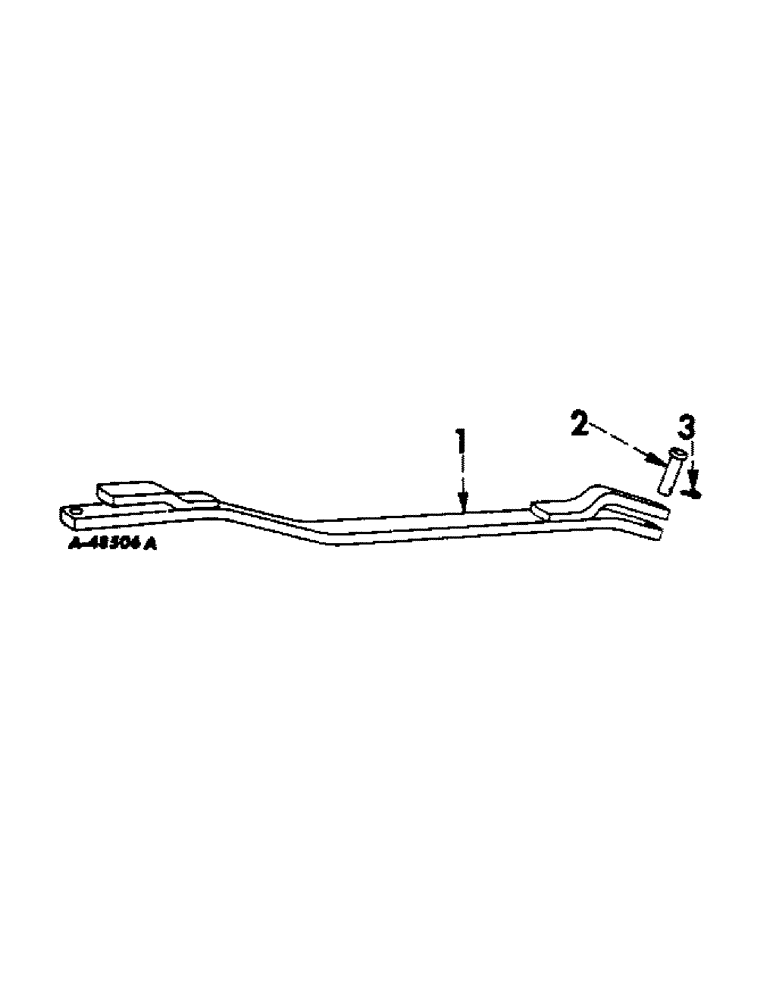

Запчасти Case IH 560 (247[A]) - DRAWBARS AND HITCHES, SWINGING DRAWBAR Drawbar & Hitches

ATTACHMENT, swinging drawbar (368473R91)

1шт.

1

368475R11

DRAWBAR, swinging

1шт.

NUT, 3/4" (see note)

2шт.

SCREW, 3/4 x 1-3/4" hex-hd. cap (see note)

2шт.

2

368472R1

PIN

swinging drawbar pivot

1шт.

3

PO18499

COTTER PIN

quick attachable cotter

1шт.
