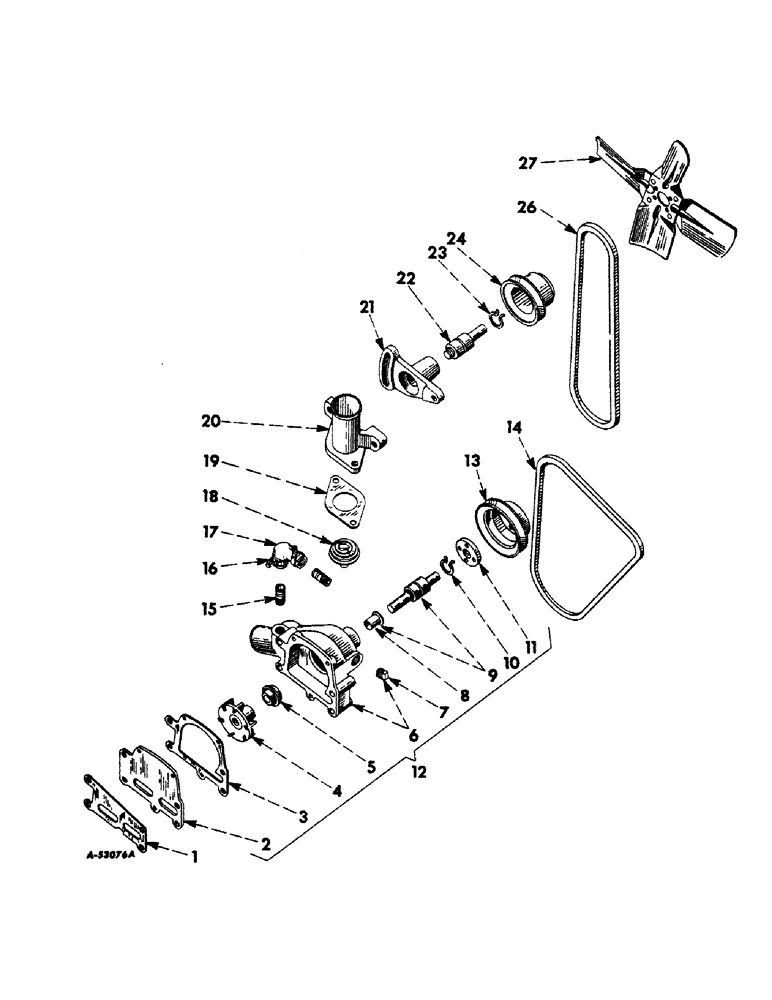

Запчасти Case IH 560 (068) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, CARBURETED ENGINE TRACTORS COOLING SYSTEM

1

69676R1

GASKET

GASKET, water pump

1шт.

2

69675R1

PLATE

PLATE, water pump

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW, 1/4 x 1/2" slt-rd-hd mach

3шт.

3

69674R1

GASKET

GASKET, water pump plate

1шт.

4

69670R1

TORQ CONV IMPELLER

IMPELLER, water pump

1шт.

5

73296R92

SEAL

SEAL ASSEMBLY, water pump

1шт.

6

318118R21

BODY

BODY ASSEMBLY, water pump

1шт.

103867

PLUG

PLUG, 3/8" sq-hd CI pipe (LP gas engine tractors)

1шт.

7

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

8

71351R1

SLINGER

SLINGER, water pump

1шт.

9

ST680

SHAFT

BEARING, w/shaft assembly, water pump

1шт.

10

102069H

RING

RETAINER, bearing

1шт.

11

368501R2

HUB CAP

HUB, pulley

1шт.

12

318119R92

PUMP

PUMP ASSEMBLY, water

1шт.

12

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

12

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

.

SCREW, 3/8 x 2-1/4" hex-hd. cap

1шт.

.

SCREW, 3/8 x 2-1/2" hex-hd. cap

2шт.

.

WASHER, 3/8" lock

3шт.

13

368502R1

PULLEY

PULLEY, water pump

1шт.

14

149635R1

BELT

BELT, water pump and generator

1шт.

15

169193R1

PIPE

NIPPLE, water by-pass (gasoline only)

2шт.

16

240369R91

SPARE PART CLAMP, hose (genreator only)

2шт.

17

169192R1

HOSE

ELBOW, water by-pass (gasoline only)

1шт.

18

108120R91

THERMOSTAT

THERMOSTAT (167 deg. - 172 deg.)

1шт.

19

368505R1

GASKET

GASKET, water outlet

1шт.

20

368504R1

OUTLET

OUTLET, water

1шт.

.

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

.

SCREW, 7/16 x 2-1/2" hex-hd. cap

1шт.

.

WASHER, 7/16" lock

2шт.

21

368508R1

ADJUSTER

HEIGHT ADJUSTER, fan pulley

1шт.

.

SCREW, 7/16 x 1-1/4" hex-hd. cap

2шт.

.

WASHER, 7/16" lock

2шт.

.

WASHER, 1/2 x 1-1/4" x .083 ga.

2шт.

22

ST634

BEARING ASSY

BEARING AND SHAFT ASSEMBLY

1шт.

23

102069H

RING

RETAINER, bearing

1шт.

24

368509R1

PULLEY

PULLEY, fan (560 series)

1шт.

24

372724R1

PULLEY

PULLEY, fan (International 660)

1шт.

26

149635R1

BELT

BELT, fan (560 series)

1шт.

26

378113R1

BELT

BELT, fan (International 660)

1шт.

27

370781R91

SPARE PART BLADE ASSEMBLY, fan (gasoline, 4 blade) (560 series)

1шт.

27

372594R91

SPARE PART BLADE ASSEMBLY, fan (gasoline, 4 blade) (International 660)

1шт.

27

370782R91

FAN

BLADE ASSEMBLY, fan (LP gas, 6 blade) (560 series)

1шт.

27

372595R91

SPARE PART BLADE ASSEMBLY, fan (LP gas, 6 blade) (International 660)

1шт.

.

SCREW, 1/4NF x 1/2" hex-hd cap

4шт.

.

WASHER, 1/4" lock

4шт.

374544R92

KIT

PACKAGE, water pump service, consists of (1) gasket 69674R1, (1) gasket 69676R1, (1) impeller 332117R1, (1) retainer 102069H, (1) seal 73296R92, (1) bearing and shaft assy ST680

1шт.
