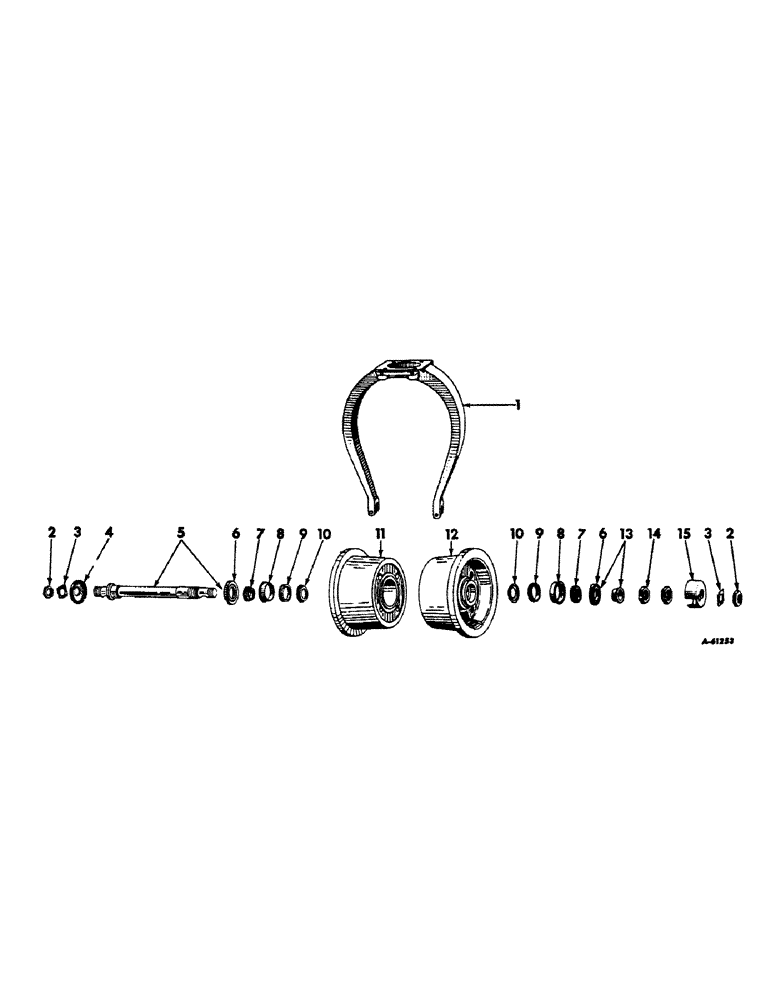

Запчасти Case IH 560 (201) - WHEELS, SINGLE FRONT WHEEL, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS (11) - WHEELS

1

8298DC

FORK, front bolster (unit A)

1шт.

1

375369R1

FORK, front bolster (unit B)

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3-1/2" hex-hd. cap

2шт.

SCREW, 3/4 x 1-1/2" hex-hd. cap

4шт.

WASHER, 1/2" lock

2шт.

WASHER, 3/4" lock

4шт.

2

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4 NF jam

2шт.

3

38916D

LOCK WASHER

front axle nut lock

2шт.

4

351419R11

PROTECTOR

SHIELD, front wheel hub-short

1шт.

5

351417R11

AXLE ACCESSORY, front (unit A)

1шт.

5

375370R11

AXLE ACCESSORY, front (unit B)

1шт.

6

48539DA

PACKING RING

OIL SEAL, front axle

2шт.

7

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE, front wheel bearing

2шт.

8

48548D

WASHER

front wheel oil seal

2шт.

9

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP, front wheel bearing

2шт.

10

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

front wheel bearing grease

2шт.

11

383790R11

WHEEL ASSEMBLY, front male half (unit A)

1шт.

11

375371R11

WHEEL ASSEMBLY, front male half (unit B)

1шт.

NUT, 5/8"

4шт.

WASHER, 5/8" lock

4шт.

12

383791R11

WHEEL ASSEMBLY, front female half (unit A)

1шт.

12

375372R11

WHEEL ASSEMBLY, front female half (unit B)

1шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8 x 7" cap (4 for unit A)

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8 x 8" cap (4 for unit B)

1шт.

13

351416R11

SPACER ASSEMBLY, front wheel bearing

1шт.

14

351418R1

BEARING LOCK NUT

front wheel bearing adjusting

2шт.

15

351420R11

PROTECTOR

SHIELD, front wheel hub-long

1шт.
