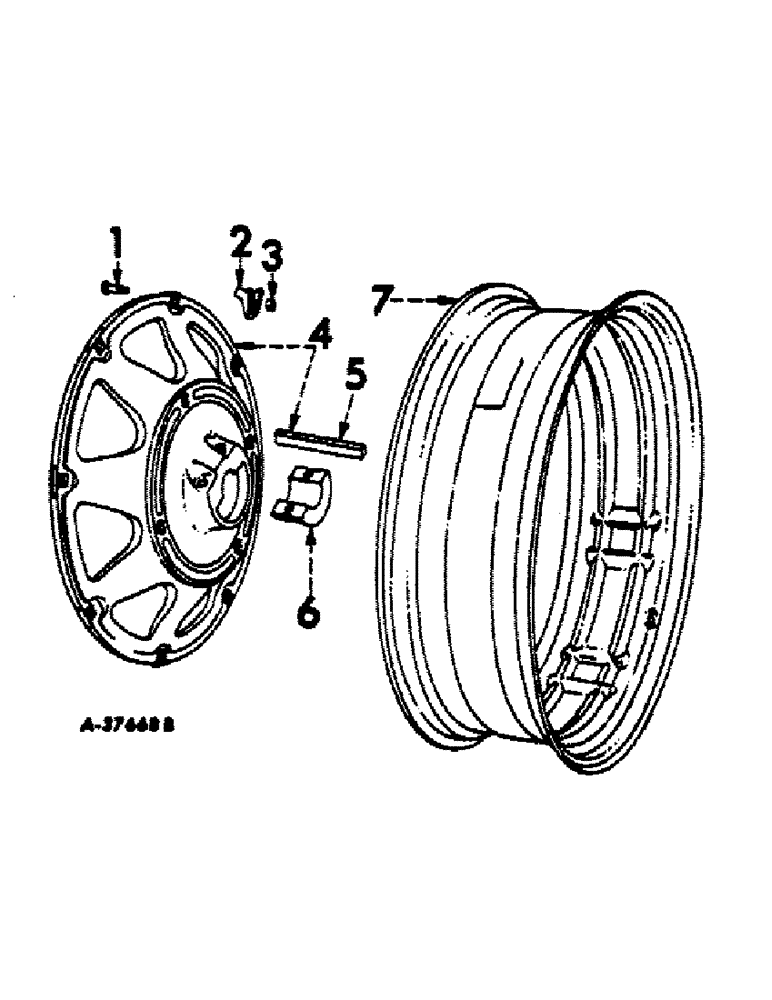

Запчасти Case IH 560 (200) - WHEELS, REAR WHEELS, PNEUMATIC TIRES, FOR FARMALL 560 SERIES TRACTORS (11) - WHEELS

1

363017R1

BOLT,5/8" - 18 x 2 1/4"

rear wheel rim clamp

16шт.

2

363016R1

CLAMP

rear wheel rim (adjustable)

12шт.

2

373926R1

CLAMP

rear wheel rim (fixed)

4шт.

3

363018R1

NUT

rim clamp bolt

16шт.

4

363014R52

WHEEL

ASSEMBLY, rear

2шт.

5

363015R3

KEY

rear wheel

2шт.

6

355440R2

CLAMP

rear wheel hub

4шт.

375465R1

BOLT,Spcl, Hex, 7/8" - 14 x 4", Gr 8

SCREW, 7/8 NF x 4" hex-hd. cap Farmall 560 series, Serial Range: 501-9046

8шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8 NF x 4-3/4" hex-hd. cap Farmall 560 series 9047 up

8шт.

7

363022R2

RIM

rear wheel (W 11-38 rim for 11-38 or 12-38 or 12.4-38 tire)

2шт.

7

363023R2

RIM

rear wheel (W 12-38 rim for 12-38 or 13-38 or 13-6-38 tire)

2шт.

7

365946R2

RIM

rear wheel (W 14L-38 rim for 15.5-38 tire)

2шт.
