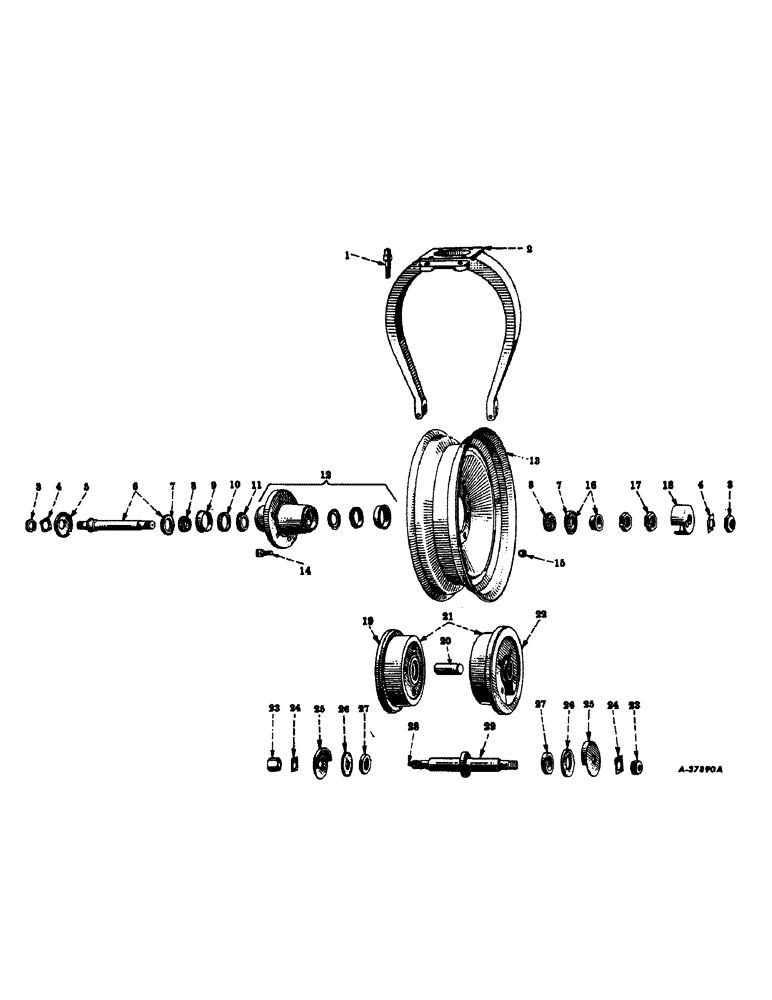

Запчасти Case IH 560 (199) - WHEELS, SINGLE FRONT WHEEL, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS (11) - WHEELS

1

(Not used)

1шт.

2

8298DC

FORK, front bolster (for 7.50 x 16 or 9.00 x 10 tire)

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3-1/2" hex-hd. cap

2шт.

SCREW, 3/4 x 1-1/2" hex-hd. cap

4шт.

WASHER, 1/2" lock

2шт.

WASHER, 3/4" lock

4шт.

3

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4 NF jam (2 for unit A)

1шт.

4

38916D

LOCK WASHER

front axle nut lock (2 for unit A)

1шт.

5

351419R11

PROTECTOR

SHIELD, front wheel hub short (unit A)

1шт.

6

351417R11

AXLE ASSEMBLY, front (unit A)

1шт.

7

48539DA

PACKING RING

OIL SEAL, front axle (2 for unit A)

1шт.

8

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE, front wheel bearing (2 for unit A)

1шт.

9

48548D

WASHER

front wheel oil seal (2 for unit A)

1шт.

10

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP, front wheel bearing (2 for unit A)

1шт.

11

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

front wheel bearing grease (2 for unit A)

1шт.

12

351398R21

HUB ASSEMBLY, front wheel (unit A) composed of, (2) cup ST974, (1) hub 351398R2 (NSS), (2) retainer 48548D, (2) retainer 60288DA

1шт.

13

354195R91

WHEEL

front (for pneumatic tire 7.50 x 16) (unit A)

1шт.

14

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, front wheel mounting (6 for unit A)

1шт.

15

351793R1

WHEEL NUT

NUT, front wheel mounting (6 for unit A)

1шт.

16

351416R11

SPACER ASSEMBLY, front wheel bearing (unit A)

1шт.

17

351418R1

BEARING LOCK NUT

front wheel bearing adjusting (2 for unit A)

1шт.

18

351420R11

PROTECTOR

SHIELD, front wheel hub, long (unit A)

1шт.

19

5677DAX

WHEEL, w/bushing, 359341R1 and oil seal, 273581R91 assembly, front male hale (for pneumatic tire 9.00 x 10) (unit B)

1шт.

NUT, 5/8"

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8 x " hex-hd. cap

4шт.

WASHER, 5/8" lock

4шт.

20

359341R1

BUSHING, front wheel (2 for unit B)

1шт.

21

42989DA

WHEEL ASSEMBLY, front (for pneumatic tire 9.00 x 10) (unit B) composed of, (4) nut 102639, (4) screw 16154R1, (4) washer 10325, (1) wheel 5677 DAX, (1) wheel 5678 DAX

1шт.

22

5678DAX

WHEEL, w/bushing, 359341R1 and oil seal, 273581R91 assembly, front female half (for pneumatic tire 9.00 x 10) (unit B)

1шт.

23

218408

NUT

1-1/4 NF (2 for unit B)

1шт.

24

38916D

LOCK WASHER

front axle nut lock (2 for unit B)

1шт.

25

38915DX

SHIELD, front wheel hub (2 for unit B)

1шт.

26

38914D

WASHER, front wheel felt (2 for unit B)

1шт.

27

273581R91

SEAL

OIL SEAL, front wheel (2 for unit B)

1шт.

28

126132

FITTING

1/4" straight lubrication (optional with 273349) (unit B)

1шт.

28

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING, 1/4" straight lubrication (optional with 126132) (unit B)

1шт.

29

38917DA

AXLE, front (unit B)

1шт.
