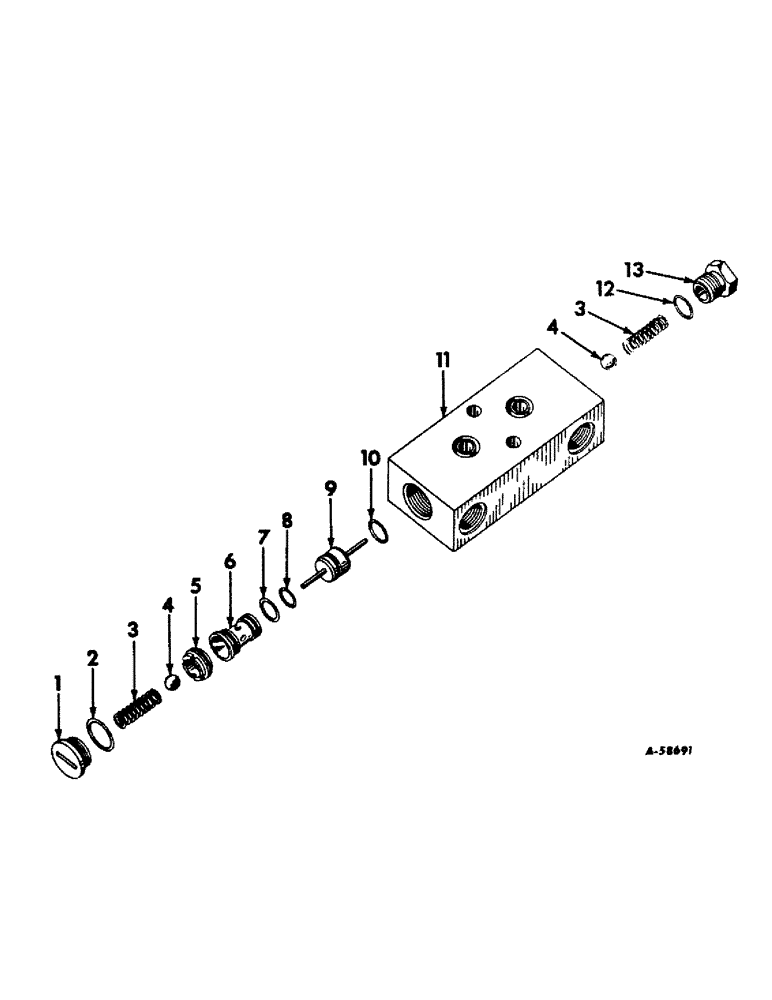

Запчасти Case IH 560 (243) - HYDRAULIC SYSTEM, CHECK VALVE, DOUBLE ACTING, FOR TRACTORS W/FAST-HITCH (07) - HYDRAULIC SYSTEM

374092R91

VALVE ASSEMBLY, check

1шт.

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

check valve plug (59/64 x 1-1/16 x 7/64")

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R11

RETAINER

ASSEMBLY, check valve ball

1шт.

7

574069R1

O-RING,0.750" ID x .062"

ball retainer (large) (3/4 x 7/8 x 1/16")

1шт.

8

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

ball retainer (small) (11/16 x 13/16 x 1/16")

1шт.

9

374085R11

PISTON

ASSEMBLY, check valve actuator

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

piston (5/8 x 13/16 x 3/32")

1шт.

11

BLOCK, check valve (not serviced separately, order valve, 374092R91)

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

check valve plug (3/4 x 15/16 x 3/32")

1шт.

13

374089R1

PLUG

check valve

1шт.
