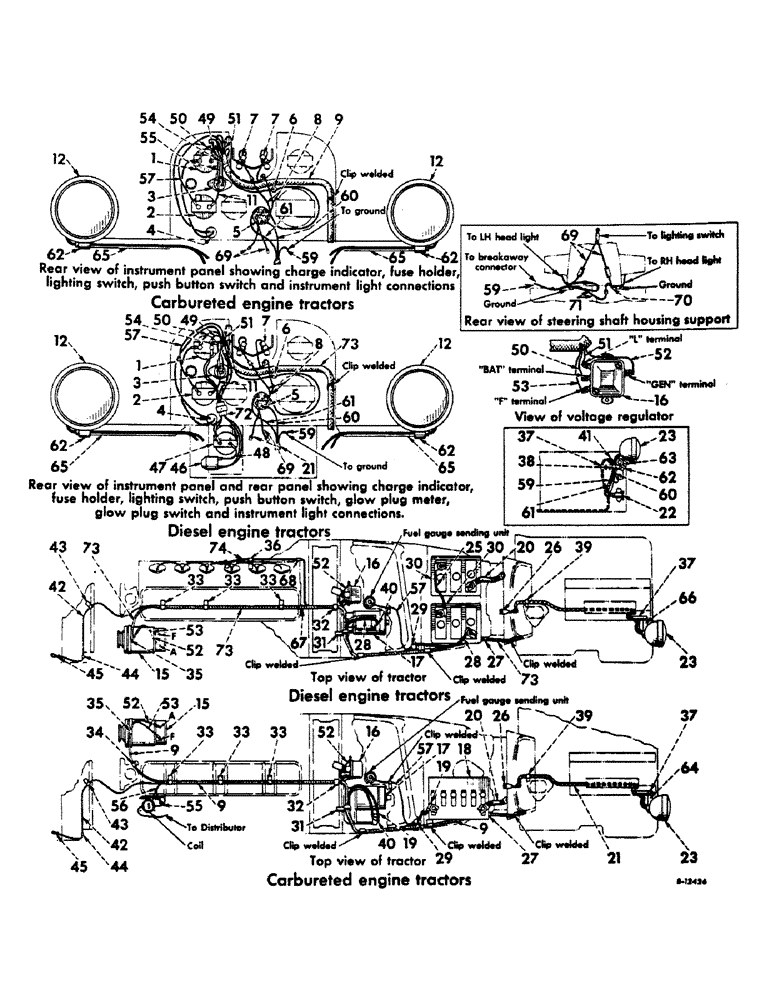

Запчасти Case IH 560 (110) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL 560 SERIES 36043 UP (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
Ref #2 fuel gauge 369607R92 is a Stewart Warner gauge now subs to 369607R93 and will only work with sender 1341373C1. If mix incorrect sender with guage will give incorret fuel level readings. The Rochester gauge subs up to the Stewart-Warner gauge. So if tractor originally had a Rochester gauge and sender will need to change. TSG BT 4-7-98
1шт.
3
366317R91
IGNITION SWITCH
SWITCH ASSEMBLY, push button starting (optional with 366316R91)
1шт.
10
370438R91
CABLE
HARNESS ASSEMBLY, cable (order cable assembly, 376102R91) (unit B) Farmall 560 series, Serial Range: 501-36042
1шт.
12
HEADLIGHT ASSEMBLY, sealed beam (12 volt) (for components see list of parts under details of "Headlight")
2шт.
13
370387R91
CABLE
ASSEMBLY, headlight to ground Farmall 560 series -, Serial Range: 501-25617
2шт.
14
42915D
BLOCK
headlight cable junction Farmall 560 series -, Serial Range: 501-25617
1шт.
15
GENERATOR ASSEMBLY (for components see list of parts under details of "generator")
1шт.
16
REGULATOR ASSEMBLY, voltage (for components see list of parts under deatils of "Voltage Regulator")
1шт.
17
MOTOR ASSEMBLY, cranking (for components see list of parts under details of "Cranking Motor")
1шт.
19
372547R91
CABLE W/BOLT AND COVER ASSEMBLY, battery to solenoid switch (Aluminum) (gasoline) (optional with 374907R91) (unit A)
1шт.
19
374907R91
CABLE
W/BOLT AND COVER ASSEMBLY, battery to solenoid switch (Copper) (gasoline) (optional with 372547R91) (unit A)
1шт.
19
370388R91
CABLE
W/BOLT AND COVER ASSEMBLY, battery to solenoid switch (aluminum) (LP Gas) (optional with 374905R91) (unit A)
1шт.
19
374905R91
CABLE
W/BOLT AND COVER ASSEMBLY, battery to solenoid switch (Copper) (LP Gas) (optional with 370388R91) (unit A)
1шт.
20
370389R91
CABLE
STRAP W/BOLT ASSEMBLY, battery to ground, Farmall 560 series, Serial Range: 501-46658
1шт.
20
377995R91
CABLE
STRAP W/BOLT ASSEMBLY, battery to ground, Farmall 560 series 46659 up
1шт.
21
370386R91
HARNESS
ASSEMBLY, rear light and breakaway connector socket cable
1шт.
23
REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination (for components see list of parts under details of "Combination Rear Light and Tail Light")
1шт.
24
363841R91
CABLE ASSEMBLY, lighting switch to junction block, Farmall 560 series -, Serial Range: 501-25617
1шт.
25
370394R91
CABLE
ASSEMBLY, battery to battery (unit B) Farmall 560 series -, Serial Range: 501-46660
1шт.
25
377994R91
CABLE
ASSEMBLY, battery to battery (unit B) Farmall 560 series- 46661 up
1шт.
26
370740R91
CLIP, rear light cable harness (on steering shaft support rear LH mounting bolt)
1шт.
28
383012R91
CABLE
W/BOLT AND COVER ASSEMBLY, battery to solenoid switch (unit B)
1шт.
33
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, cable harness (on valve cover bolt) (2 used on L.P. Gas Engine Tractors)
3шт.
33
362126R1
CLIP
cable harness (on center valve cover bolt) (L.P. Gas Engine Tractors)
1шт.
35
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, cable harness (on generator brace to generator flange mounting bolt)
1шт.
37
351913R1
CLIP, rear light cable harness (on rear light bracket upper mounting bolt, inside seat support)
1шт.
38
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, rear light cable (on rear light bracket upper mounting bolt)
1шт.
39
355097R1
CLIP, cable harness (on transmission gear shift lever housing RH front mounting bolt)
1шт.
42
CABLE, horn (dark green) (not serviced separately, order harness assembly)
1шт.
44
362126R1
CLIP
horn switch to horn cable (on tan housing upper LH mounting bolt)
1шт.
45
128157
GROMMET,3/8" ID x 27/32" x .062", Diag Cut
horn switch to horn cable
1шт.
46
373611R91
IGNITION SWITCH
SWITCH, glow plug (less cap) (for components see list of parts under details of "Glow Plug Switch")
1шт.
50
CABLE, charge indicator to regulator "Bat" terminal (grey) (order harness assembly)
1шт.
51
CABLE, regulator "L" terminal to fuse holder connector (light green) (order harness assembly)
1шт.
52
CABLE, regulator "Gen" terminal to generator "A" terminal (light blue) (order harness assembly)
1шт.
53
CABLE, regulator "F" terminal to generator "F" terminal (yellow) (order harness assembly)
1шт.
54
CABLE - push button switch to solenoid switch (orange) (order harness assembly)
1шт.
55
CABLE, push button switch junction to ignition coil resistor (black) (order harness assembly) (unit A)
1шт.
56
CABLE, coil positive terminal to solenoid switch "R" terminal (natural) (order harness assembly) (unit A)
1шт.
57
CABLE ASSEMBLY, fuel gauge sending unit to fuel gauge (dark blue) (order harness assembly)
1шт.
58
CABLE, glow plug switch to junction block (order cable assembly, 375066R91 and harness, 376102R91) (unit B) Farmall 560 series-, Serial Range: 501-36042
1шт.
59
CABLE, ground to breakaway connector socket (pink) (order rear light cable harness assembly)
1шт.
60
CABLE, lighting switch, rear light terminal, to line connector (red) (order rear light cable harness assembly)
1шт.
61
CABLE, lighting switch, tail light terminal, to breakaway connector (black) (order rear light cable harness assembly)
1шт.
64
372377R11
BRACKET ASSEMBLY, rear light support (Tractors with vertical acting seat)
1шт.
66
370395R1
CABLE ASSEMBLY, glow plug meter to charge indicator Farmall 560 series -, Serial Range: 501-36042
1шт.
67
358986R1
CABLE CLIP
CLIP, cable harness (on upper LH rear of cylinder head)
1шт.
68
263717R91
CLIP
cable harness (on fuel filter bracket upper LH mounting bolt)
1шт.
69
372545R91
CABLE ASSEMBLY, lighting switch to headlight junction Farmall 560 series - 25618 up
1шт.
70
366460R1
CABLE CLIP
CLIP (on steering shaft housing RH rear mounting bolt) Farmall 560 series - 25618 up
1шт.
71
374490R91
CABLE
ASSEMBLY, headlight to ground junction Farmall 560 series - 25618 up
1шт.
74
CABLE, connector to glow plug junction block (order Harness, 376102R91) (2 for unit B) Farmall 560 series - 36043 up
1шт.
