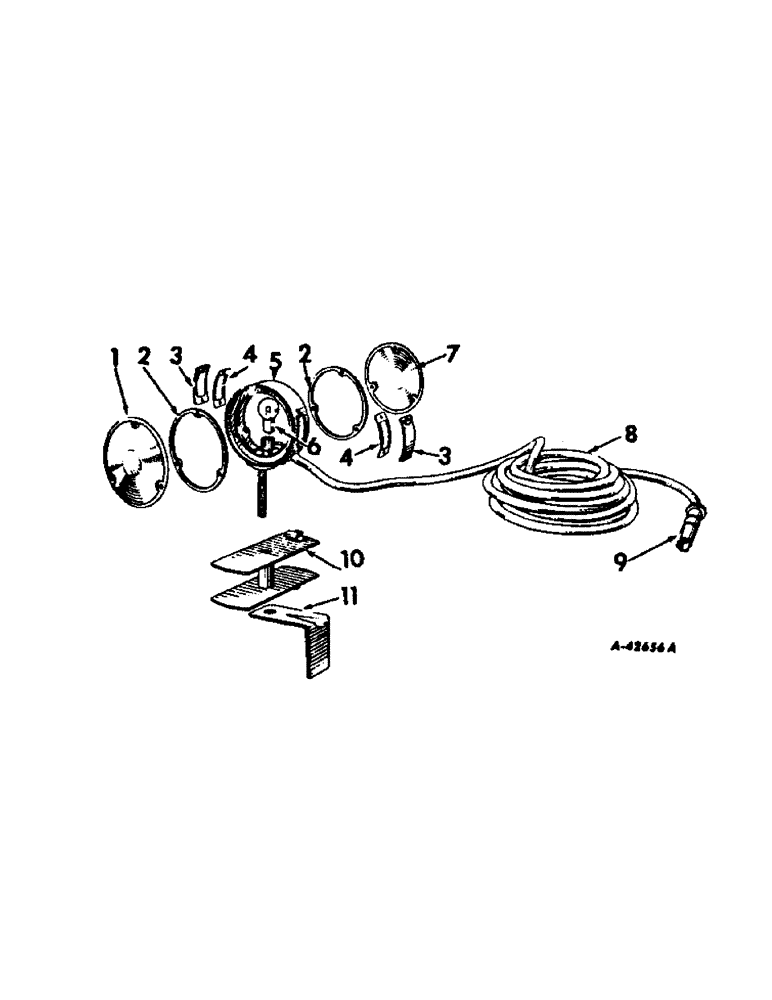

Запчасти Case IH 560 (108[A]) - ELECTRICAL SYSTEM, SAFETY LIGHT (06) - ELECTRICAL SYSTEMS

1

120578R1

LENS, safety light (red)

1шт.

2

120576R1

GASKET, safety light lens

2шт.

SCREW, no. 6 x 1/2" cd-pltd. slt-rd-hd. mach.

3шт.

3

365754R1

LENS, safety light outlook

2шт.

SCREW, no. 6 x 5/16" slt-rd-hd. tapping cd-pltd.

4шт.

4

365755R1

GASKET, safety light outlook lens

2шт.

5

BODY, safety light (not serviced separately, order safety light assembly)

1шт.

NUT, 7/16" cd-pltd.

1шт.

WASHER, 7/16" cd-pltd. lock

1шт.

6

142456

BULB

LAMP, no. 1141 (12 volt)

1шт.

7

120577R1

LENS, safety light (amber)

1шт.

SCREW, no. 6 x 1/2" slt-rd-hd. cd-pltd.

3шт.

8

365752R91

CABLE, safety light (22 ft.)

1шт.

9

364559R91

PLUG

break-away connector socket (for use with 21/64" OD cable)

1шт.

10

365753R91

SPOOL ASSEMBLY, safety light

1шт.

11

365756R1

BRACKET, safety light mounting

1шт.
