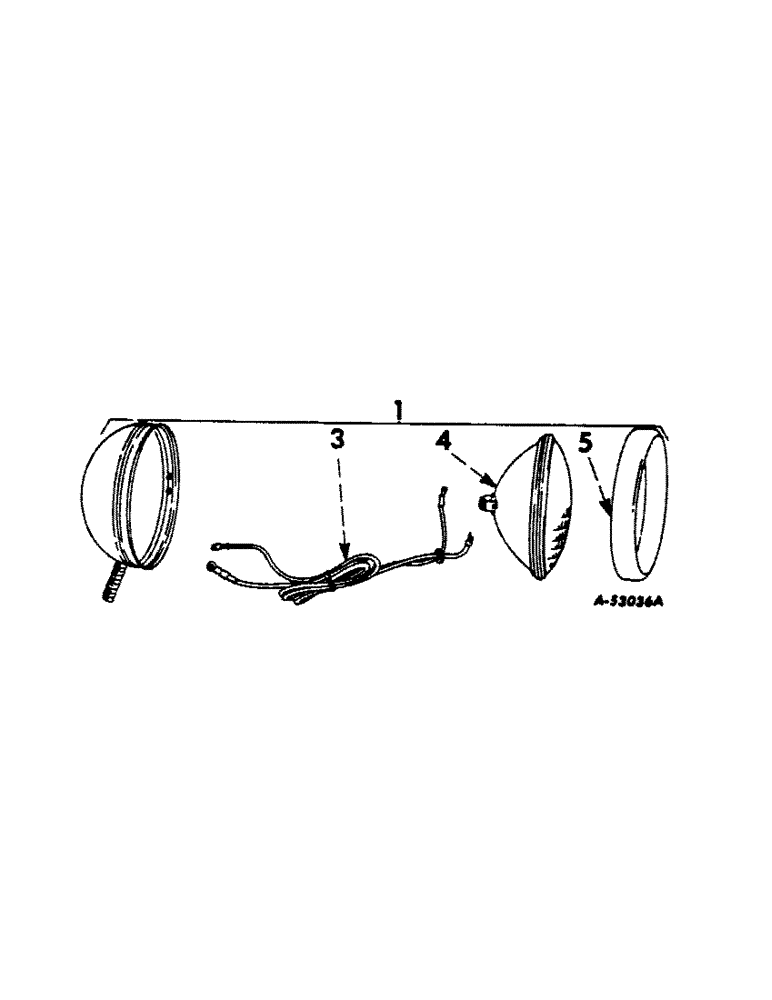

Запчасти Case IH 560 (107) - ELECTRICAL SYSTEM, HEADLIGHTS, FARMALL 560 SERIES (06) - ELECTRICAL SYSTEMS

1

370245R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam (12 volt) (guide) (optional with 374210R91) (order headlight, 377101R91 and cable, 381182R91) Farmall 560 series, Serial Range: 501-25617

2шт.

1

374210R91

HEADLIGHT

ASSEMBLY, sealed beam (12 volt) (dietz) (optional with 370245R91) (order headlight, 377101R91 and cable, 381182R91) Farmall 560 series, Serial Range: 501-25617

2шт.

1

374486R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam (12 volt) (order headlight, 377101R91 and cable, 381182R91) Farmall 560 series, 25618 up

2шт.

1

377101R91

LIGHT

HEADLIGHT ASSEMBLY, sealed beam (12 volt) (only serviceable items is sealed beam unit, 371443R91)

2шт.

3

371446R91

WIRE ASSEMBLY, dietz (used with headlight, 374210R91)

1шт.

3

374489R91

WIRE ASSEMBLY, dietz (used with headlight, 374487R91)

1шт.

3

371454R91

WIRE ASSEMBLY, guide (used with headlight, 370245R91)

1шт.

3

374488R91

WIRE ASSEMBLY, guide (used with headlight, 374486R91)

1шт.

4

371443R91

LAMP BASE

UNIT, sealed beam, 12 volt

1шт.

5

371444R91

BEZEL

MOULDING ASSEMBLY, dietz

1шт.

365697R1

NUT, moulding screw

1шт.

132489

SCREW, 8-32 x 1-1/4" slt-fil-hd. mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

5

371445R91

MOLDING

MOULDING ASSEMBLY, guide

1шт.

53526D

SCREW

moulding

1шт.

381182R91

CABLE ASSY.

CABLE ASSEMBLY, headlight (used with headlight, 377101R91)

1шт.
