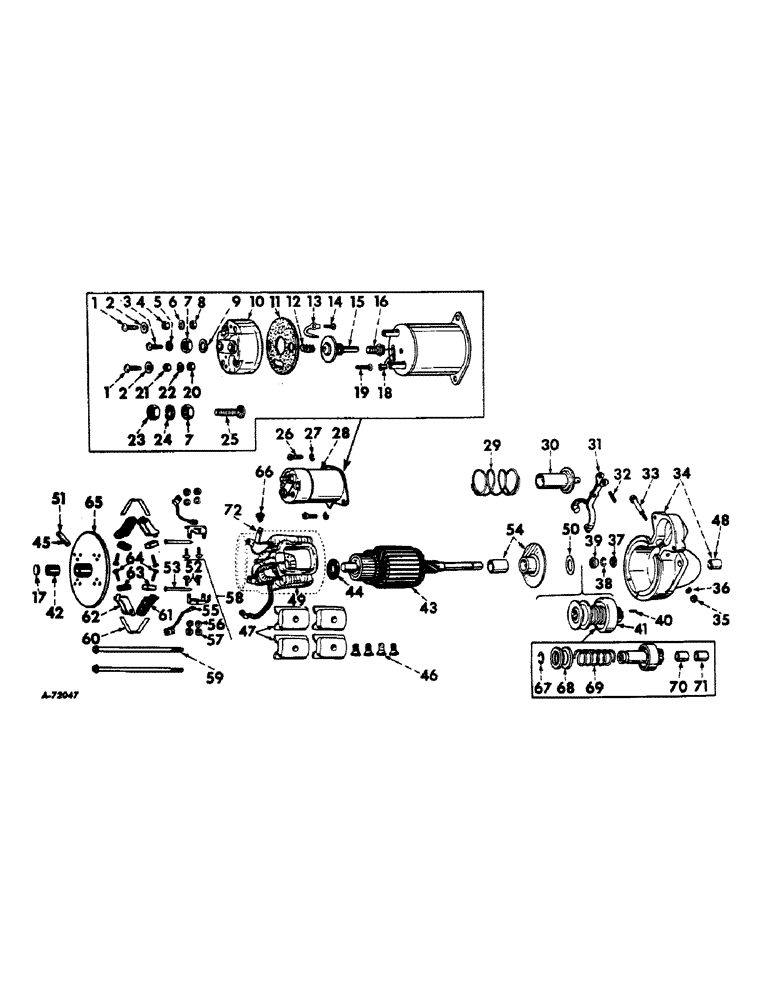

Запчасти Case IH 560 (100) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, L.P. GAS ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1107543

STARTING MOTOR

MOTOR ASSEMBLY, cranking (378335R91) (12 volt)

1шт.

104189A1R

REMAN-STARTER

10Mt With Mounted -- Delco 1107229, 1107444 And 1108299

1шт.

104189A1C

CORE-STARTER

Return Number

1шт.

104204A1R

REMAN-STARTER

25MT Heavy Duty ---- Delco 1108657

1шт.

104204A1C

CORE-STARTER

Return Number

1шт.

1

132903

ADAPTER

SCREW, cover attaching

2шт.

2

1923935

WASHER, cover attaching screw

2шт.

3

1949653

SPARE PART SCREW, connector, Serial Range: attaching-swithc

1шт.

4

453284

NUT,#10-32

NUT, terminal (no. 10 NF)

1шт.

5

274545

TUBE,4.5" Length

WASHER, connector attaching screw lock

1шт.

6

453288

WASHER, terminal lock

1шт.

7

280136

NUT,3/8"-16, G8

NUT, , Terminal 3/8"-16, G8

2шт.

8

1945161

NUT

SPARE PART NUT, w/washer assembly, terminal

1шт.

9

1949012

WASHER, insulating terminal

2шт.

10

1935643

SPARE PART COVER, switch

1шт.

11

1950070

SPARE PART GASKET, cover

1шт.

12

1853342

SPRING

SPRING, return

1шт.

13

1935645

HALF BLADE

BLADE, contact

1шт.

14

1935644

STUD, terminal (no. 10 NF)

1шт.

15

1952450

CONTACT

CONTACT, assembly

1шт.

16

1949325

STUD, terminal

1шт.

17

810819

PLUG

PLUG, end

1шт.

18

1937381

SPARE PART CLIPS, terminal

1шт.

19

1837533

STUD, terminal

1шт.

20

1940361

ARTICULATION

NUT, w/washer assembly, terminal

1шт.

21

453996

NUT,#8-32

NUT, terminal (no. 8)

1шт.

22

1915334

LOCK WASHER

WASHER, terminal lock

1шт.

23

280136

NUT,3/8"-16, G8

NUT, , Terminal 3/8"-16, G8

1шт.

24

453290

LOCK WASHER

WASHER, terminal lock (3/8")

1шт.

25

1927344

EYE

STUD, terminal

1шт.

26

132255

SPARE PART SCREW, switch mounting Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

27

1869533

WASHER, switch mounting screw lock

2шт.

28

1114297

IGNITION SWITCH

SWITCH ASSEMBLY, solenoid

1шт.

29

1932208

SPRING

SPRING, plunger return

1шт.

30

1953041

PLUNGER

PLUNGER, solenoid switch

1шт.

31

1932205

LEVER

LEVER, shift

1шт.

32

455106

PIN

PIN, plunger to shift lever attaching

1шт.

33

1932197

SCREW

SCREW, shift lever

1шт.

34

1950306

HOUSING

HOUSING ASSEMBLY, drive end, composed of (1) bushing 1862383, (1) housing (NSS), (1) plug 810819, (1) wick 1909560

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

NUT, , Shift lever screw 5/16"-18, G5

1шт.

36

1953479

WASHER, shift lever stud lock

1шт.

37

1928023

WASHER

COLLAR, drive end spacing

1шт.

38

1928022

SNAP RING

RING, pinion stop drive end

1шт.

39

1928021

COLLAR

COLLAR, pinion stop drive end

1шт.

40

809593

PIN

PIN, drive end dowel

1шт.

41

1939109

PINION

DRIVE ASSEMBLY, motor

1шт.

42

1867610

BUSHING

BUSHING, commutator end

1шт.

43

1947296

ARMATURE

ARMATURE

1шт.

44

833602

WASHER

WASHER, commutator end packing

1шт.

45

802694

NOZZLE

WICK, end frame

1шт.

46

1843646

SCREW

SCREW, pole shoe

8шт.

47

1887021

SPARE PART SHOE, pole

4шт.

48

1862383

BUSHING

BUSHING, drive end

1шт.

49

1956384

COIL

FIELD COIL ASSEMBLY

1шт.

50

R15043

WASHER

WASHER, between center bearing and motor drive

1шт.

51

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

end frame pipe

1шт.

52

187463

BUSHING,35.09mm ID x 44.5mm OD x 60.33mm L

SCREW, support attaching

4шт.

53

1926600

PIN

PIN, support attaching

2шт.

54

1938594

LARGE PLATE

PLATE, LARGE PLATE ASSEMBLY, center bearing

1шт.

1904370

AXLE

center plate

2шт.

1880781

WASHER

WASHER, center plate screw

2шт.

55

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

56

120217

LOCK WASHER,#10

WASHER, LOCK, , Support attaching screw #10

4шт.

57

120361

NUT,Hex Mach Screw, #10 - 24

NUT, , Support attaching screw #10-24

4шт.

58

1928015

BRACKET

KIT, brush holder support

2шт.

59

1955957

BOLT

BOLT, thru

2шт.

60

1926622

VALVE SPRING

SPRING, brush

4шт.

61

1938587

BRUSH HOLDER

HOLDER, brush insulated

2шт.

62

1926617

BRUSH HOLDER

HOLDER, brush ground

2шт.

63

1946434

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

64

1947695

SCREW

SCREW, brush attaching

4шт.

9415585

SPARE PART WASHER, brush attaching screw

4шт.

65

1940385

FUNNEL

FRAME ASSEMBLY, commutator end, composed of (1) bushing 1867610, (1) frame (NSS), (1) plug 125947, (1) plug 810819, (1) wick 802694

1шт.

66

1955946

GROMMET

GROMMET, lead

1шт.

67

37521

PIPE

RING, snap

1шт.

68

1838436

COLLAR, motor drive

1шт.

69

1931477

SPARE PART SPRING, motor drive

1шт.

70

37522

PIPE

BUSHING, split steel

1шт.

71

1873796

BUSHING

BUSHING, oil-less

2шт.

72

1955947

CONNECTOR, field, Serial Range: coil-switch

1шт.

453468

SPARE PART SCREW, connector to field lead attaching

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, , Connector screw #10

1шт.

1952427

GASKET

GASKET, solenoid switch

1шт.
