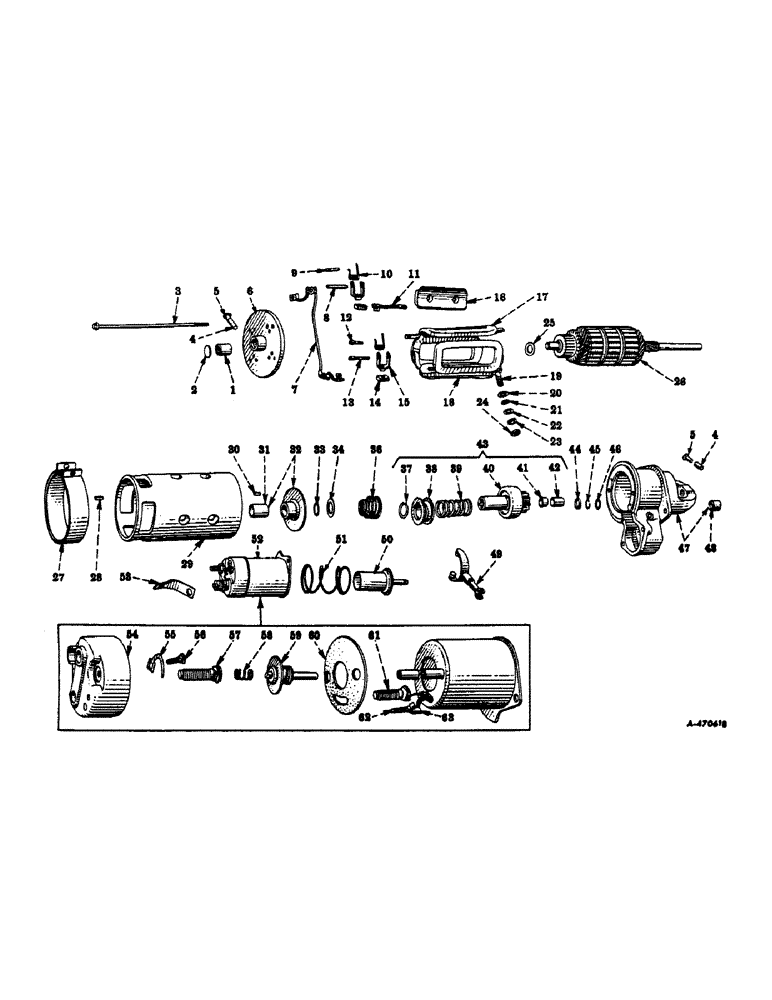

Запчасти Case IH 560 (098) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, L.P. GAS ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
104189A1R
REMAN-STARTER
10Mt With Mounted -- Delco 1107229, 1107444 And 1108299
1шт.
104189A1C
CORE-STARTER
Return Number
1шт.
104204A1R
REMAN-STARTER
25Mt Heavy Duty ---- Delco 1108657
1шт.
104204A1C
CORE-STARTER
Return Number
1шт.
1
1867610
BUSHING
BUSHING, commutator end
1шт.
2
810819
PLUG
PLUG, end
1шт.
3
1887034
BOLT, thru
2шт.
*
WASHER, 1/4" cd-pltd. lock
2шт.
4
802694
NOZZLE
WICK, commutator or drive end frame
2шт.
5
114998
OILER ASSEMBLY, commutator or drive end
2шт.
6
1864530
FRAME
FRAME ASSEMBLY, commutator end, composed of (1) bushing 1867610, (1) frame (NSS), (1) oiler 114998, (1) plug 810819, (1) pin 809062, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) wick 802694
1шт.
7
819362
CABLE
CABLE, brush and field connector
1шт.
*
SCREW, no. 10 NF x 1/4" slt-rd-hd. cd-pltd. mach.
2шт.
*
WASHER, no. 10 cd-pltd. loc
2шт.
8
817314
PIN, brush holder stop
2шт.
9
817313
PIN, brush holder hinge
2шт.
10
813521
VALVE SPRING
SPRING, brush
4шт.
11
813554
CABLE
CABLE, brush ground
2шт.
1929443
SCREW, brush ground cable
2шт.
*
WASHER, no. 8 cd-pltd. lock
2шт.
12
812015
PIN
PIN, brush holder stop
2шт.
13
812016
PIN
PIN, brush holder hinge
2шт.
14
1886643
BRUSH
BRUSH
4шт.
*
SCREW, no. 6 x 1/2" slt-rd-hd. cd-pltd. mach.
4шт.
*
WASHER, no. 6 cd-pltd. lock
4шт.
15
810226
HOLDER
HOLDER, brush
4шт.
16
1887021
SPARE PART SHOE, pole
4шт.
1881869
SCREW
SCREW, pole shoe
8шт.
17
1935237
SPARE PART COIL, lower field (2 coils)
1шт.
18
1935235
SPARE PART COIL ASSEMBLY, upper field (2 coils)
1шт.
19
1848837
STUD
STUD, terminal
1шт.
20
1861076
WASHER
WASHER, terminal stud insulating (25/64" OD)
2шт.
21
1904669
WASHER
WASHER, terminal stud insulating (9/16" OD)
2шт.
22
812622
WASHER
WASHER, terminal stud, plain
1шт.
23
120381
WASHER
WASHER, 3/8" cd-pltd. lock
2шт.
24
805258
NUT
NUT, terminal stud
2шт.
25
818265
WASHER
WASHER, commutator end space (unit A)
1шт.
25
833602
WASHER
WASHER, commutator end space (unit B)
1шт.
26
1939106
ARMATURE
ARMATURE, (unit A)
1шт.
26
1947296
ARMATURE
ARMATURE, (unit B)
1шт.
27
1886923
BAND
BAND ASSEMBLY, cover
1шт.
*
NUT, no. 10 NF cd-pltd.
1шт.
*
SCREW, no. 10 NF x 1-1/4" slt-rd-hd. cd-pltd. mach.
1шт.
28
809062
SPARE PART PIN, commutator end frame dowel
1шт.
29
FRAME, (not serviced separately)
1шт.
30
809593
PIN
PIN, drive end dowel
1шт.
31
1938596
BUSHING
BUSHING, center bearing
1шт.
32
1938594
LARGE PLATE
PLATE, LARGE PLATE ASSEMBLY, center bearing
1шт.
*
SCREW, no. 10 NF x 3/8" slt-rd-hd. cd-pltd. mach.
2шт.
*
1880781
WASHER
WASHER, center bearing screw
1шт.
33
1939111
SPARE PART RING, motor drive assist spring retainer
1шт.
34
1881771
WASHER, retainer motor drive assist spring
1шт.
36
1932209
SEAL
SPRING, motor drive assist
1шт.
37
37521
PIPE
WIRE, motor drive lock
1шт.
38
1838436
COLLAR, motor drive
1шт.
39
1931477
SPARE PART SPRING, motor drive
1шт.
40
GEAR AND SHAFT ASSEMBLY, (9-T) (not serviced separately, order drive assembly)
1шт.
41
37522
PIPE
BUSHING, split motor drive
1шт.
42
1873796
BUSHING
BUSHING, oil-less motor drive
1шт.
43
1939109
PINION
DRIVE ASSEMBLY, motor (unit A)
1шт.
43
1947289
DRIVE
DRIVE ASSEMBLY, motor (unit B), composed of (1) bushing 37522, (2) bushing 1873796, (1) collar 1838436, (1) gear and shaft (NSS), (1) spring 1931477, (1) wire 37521
1шт.
44
1928021
COLLAR
COLLARE, pinion stop
1шт.
45
1928022
SNAP RING
RING, pinion stop retainer
1шт.
46
1928023
WASHER
WASHER, drive end space
1шт.
47
1939104
SPARE PART HOUSING, w/bushing, 1862383, oiler, 114998 and wick, 802694 assembly, drive (unit A)
1шт.
47
1947299
SPARE PART HOUSING, w/bushing, 1862383 oiler, 114998 and wick, 802694 assembly, drive (unit B)
1шт.
48
1862383
BUSHING
BUSHING, drive housing
1шт.
49
1932205
LEVER
LEVER, shift
1шт.
9635082
NUT,5/16" - 18, Gr 5
NUT, , Shift lever screw 5/16"-18, G5
1шт.
1932197
SCREW
SCREW, shift lever
1шт.
*
WASHER, 5/16" cd-pltd. lock
1шт.
50
1939113
INSERT
PLUNGER, solenoid switch (unit A)
1шт.
1932204
PIN
PIN, shift lever to switch plunger
1шт.
455106
PIN
PIN, shift lever to switch plunger
1шт.
51
1932208
SPRING
SPRING, plunger return
1шт.
52
1119946
SWITCH
SWITCH ASSEMBLY, solenoid (unit A)
1шт.
52
1114295
SWITCH
SWITCH ASSEMBLY, solenoid (unit B)
1шт.
*
SCREW, 1/4 x 1/2" slt-fil-hd. cd-pltd. mach.
2шт.
*
WASHER, 1/4" cd-pltd. lock
2шт.
53
1853307
CONNECTOR, solenoid switch (unit A)
1шт.
53
1845937
CONNECTOR, solenoid switch (unit B)
1шт.
54
1935643
SPARE PART COVER, solenoid switch
1шт.
*
SCREW, no. 10 NF x 7/16" slt-rd-hd. cd-pltd. mach.
2шт.
1923935
WASHER, cover attaching screw
2шт.
55
1935645
HALF BLADE
CONTACT, switch terminal
1шт.
56
1935644
STUD, terminal (no. 10 NF x 35/64" long)
1шт.
453284
NUT,#10-32
NUT, no. 10 NF
1шт.
1945161
NUT
SPARE PART NUT, w/washer, terminal stud sealing
1шт.
453288
WASHER, terminal lock
1шт.
57
1927344
EYE
STUD, long terminal (3/8")
1шт.
280136
NUT,3/8"-16, G8
NUT, , Terminal stud (1/4" thick) 3/8"-16, G8
1шт.
280136
NUT,3/8"-16, G8
NUT, , Terminal stud (5/32" thick) 3/8"-16, G8
1шт.
1945124
WASHER, terminal stud sealing
1шт.
453290
LOCK WASHER
WASHER, terminal lock
1шт.
58
1853342
SPRING
SPRING, contact return
1шт.
59
1932243
CONTACT
CONTACT ASSEMBLY, solenoid
1шт.
60
1932224
SPARE PART GASKET, cover
1шт.
61
1931814
SPARE PART STUD, short terminal
1шт.
280136
NUT,3/8"-16, G8
NUT, , Terminal stud (5/32" thick) 3/8"-16, G8
1шт.
1949012
WASHER, terminal stud sealing
1шт.
62
1837533
STUD, long terminal (no. 8 x 21/32" long)
1шт.
453996
NUT,#8-32
NUT, terminal stud
1шт.
1940361
ARTICULATION
NUT, w/washer, terminal stud sealing
1шт.
1904615
RING
WASHER, terminal stud lock
1шт.
63
1937381
SPARE PART CLIP, terminal
1шт.
1948573
GASKET
GASKET, solenoid switch
1шт.
Выбрано товаров: 107
