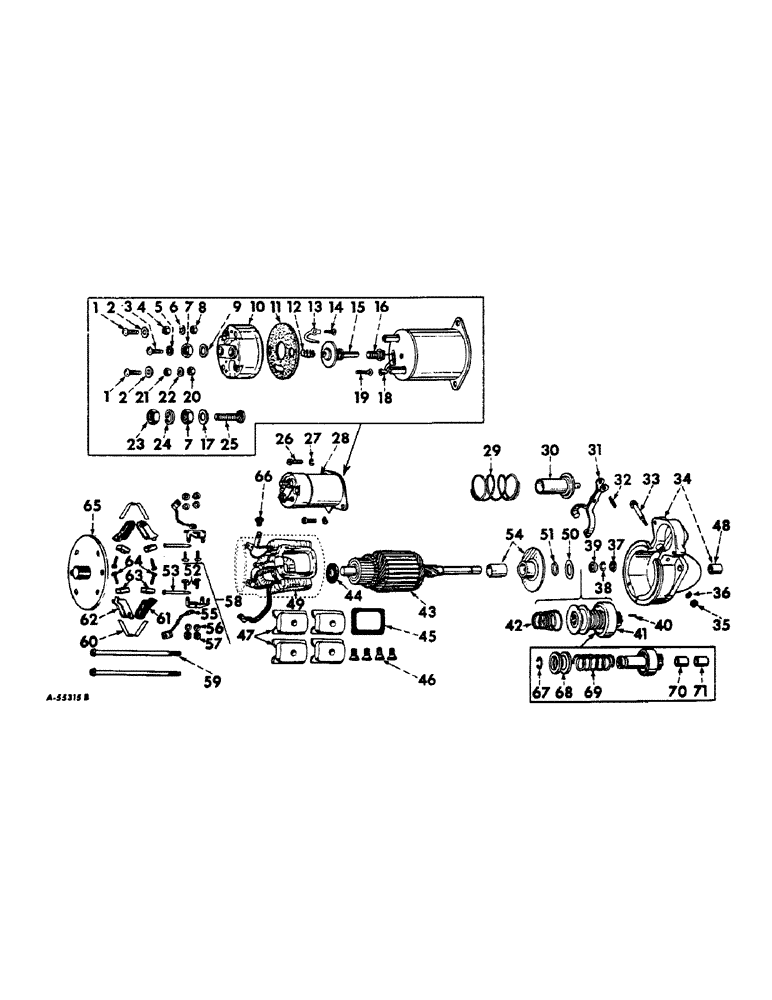

Запчасти Case IH 560 (096) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

104189A1R

REMAN-STARTER

10MT WITH MOUNTED -- DELCO 1107229, 1107444 AND 1108299

1шт.

104189A1C

CORE-STARTER

Return Number

1шт.

1

132903

ADAPTER

SCREW, cover attaching

2шт.

2

1923935

WASHER, cover attaching screw

2шт.

3

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

field lead attaching to switch

1шт.

4

453284

NUT,#10-32

terminal (no. 10 NF)

1шт.

5

274545

TUBE,4.5" Length

WASHER, field lead attaching screw lock

1шт.

6

453288

WASHER, terminal lock

1шт.

7

280136

NUT,3/8"-16, G8

Terminal 3/8"-16, G8

2шт.

8

1945161

NUT

w/washer assembly, terminal

1шт.

9

1949012

WASHER, insulating terminal

1шт.

10

1932249

COVER, switch (unit A)

1шт.

10

1935643

COVER, switch (unit B)

1шт.

11

1932224

GASKET, cover

1шт.

12

1853342

SPRING

return

1шт.

13

19323932

BLADE, contact (unit A)

1шт.

13

1935645

HALF BLADE

BLADE, contact (unit B)

1шт.

14

1935644

STUD, terminal (no. 10 NF)

1шт.

15

1912059

CONTACT

assembly (unit A)

1шт.

15

1932243

CONTACT

assembly (unit B)

1шт.

16

1932242

STUD, terminal

1шт.

17

1945124

WASHER, terminal sealing

1шт.

18

1926958

CLIP, terminal (unit A)

1шт.

18

1937381

CLIP, termianl (unit B)

1шт.

19

1837533

STUD, terminal

1шт.

20

1940361

ARTICULATION

NUT, w/washer assembly, insulating terminal

1шт.

21

453996

NUT,#8-32

terminal (no. 8)

1шт.

22

1904615

RING

WASHER, terminal lock

1шт.

23

280136

NUT,3/8"-16, G8

Terminal 3/8"-16, G8

1шт.

24

453290

LOCK WASHER

WASHER, terminal lock (3/8")

1шт.

25

1927344

EYE

STUD, terminal

1шт.

26

132255

SCREW, switch mounting Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

27

1869533

WASHER, switch mounting screw lock

2шт.

28

1119923

SWITCH

ASSEMBLY, solenoid (unit A)

1шт.

28

1114281

SWITCH

ASSEMBLY, solenoid (unit B)

1шт.

29

1932208

SPRING

plunger return

1шт.

30

1939113

INSERT

PLUNGER, solenoid switch (unit A)

1шт.

30

1932200

RELAY

PLUNGER, solenoid switch (unit B)

1шт.

31

1932205

LEVER

shift

1шт.

32

455106

PIN

plunger to shift lever attaching

1шт.

33

1932197

SCREW

STUD, shift lever

1шт.

34

1943501

HOUSING ASSEMBLY, drive end (unit A)

1шт.

34

1947300

HOUSING

ASSEMBLY, drive end (unit B)

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud 5/16"-18, G5

1шт.

36

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

1867899

COLLAR, drive end spacing (unit A)

1шт.

37

1928023

WASHER

COLLAR, drive end spacing (unit B)

1шт.

38

1928022

SNAP RING

RING, pinion stop retainer drive end

1шт.

39

1928021

COLLAR

pinion stop drive end

1шт.

40

809593

PIN

drive end dowel

1шт.

41

1939109

PINION

DRIVE ASSEMBLY, motor (unit A)

1шт.

41

1947289

DRIVE

ASSEMBLY, motor (unit B)

1шт.

42

1932209

SEAL

SPRING, shift lever assist

1шт.

43

1943506

ARMATURE (unit A)

1шт.

43

1947353

FRAME

ARMATURE (unit B)

1шт.

44

818265

WASHER

commutator end brake (unit A)

1шт.

44

833602

WASHER

commutator end brake (unit B)

1шт.

45

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

46

1843646

SCREW

pole shoe

4шт.

47

1931129

SHOE

pole

4шт.

48

1839345

BUSHING

drive end housing

1шт.

49

1943504

COIL

FIELD COIL ASSEMBLY

1шт.

50

1881771

WASHER, between center bearing and motor drive (unit A)

1шт.

50

R15043

WASHER

between center bearing and motor drive (unit B)

1шт.

51

1939111

RING, retainer, between center bearing and motor drive

1шт.

52

187643

SCREW, support attaching

4шт.

53

1926600

PIN

support attaching

2шт.

54

1938594

LARGE PLATE

PLATE ASSEMBLY, center bearing (unit A)

1шт.

54

820149

PLATE

ASSEMBLY, center bearing (unit B)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, center plate

2шт.

1880781

WASHER

center plate attaching screw lock

2шт.

55

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

56

120217

LOCK WASHER,#10

WASHER, LOCK, , Support attaching screw #10

4шт.

57

120361

NUT,Hex Mach Screw, #10 - 24

Support attaching screw #10-24

4шт.

58

1928015

BRACKET

KIT, brush holder support

2шт.

59

1926625

BOLT

thru

2шт.

60

1926622

VALVE SPRING

SPRING, brush

2шт.

61

1938587

BRUSH HOLDER

HOLDER, brush insulated

2шт.

62

1926617

BRUSH HOLDER

HOLDER, brush ground

2шт.

63

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

64

274260

LOCK NUT

SCREW, brush attaching (unit A)

4шт.

64

1926648

SCREW, brush attaching (unit B)

4шт.

65

1928966

FRAME

commutator end

1шт.

66

1933765

GROMMET

lead

1шт.

67

37521

PIPE

RING, snap

1шт.

68

1838436

COLLAR, motor drive

1шт.

69

1931477

SPRING, motor drive

1шт.

70

37522

PIPE

BUSHING, split steel

1шт.

71

1873796

BUSHING

oil-less

2шт.

1948573

GASKET

solenoid switch

1шт.
