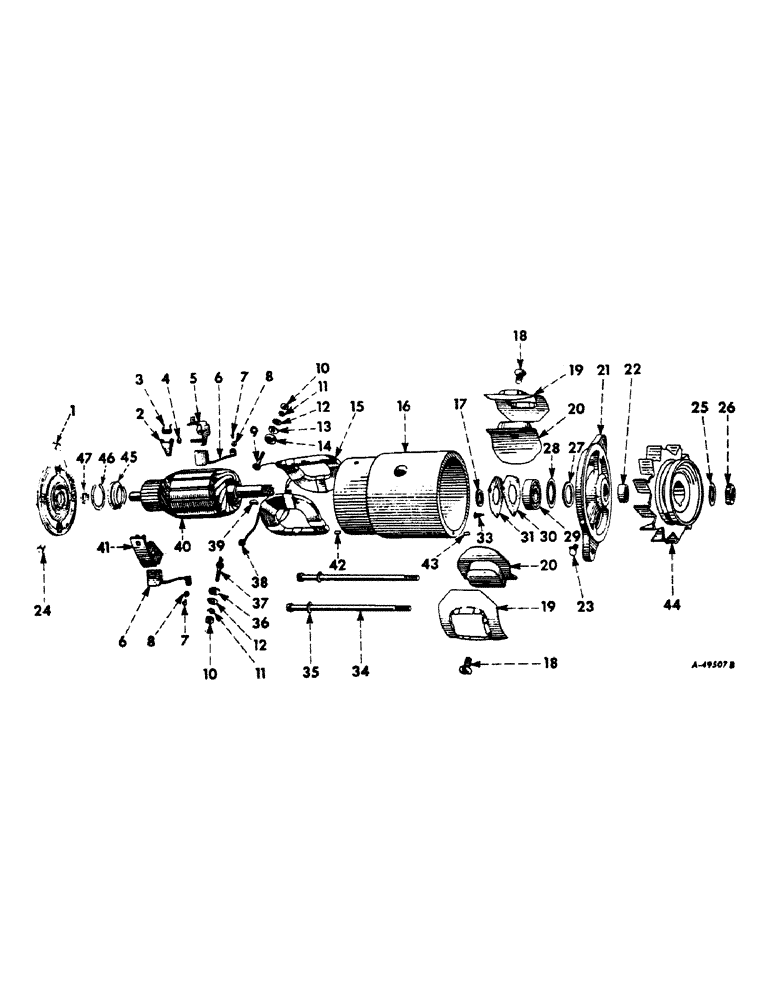

Запчасти Case IH 560 (092) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, REGULAR DUTY (06) - ELECTRICAL SYSTEMS

1

1927451

FUNNEL

FRAME, w/oiler, pin and wick assembly, commutator end (units A and B)

1шт.

1

1951512

HOUSING

FRAME ASSEMBLY, commutator end (units C and D), composed of (1) dowel 809062, (1) frame (NSS), (1) oiler 1880635, (1) oil seal 1945697, (1) retainer 1947337, (1) wick 1947350

1шт.

2

1878183

ARM

brush

2шт.

3

1916324

VALVE SPRING

SPRING, brush

2шт.

4

1904368

PIN

brush arm space

2шт.

5

1922288

HOLDER

brush ground

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd.

1шт.

132979

SCREW, no. 12 x 5/8" cd-pltd. slt-rd-hd. mach.

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd. lock

1шт.

6

1906970

BRUSH, COMMUTATOR

BRUSH, (units A and B)

2шт.

6

1932506

BRUSH, COMMUTATOR

BRUSH, (units C and D)

2шт.

804080

WICK

oiler (units A and B)

1шт.

7

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4" cd-pltd. slt-rd-hd. mach.

2шт.

8

1904377

HALF SHAFT

brush lead attaching screw lock

2шт.

9

1921860

STUD

terminal field

1шт.

10

121743

CHAIN,#12 - 24

no. 12 cd-pltd.

4шт.

11

1904661

LOCK WASHER

WASHER, field terminal stud lock

4шт.

12

1881409

WASHER

terminal stud

2шт.

13

1858753

WASHER

terminal stud insulating

1шт.

14

1885090

BUSHING

field terminal insulating

1шт.

15

1923625

COIL ASSY.

COIL ASSEMBLY, field (unit A)

1шт.

15

1944165

COIL

ASSEMBLY, field (unit B)

1шт.

16

(Not serviced separately)

1шт.

17

809945

BUSHING

WASHER, driven end space

1шт.

18

1843646

SCREW

pole shoe

2шт.

19

1914491

INSULATOR, field coil

2шт.

20

1914618

SHOE, pole

2шт.

21

1871693

FRAME, w/oiler, pin and wick assembly, drive end

1шт.

22

1858603

BUSHING

COLLAR, drive end space

1шт.

23

1880641

OILER

ASSEMBLY, drive end oiler wick

1шт.

24

1880635

OILER

ASSEMBLY, commutator end

1шт.

804080

WICK

oiler (units A and B)

1шт.

25

804000

WASHER, drive end shaft nut lock (units A and B)

1шт.

25

1941978

WASHER

drive end shaft nut lock (units C and D)

1шт.

26

1911324

NUT

drive end shaft

1шт.

27

809961

FELT

WASHER, drive end felt

1шт.

28

819104

WASHER

PLATE, drive end felt retainer

1шт.

29

907503

BEARING

BALL BEARING, drive end

1шт.

30

1912008

FELT

GASKET, drive end retainer plate

1шт.

31

1911263

LARGE PLATE

PLATE, drive end retainer

1шт.

33

1904370

AXLE

drive end retainer plate

3шт.

34

815018

BOLT, thru

2шт.

35

120638

LOCK WASHER

WASHER, thru bolt lock

2шт.

36

1921362

BUSHING

armature terminal insulating

1шт.

37

1921369

STUD

terminal armature

1шт.

38

200382

CLIP, Serial Range: terminal-brush

1шт.

39

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

40

817807

ARMATURE

1шт.

1927448

CUP, commutator end felt retainer (units A and B)

1шт.

1927447

WASHER, commutator end feld (units A and B)

1шт.

41

1922289

HOLDER

brush insulated

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd.

1шт.

132979

SCREW, no. 12 x 5/8" cd-pltd. slt-rd-hd. mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd. lock

1шт.

42

809062

PIN, commutator end dowel

1шт.

43

809593

PIN

drive end dowel

1шт.

44

1943516

PULLEY

FAN AND PULLEY ASSEMBLY, generator

1шт.

45

1953202

RETAINER, commutator end oil seal (units C and D)

1шт.

46

1947350

WICK

commutator end oil (units C and D)

1шт.

47

1945697

GUARD ASSY.

OIL SEAL, commutator end (units C and D)

1шт.
