Запчасти Case IH 560 (091) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

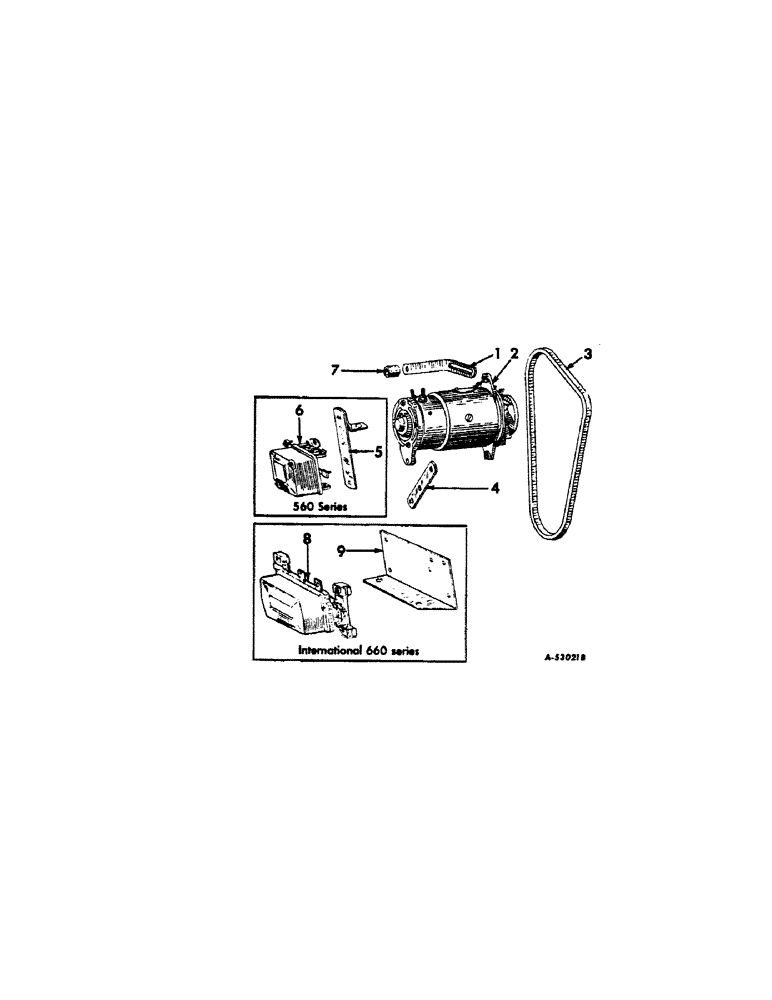

Схема запчастей Case IH 560 - (091) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
6
4
3
7
2
1
5
9
8

Артикул

Название

Примечание

Количество

1

367250R1

SPARE PART BRACE, generator (gasoline)

1шт.

*

SCREW, 3/8 x 2-3/4" hex-hd. cap

1шт.

*

WASHER, 3/8" lock

1шт.

1

371107R1

SUPPORT

BRACE, generator (L.P. gas)

1шт.

*

SCREW, 3/8 x 3-1/2" hex-hd. cap

1шт.

*

WASHER, 3/8" lock

1шт.

2

1100394

SPARE PART GENERATOR ASSEMBLY, (regular duty) (for components see list of parts under details of "generator") (369599R92)

1шт.

2

103814A1R

REMAN-GENERATOR

Generator

1шт.

2

103814A1C

CORE-GENERATOR

Return Number

1шт.

2

104019A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 25 ampere

1шт.

2

104019A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 25 ampere

1шт.

2

1100391

GENERATOR ASSEMBLY, (heavy duty) (for components see list of parts under details of "generator") (375053R91)

1шт.

2

104017A1R

REMAN-GENERATOR

Generator - HD

1шт.

2

104017A1C

CORE-GENERATOR

Return Number

1шт.

*

NUT, 5/16"

1шт.

*

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

*

SCREW, 5/16 x 1" hex-hd. cap

1шт.

*

SCREW, 5/16 x 1-1/8" hex-hd. cap

1шт.

*

WASHER, 5/16" lock

3шт.

280185R1

SPACER

WASHER, generator brace

1шт.

3

149635R1

BELT

BELT, generator and water pump

1шт.

4

367661R1

SPARE PART BRACKET, generator

1шт.

*

SCREW, 5/16 x 1" hex-hd. cap

2шт.

*

WASHER, 5/16" lock

2шт.

5

370141R11

SPARE PART BRACKET ASSEMBLY, voltage regulator mounting (gasoline only)

1шт.

5

371781R11

SPARE PART BRACKET ASSEMBLY, voltage regulator and filter mounting (L.P. gas) (illustrated with "fuel tank, supports and piping")

1шт.

6

1118999

REGULATOR

REGULATOR ASSEMBLY, voltage (for components see list of parts under details of "voltage regulator") (376122R91)

1шт.

*

SCREW, 1/4 NF x 1/2" hex-hd. cap

2шт.

*

WASHER, 1/4" lock

2шт.

7

371108R1

SPACER,3/8" Pipe x .844"

SPACER, generator brace (L.P. gas)

1шт.

8

1119241D

REGULATOR ASSEMBLY, voltage (regular duty) (for components see list of parts under details of "voltage regulator") (372651R91)

1шт.

8

1119270

REGULATOR

REGULATOR ASSEMBLY, voltage (heavy duty) (for components see list of parts under details of "voltage regulator") (375055R91)

1шт.

*

NUT, 1/4"

4шт.

*

SCREW, 1/4 x 1-1/4" hex-hd. cap

4шт.

9

372977R1

SPARE PART BRACKET, voltage regulator, Serial Range: 501-4285

1шт.

*

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

Выбрано товаров: 36
