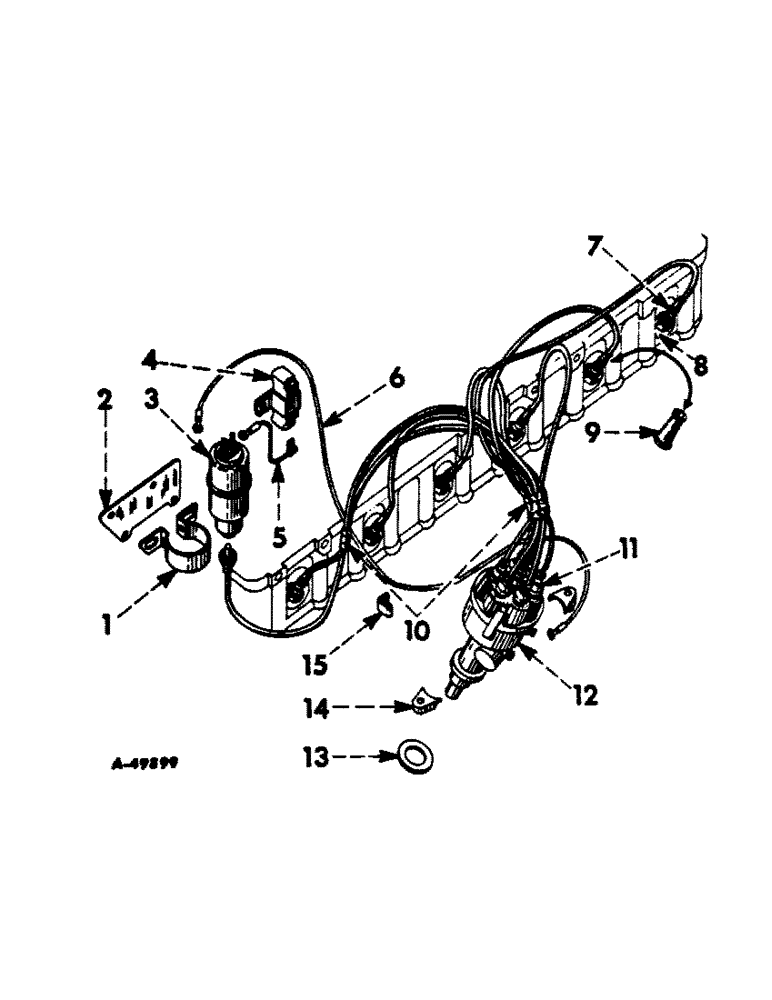

Запчасти Case IH 560 (089) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

358619R1

CLAMP, coil

1шт.

NUT, no. 10 NF cd-pltd. sq.

1шт.

SCREW, 5/16 x 1/2" hex-hd. cap

2шт.

SCREW, no. 10 NF x 1-1/4" slt-rd-hd. mach

1шт.

WASHER, 11/32x 11/16" x 16 ga.

2шт.

WASHER, no. 10 cd-pltd. lock

1шт.

2

370534R11

BRACKET ASSEMBLY, ignition coil

1шт.

SCREW, 7/16 x 1/2" cap

2шт.

3

368839R91

COIL

ASSEMBLY, ignition, 12R

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

368573R91

RESISTOR

ignition coil

1шт.

5

370594R91

CABLE ASSEMBLY, Serial Range: coil-resistor

1шт.

6

368267R91

CABLE

coil to distributor primary

1шт.

7

360943R91

SPARK PLUG

w/gasket, 37762H (light or moderate service) (Champion D-23)

6шт.

7

359277R91

SPARK PLUG, w/gasket, 37762H (light or moderate service) (Auto-Lite BT-10)

6шт.

7

371522R91

SPARK PLUG

w/gasket, 37762H (intermediate service) (Champion D-16)

6шт.

7

360942R91

SPARK PLUG

w/gasket, 37762H (normal service) (Champion 8 com.)

6шт.

7

353982R91

SPARK PLUG, w/gasket, 37762H (normal service) (AC-C85)

6шт.

7

359276R91

SPARK PLUG

w/gasket, 37762H (normal service) (Auto-Lite BT-8)

6шт.

7

361688R91

SPARK ARRESTER

SPARK PLUG, w/gasket, 37762H (severe service) (Champion D-9)

6шт.

7

353983R91

SPARK PLUG, w/gasket, 37762H (severe service) (AC-C83)

6шт.

7

359275R91

SPARK PLUG, w/gasket, 37762H (severe service) (Auto-Lite BT-4)

6шт.

7

361686R91

SPARK PLUG

w/gasket, 37762H (L.P. gas or extreme severe service) (Champion D-6)

6шт.

7

353986R91

SPARK PLUG

w/gasket, 37762H (L.P. gas or extreme severe service) (AC-C81)

6шт.

7

359274R91

SPARK PLUG, w/gasket, 37762H (L.P. gas or extreme severe service) (Auto-Lite BT-3)

6шт.

8

37762H

GASKET

spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal

6шт.

10

368270R91

CABLE

ASSEMBLY, spark plug, consists of six spark plug cables, coil to distributor cable and eight nipples, 251553R1

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.

12

367839R92

DISTRIBUTOR

ASSEMBLY, (gasoline) (for components see list of parts under details of "distributor") (560 series)

1шт.

12

371579R92

DISTRIBUTOR ASSEMBLY, (L.P. gas) (for components see list of parts under details of "distributor") (560 series)

1шт.

12

372867R92

DISTRIBUTOR

ASSEMBLY, (gasoline) (for components see list of parts under details of "distributor") (International 660)

1шт.

12

372986R91

DISTRIBUTOR

ASSEMBLY, (L.P. gas) (for components see list of parts under details of "distributor") (International 660)

1шт.

13

353936R2

GASKET

distributor

1шт.

14

353937R1

CLIP

CLAMP, distributor

2шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

15

370535R1

CLIP

coil to distributor cable

1шт.
