Запчасти Case IH 560 (065) - FUEL SYSTEM, FUEL STRAINER (02) - FUEL SYSTEM

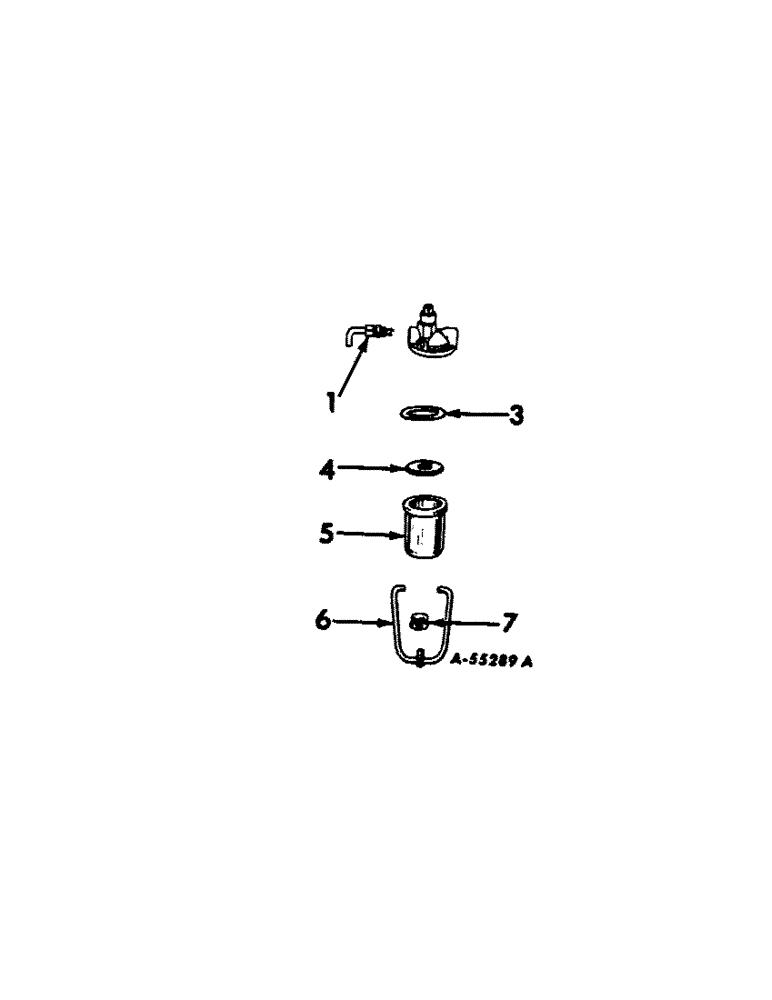

Схема запчастей Case IH 560 - (065) - FUEL SYSTEM, FUEL STRAINER (02) - FUEL SYSTEM
5
3
4
7
1
6

Артикул

Название

Примечание

Количество

370832R91

STRAINER ASSY.

STRAINER ASSEMBLY, (see note A) (also order elbow, 376539R91)

1шт.

370832R91GV

FUEL FILTER

Value, Fuel Strainer

1шт.

357718R91

STRAINER ASSY.

STRAINER ASSEMBLY, (see note B) (also order elbow, 376539R91)

1шт.

1

259403R91

COCK

STEM ASSEMBLY, strainer

1шт.

3

355888R2

GASKET

strainer

1шт.

4

13194D

STRAINER ASSY.

SCREEN, strainer

1шт.

5

58839D

BOWL

strainer (metal) (see note B)

1шт.

5

357957R1

BOWL

strainer (glass) (see note A)

1шт.

6

17564D

HOLDER

BAIL, strainer

1шт.

7

50061D

NUT

strainer

1шт.

222-503

TUBE NUT,1/2"-20

NUT, coupling (see note B)

2шт.

376539R91

ELBOW

w/o-ring, 361883R1 assembly, strainer (used only for service with above fuel strainers)

1шт.

Выбрано товаров: 12
