Запчасти Case IH 560 (064) - FUEL SYSTEM, VALVES, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

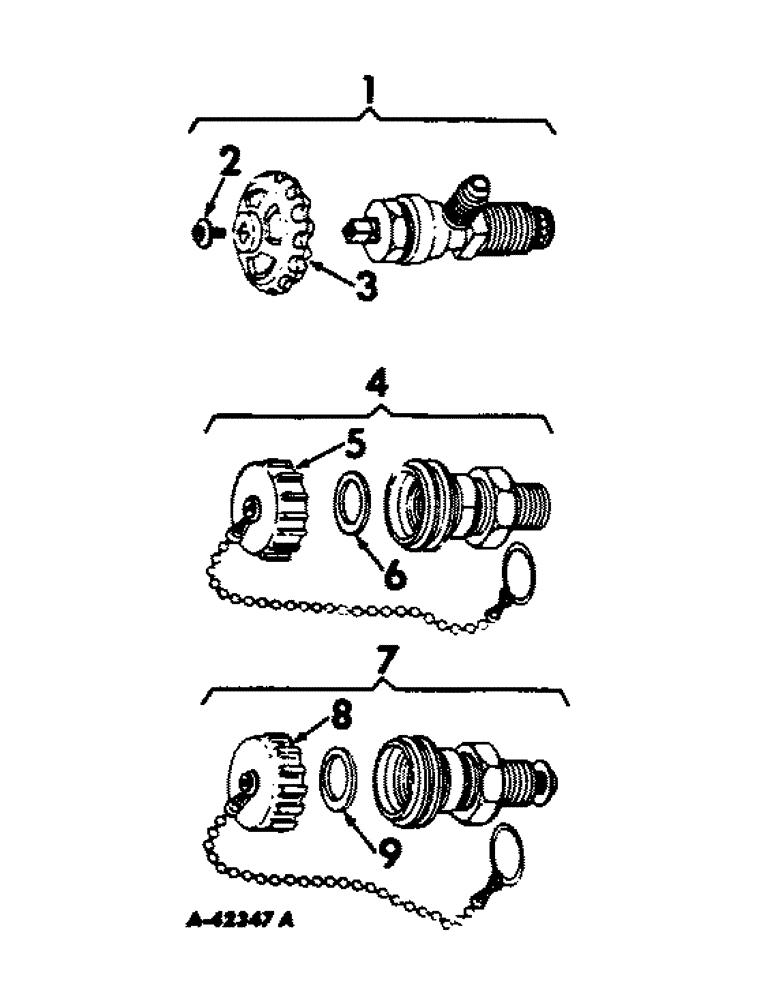

Схема запчастей Case IH 560 - (064) - FUEL SYSTEM, VALVES, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM
2
8
5
7
1
4
3
6
9

Артикул

Название

Примечание

Количество

1

109850R91

VALVE, w/excess flow check assembly, service

2шт.

2

369044R91

SCREW AND WASHER ASSEMBLY, handwheel

2шт.

3

369043R1

HANDWHEEL

2шт.

4

363688R91

VALVE ASSEMBLY, 3/4NPT filler (Bastian Blessing Co.) (optional with 376516R91)

1шт.

4

376516R91

VALVE ASSEMBLY, 3/4NPT filler (Fisher Governor Co.) (optional with 363688R91)

1шт.

5

369045R91

CAP AND CHAIN ASSEMBLY, valve (Bastian Blessing Co.)

1шт.

5

376521R91

CAP AND CHAIN ASSEMBLY, valve (Fisher Governor Co.)

1шт.

6

359825R1

WASHER, cap

1шт.

7

109567R91

VALVE, w/excess flow check and chain assembly, vapor return (Bastian Blessing Co.) (optional with 376517R91)

1шт.

7

376517R91

VALVE, w/excess flow check and chain assembly, vapor return (Fisher Governor Co.) (optional with 109567R91)

1шт.

8

369051R91

CAP AND CHAIN ASSEMBLY, valve (Bastian Blessing Co.)

1шт.

8

376519R91

CAP AND CHAIN ASSEMBLY, valve (Fisher Governor Co.)

1шт.

9

359815R1

WASHER, cap

1шт.

Выбрано товаров: 13
