Запчасти Case IH 560 (057) - FUEL SYSTEM, FUEL INJECTION PUMP, D282501 TO 26600 560 SERIES, D282501 TO 26055 INTERNATIONAL 660 (02) - FUEL SYSTEM

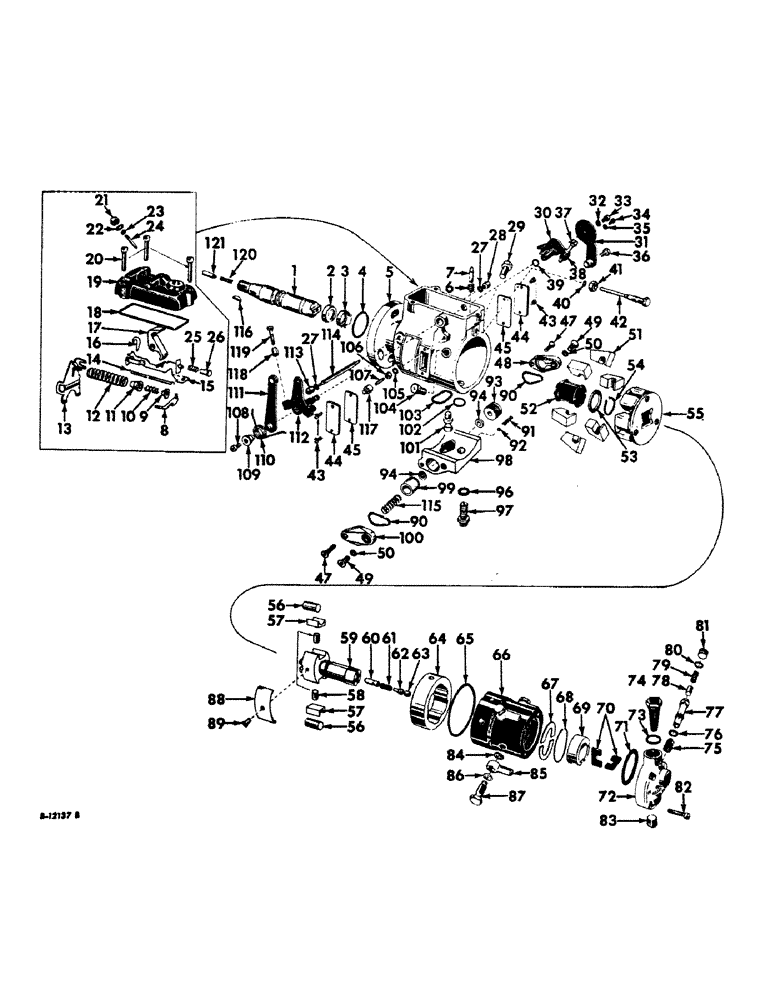

Схема запчастей Case IH 560 - (057) - FUEL SYSTEM, FUEL INJECTION PUMP, D282501 TO 26600 560 SERIES, D282501 TO 26055 INTERNATIONAL 660 (02) - FUEL SYSTEM
10
86
54
115
2
60
93
76
69
92
103
55
66
48
40
45
121
118
32
13
28
100
96
65
56
53
62
111
109
93
19
94
42
1
112
70
83
27
113
23
114
15
33
25
59
44
101
105
45
41
43
107
102
78
9
81
49
52
75
91
50
82
85
27
16
36
50
116
87
6
24
43
35
72
89
4
99
17
57
38
51
7
44
73
34
84
47
79
71
80
104
94
18
120
26
67
68
74
39
90
61
63
49
98
5
118
3
64
56
8
117
108
58
57
88
20
31
11
14
29
77
21
106
37
97
22
12
30
110
47

Артикул

Название

Примечание

Количество

278346R91

PUMP ASSEMBLY, injection (w/load advance and delivery valve) (see note) (order pump, 321199R91)

1шт.

1

304715R1

SHAFT

drive

1шт.

2

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

3

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

4

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

pilot tube

1шт.

5

304714R91

HOUSING, w/pilot

1шт.

6

304746R1

VALVE SPRING

SPRING, fuel metering valve

1шт.

313286R1

WASHER

metering valve spring

1шт.

7

313673R1

LOCK VALVE

VALVE, fuel metering

1шт.

8

321315R91

ARM ASSEMBLY, fuel metering valve

1шт.

9

368015R1

RETAINER, governor idling spring

1шт.

10

304810R1

SPRING

governor idling

1шт.

11

367998R1

GUIDE

governor idling spring

1шт.

12

367999R1

VALVE SPRING

SPRING, governor control (560 series)

1шт.

12

368000R1

VALVE SPRING

SPRING, governor control (International 660)

1шт.

13

313243R1

GOVERNOR

ARM, governor (order arm, 321367R1 and sleeve, 321369R1)

1шт.

13

321367R1

ARM

governor

1шт.

14

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

15

13241R91

HOOK, governor linkage

1шт.

16

368023R1

CAM

fuel shut-off shaft stop

1шт.

17

304794R1

LEVER

throttle shaft

1шт.

18

368012R1

SEAL

governor control cover

1шт.

19

304744R1

COVER ASSY

COVER, governor control

1шт.

20

319674R1

SCREW

governor control cover holdown

3шт.

319676R1

WASHER

cover hold down screw

3шт.

115545

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 internal tooth lock

3шт.

21

368009R1

NUT

idle adjusting screw lock (cover)

1шт.

22

304728R1

WASHER

idle adjusting screw cover

1шт.

23

304729R1

SEAL

idle adjusting screw oil (cover)

1шт.

24

304788R1

SET SCREW

idle adjusting (cover)

1шт.

25

368019R1

SPRING, governor linkage hook action damper sleeve

1шт.

26

368020R1

SLEEVE CYLINDER

SLEEVE, governor linkage hook action damper

1шт.

27

304721R1

SEAL

governor arm pivot shaft retaining nut

2шт.

28

368018R1

NUT

governor arm pivot shaft retaining

1шт.

29

368810R1

SCREW, hydraulic head locking

1шт.

30

368022R91

SHAFT, fuel shut-off

1шт.

319744R1

WASHER

shut-off shaft seal

1шт.

31

304748R91

ARM

fuel adjusting shut-off

1шт.

32

115545

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 internal-tooth lock

1шт.

33

217920

COVER

SCREW, no. 10NF x 3/8" hex-soc-hd. cap

1шт.

34

368026R1

SCREW, fuel adjusting shut-off arm positioning

1шт.

35

115544

WASHER,Int Tooth, #8

no. 8 internal-tooth plain (fuel adjusting shut-off arm positioning)

1шт.

36

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/4" hex-hd. machine

1шт.

37

304789R1

ADJUSTMENT SCREW

throttle high idle adjustment

1шт.

38

307818R1

LOCK NUT

NUT, throttle high idle adjusting screw lock

1шт.

39

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (throttle shaft torque screw seal nut)

2шт.

40

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 X 3/8 X 1/16" (governor idling spring guide stud seal)

1шт.

41

304742R1

NUT

governor idling spring guide stud lock

1шт.

42

304793R1

STUD

governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

no. 8 x 5/16" slt-oval-hd. mach. (used with timing line cover)

4шт.

44

304740R1

COVER ASSY

COVER, timing line

2шт.

45

367979R1

GASKET

timing line cover

2шт.

47

189132

SCREW,#10 - 24 x 5/8"

no. 10 x 5/8" hex-soc-hd cap (automatic advance housing plate retaining screws)

2шт.

48

PLATE, advance end (power side) (order package, 372616R91)

1шт.

49

368045R1

SCREW, automatic advance ball check stop

2шт.

50

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (automatic advance ball check stop screw)

2шт.

51

368343R1

WEIGHT

governor

6шт.

52

368341R1

SLEEVE

governor thrust (order arm, 321367R1 and sleeve, 321369R1)

1шт.

52

321369R1

ARM

SLEEVE, governor thrust

1шт.

53

368342R1

THRUST WASHER

governor thrust

1шт.

54

368345R1

SNAP RING

RING, governor weight retainer retaining

1шт.

55

324369R91

RETAINER

governor weight

1шт.

56

368805R1

ROLLER

plunger actuating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE, plunger actuating cam

2шт.

58

317898R1

PLUNGER, distributor rotor (for rotors marked with letter A)

2шт.

58

317897R1

PLUNGER, distributor rotor (for rotors marked with letter B)

2шт.

58

317896R1

PLUNGER, distributor rotor (for rotors marked with letter C)

2шт.

58

317895R1

PLUNGER, distributor rotor (for rotors marked with letter D)

2шт.

59

Not serviced separately

1шт.

60

304804R1

VALVE

distributor rotor delivery

1шт.

61

304807R1

SPRING

distributor rotor delivery valve

1шт.

62

317900R1

STOP

distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, distributor rotor delivery valve retaining

1шт.

64

304796R1

RING, cam

1шт.

65

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

66

304719R91

ROTOR

HEAD AND ROTOR ASSEMBLY, hydraulic, composed of (2) plunger 317895R1, (2) retainer 304800R1, (1) ring 304801R1, (1) screw 317901R1, (1) spring 304807R1, (1) stop 317900R1, (1) valve 304804R1

1шт.

67

304800R1

WASHER

RETAINER, distributor rotor

2шт.

68

304801R1

RING

distributor rotor retainer

1шт.

69

304745R1

GUIDE

LINER, transfer pump

1шт.

70

367981R1

SHEET

BLADE, transfer pump

2шт.

71

367982R1

O-RING,0.154" Width

"O" RING, 1.312 x 1/812 x .150" thick (transfer pump)

1шт.

72

367985R91

COVER ASSY

PLATE, injection pump end

1шт.

73

368030R1

RING

"O" RING, .555 x .701 x .073" thick (cap and filter fuel inlet strainer)

1шт.

74

368029R91

SIEVE

STRAINER, cap and filter fuel inlet

1шт.

75

367986R1

VALVE SPRING

SPRING, fuel pressure regulating valve plunger retaining

1шт.

76

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk (Regulating, valve plunger sleeve seal)

1шт.

77

304795R1

SLEEVE, fuel pressure regulating valve plunger

1шт.

78

367988R1

PLUNGER

fuel pressure regulating valve

1шт.

79

367989R1

VALVE SPRING

SPRING, fuel pressure regulating valve compression

1шт.

80

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk (Regulating valve plunger sleeve seal)

1шт.

81

367990R1

PLUG, end plate sleeve retaining (std.)

1шт.

81

305139R1

PLUG

end plate sleeve retaining (.020")

1шт.

81

367991R1

PLUG, end plate sleeve retaining (.030")

1шт.

81

305140R1

PLUG, end plate sleeve retaining (.040")

1шт.

81

367992R1

PLUG, end plate sleeve retaining (.050")

1шт.

81

305141R1

PLUG

end plate sleeve retaining (.060")

1шт.

81

305142R1

PLUG, end plate sleeve retaining (.070")

1шт.

81

305144R1

PLUG

end plate sleeve retaining (.090")

1шт.

82

304790R1

SCREW

injection pump end plate

4шт.

83

321076R1

PLUG

injection pump end plate pipe

1шт.

312593R1

SEAL

end plate plug seal

1шт.

84

367984R1

SEALING WASHER

WASHER, fuel link connector

6шт.

85

CONNECTOR, injection pipe (furnishe as part of injection pipe)

1шт.

86

367984R1

SEALING WASHER

WASHER, fuel line connector

6шт.

87

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

6шт.

88

304797R1

VALVE SPRING

SPRING, plunger limiting leaf

1шт.

89

368806R1

SCREW, plunger limiting lear spring adjusting

1шт.

90

368042R1

O-RING

SEAL, automatic advance end plate oil

2шт.

91

368041R1

SPRING, ball check

1шт.

92

368040R1

CHECK, ball

1шт.

93

305129R1

PISTON

automatic advance power

1шт.

94

368035R1

WASHER

automatic advance slide

2шт.

96

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Advance body clamp screw

1шт.

97

313285R1

SCREW, advance body clamp

1шт.

98

368032R1

HOUSING, automatic advance

1шт.

99

368036R1

PISTON, automatic advance spring

1шт.

100

PLATE, advance end (spring side) (order package, 372616R91)

1шт.

101

319680R1

SCREW

cam advance

1шт.

102

304724R1

SEAL

SEAL, hydraulic head locating screw

1шт.

103

368046R1

O-RING,0.85" Width

"O" RING, cam hole

1шт.

104

368810R1

SCREW, hydraulic head locking

1шт.

105

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (metering valve controlling torque screw seal nut)

1шт.

106

19735R1

NUT, metering valve controlling torque screw lock

1шт.

107

368813R1

SCREW, metering valve controlling torque

1шт.

108

217921

SCREW, no. 10 x 5/8" hex-soc-hd. cap (throttle arm spring retainer screw)

1шт.

109

304743R1

RETAINER

throttle arm spring

1шт.

110

304739R1

VALVE SPRING

SPRING, throttle arm

1шт.

111

304738R91

LEVER

ARM, throttle

1шт.

112

304749R91

SHAFT

throttle

1шт.

319744R1

WASHER

throttle shaft seal

1шт.

113

368018R1

NUT

governor arm pivot shaft retaining

1шт.

114

368016R1

SHAFT

governor arm pivot

1шт.

115

304799R1

SPRING, automatic advance

1шт.

116

106750

KEY

no. 6-5/32 x 5/8" (Woodruff) (drive shaft)

1шт.

117

313287R1

COVER ASSY

CAP, torque screw

1шт.

61921D

ELECTRICAL WIRE

SEAL, torque screw (wire)

1шт.

118

307818R1

LOCK NUT

NUT, throttle arm adjusting screw lock

2шт.

119

368002R1

ADJUSTMENT SCREW,Drilled Sl Hex, #10 - 32 x 1.406"

throttle arm adjusting

2шт.

120

304717R1

VALVE SPRING

SPRING, drive shaft thrust button

1шт.

121

304716R1

KNOB

BUTTON, drive shaft thrust

1шт.

369514R91

STRIPPER PACKAGE

1шт.

GASKET SET, injection pump, consists of (2) gasket 367979R1, (1) gasket 368012R1, (5) seal 352219R1, (1) seal 355966R1, (2) seal 359158R1, (2) seal 367977R1, (1) seal 367982R1, (1) seal 368030R1, (2) seal 368042R1, (1) seal 368046R1, (1) seal 368337R1, (8) washer 367984R1, (2) washer 368017R1, (1) washer 368034R1

1шт.

372616R91

PACKAGE, advance end plate field service, consists of (2) plate (NSS), (2) shim 368575R1, (1) shim 372617R1, (2) shim 372618R1

1шт.

368575R1

SHIM

advance spring

1шт.

372617R1

SHIM, advance spring (used only with package, 372616R91)

1шт.

372618R1

SHIM

advance spring

3шт.

Выбрано товаров: 146
