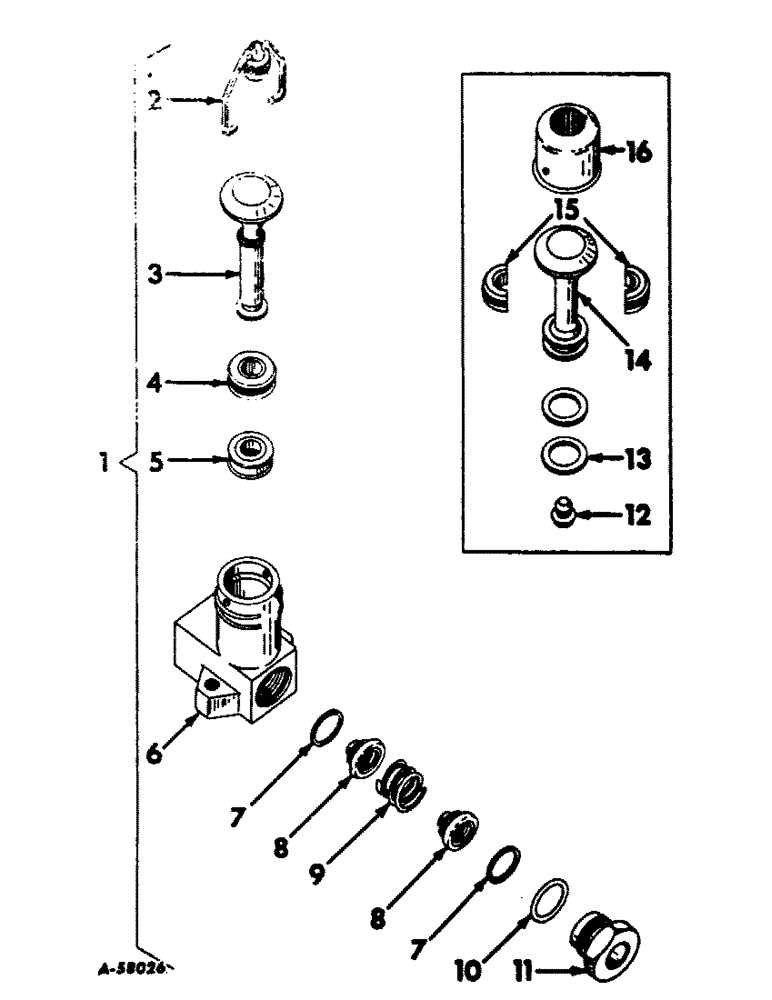

Запчасти Case IH 560 (066) - FUEL SYSTEM, HAND PRIMER PUMP, DIESEL ENGINE TRACTORS, D282501 TO 24535 (02) - FUEL SYSTEM

1

303753R91

PUMP

ASSEMBLY, hand primer

1шт.

2

307861R91

LOCK ASSY

NUT AND WIRE ASSEMBLY, hand primer screw

1шт.

3

309017R1

PLUNGER, hand primer pump (see note A)

1шт.

4

309018R1

GUIDE

hand primer pump plunger (see note A)

1шт.

5

309019R1

OIL RESERVOIR

SEAL, hand primer piston (see note A)

1шт.

6

307859R91

BODY, hand primer pump

1шт.

7

59995D

GASKET, hand primer valve

2шт.

8

346813R91

LOCK VALVE

VALVE ASSEMBLY, hand primer

2шт.

9

307869R1

SPRING, valve retaining

1шт.

10

307870R1

RING

SEAL, valve nut

1шт.

11

307867R1

NUT, hand primer valve

1шт.

12

307864R1

SEAL, hand primer piston (see note B)

1шт.

13

307865R1

SEAL, hand primer piston (see note B)

2шт.

14

307860R1

PLUNGER, hand primer pump (see note B)

1шт.

15

307862R1

GUIDE, hand primer plunger (see note B)

1шт.

16

307863R1

CAP, hand primer pump rubber (see note B)

1шт.
