Запчасти Case IH 560 (060) - FUEL SYSTEM, FUEL INJECTION PUMP, D28226601 UP 560 SERIES, D28226056 UP INTERNATIONAL 660 (02) - FUEL SYSTEM

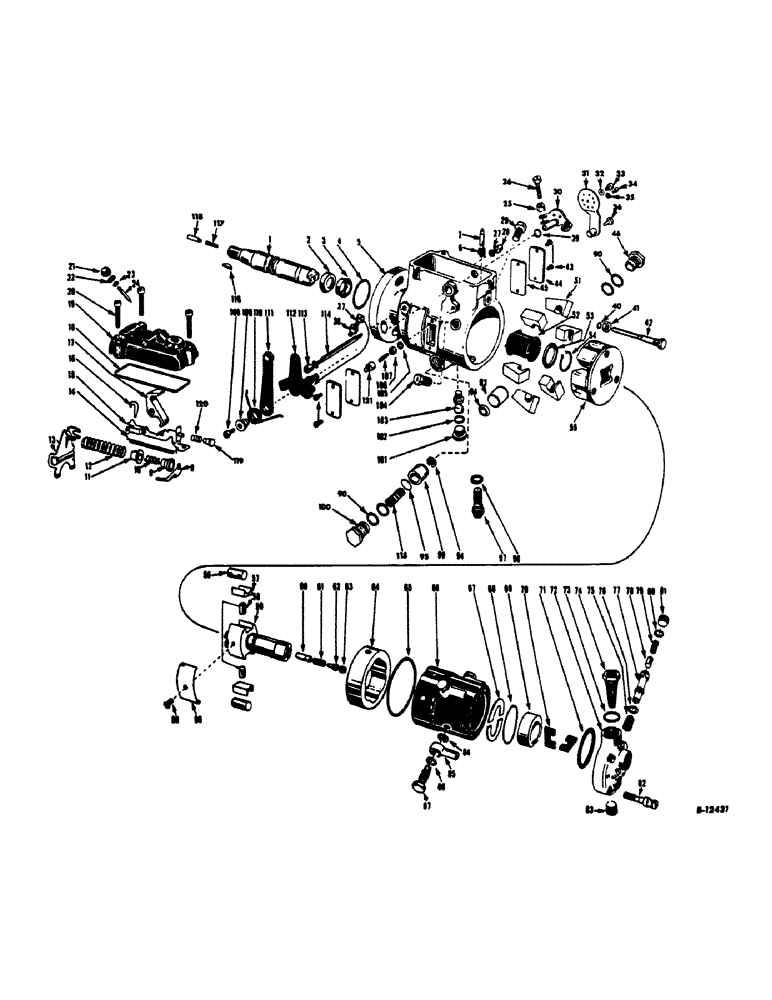

Схема запчастей Case IH 560 - (060) - FUEL SYSTEM, FUEL INJECTION PUMP, D28226601 UP 560 SERIES, D28226056 UP INTERNATIONAL 660 (02) - FUEL SYSTEM
98
15
55
35
16
51
14
76
18
53
116
32
120
27
87
3
85
11
71
42
100
81
113
60
31
116
90
2
69
4
84
17
117
24
8
102
97
90
73
62
1
13
44
95
12
23
103
112
67
20
72
9
77
36
34
65
41
105
52
121
74
110
41
114
111
118
82
26
66
5
119
33
6
63
70
40
79
21
64
25
101
46
30
45
78
75
80
19
54
83
10
107
61
28
7
22
104
29
86

Артикул

Название

Примечание

Количество

321199R1

PUMP ASSEMBLY, injection (see note)

1шт.

1

304715R1

SHAFT

drive

1шт.

2

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

3

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

4

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

pilot tube

1шт.

5

324187R91

HOUSING

w/pilot

1шт.

6

304746R1

VALVE SPRING

SPRING, fuel metering valve

1шт.

7

313673R1

LOCK VALVE

VALVE, fuel metering

1шт.

313286R1

WASHER

SHIM, metering valve

1шт.

8

324188R91

ARM

fuel metering valve

1шт.

9

368015R1

RETAINER, governor idling spring

1шт.

10

304810R1

SPRING

governor idling

1шт.

11

367998R1

GUIDE

governor idling spring

1шт.

12

367999R1

VALVE SPRING

SPRING, governor control (560 series)

1шт.

12

368000R1

VALVE SPRING

SPRING, governor control (International 660)

1шт.

13

321367R1

ARM

governor

1шт.

14

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

15

313241R91

HOOK, governor linkage

1шт.

16

368023R1

CAM

fuel shut-off

1шт.

17

304794R1

LEVER

throttle shaft

1шт.

18

368012R1

SEAL

governor control cover

1шт.

19

304744R1

COVER ASSY

COVER, governor control

1шт.

20

319674R1

SCREW

governor control hold down

3шт.

319676R1

WASHER

cover hold down screw

3шт.

115545

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 internal tooth lock

3шт.

21

368009R1

NUT

idle adjusting screw lock (cover)

1шт.

22

304728R1

WASHER

idle adjusting screw cover

1шт.

23

304729R1

SEAL

idle adjusting screw oil (cover)

1шт.

24

304788R1

SET SCREW

idle adjusting (cover)

1шт.

25

307818R1

LOCK NUT

NUT, shut-off lever adjusting screw

2шт.

26

368002R1

ADJUSTMENT SCREW,Drilled Sl Hex, #10 - 32 x 1.406"

shut-off lever adjusting

2шт.

27

304721R1

SEAL

governor arm pivot shaft retaining nut

2шт.

28

368018R1

NUT

governor arm pivot shaft retaining

1шт.

29

368810R1

SCREW, hydraulic head locking

1шт.

30

368022R91

SHAFT AND LEVER ASSEMBLY, shut-off

1шт.

319744R1

WASHER

shut-off shaft seal

1шт.

31

304748R91

ARM

ASSEMBLY, adjustable shut-off

1шт.

32

115545

LOCK WASHER,Int Tooth, #10

WASHER, shut-off lever positioning (no. 10 internal-tooth lock)

1шт.

33

217920

COVER

SCREW, shut-off lever retaining (no. 10NF x 3/8" hex-soc-hd.)

1шт.

34

368026R1

SCREW, shut-off lever positioning

1шт.

35

115544

WASHER,Int Tooth, #8

shut-off lever position screw (no. 8 internal-tooth lock)

1шт.

36

450643

SCREW,Hex Hd, #8-32 x 3/8"

shut-off arm fitting (no. 8 x 3/8" hex-hd. mach.)

1шт.

37

304789R1

ADJUSTMENT SCREW

throttle high idle adjustment

1шт.

38

307818R1

LOCK NUT

NUT, throttle high idle adjusting screw lock

1шт.

39

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (throttle shaft torque screw seal unit)

2шт.

40

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, guide stud (1/4 x 3/8 x 1/16")

1шт.

41

304742R1

NUT

governor idling spring guide stud

1шт.

42

304793R1

STUD

governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

no. 8 x 5/16" slt-ov-hd. mach. (used with timing line cover)

4шт.

44

304740R1

COVER ASSY

COVER, timing line

2шт.

45

367979R1

GASKET

timing line cover

2шт.

46

319729R1

PLUG, piston hole

1шт.

51

368343R1

WEIGHT

governor

6шт.

52

321369R1

ARM

SLEEVE, governor thrust

1шт.

53

368342R1

THRUST WASHER

governor thrust

1шт.

54

368345R1

SNAP RING

RING, governor weight retainer retaining

1шт.

55

324369R91

RETAINER

governor weight

1шт.

56

368805R1

ROLLER

plunger actuating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE, plunger actuating cam

2шт.

58

317898R1

PLUNGER, rotor (for rotors marked with letter A)

2шт.

58

317897R1

PLUNGER, rotor (for rotors marked with letter B)

2шт.

58

317896R1

PLUNGER, rotor (for rotors marked with letter C)

2шт.

58

317895R1

PLUNGER, rotor (for rotors marked with letter D)

2шт.

59

Not furnished separately

1шт.

60

304804R1

VALVE

distributor rotor delivery (standard)

1шт.

60

317899R1

VALVE, distributor rotor delivery (oversize)

1шт.

61

304807R1

SPRING

distributor rotor delivery valve

1шт.

62

317900R1

STOP

distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, distrbutor rotor delivery valve retaining

1шт.

64

304796R1

RING, cam

1шт.

65

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

66

304719R91

ROTOR

HEAD AND ROTOR ASSEMBLY, hydraulic, composed of (2) plunger 317895R1, (2) retainer 304800R1, (1) ring 304801R1, (1) screw 317901R1, (1) spring 304807R1, (1) stop 317900R1, (1) valve 304804R1

1шт.

67

304800R1

WASHER

RETAINER, distributor rotor

2шт.

68

304801R1

RING

distributor rotor retainer

1шт.

69

304745R1

GUIDE

LINER, transfer pump

1шт.

70

319991R1

WIPER BLADE

BLADE, transfer pump (International 660)

2шт.

70

367981R1

SHEET

BLADE, transfer pump (560 series)

2шт.

71

367982R1

O-RING,0.154" Width

"O" RING, 1.312 x 1.812 x .150" thick (transfer pump)

1шт.

72

367985R91

COVER ASSY

PLATE, injection pump end

1шт.

73

368030R1

RING

"O" RING, .555 x .701 x .073" thick (cap and filter fuel inlet strainer)

1шт.

74

368029R91

SIEVE

STRAINER, cap and filter fuel inlet

1шт.

75

367986R1

VALVE SPRING

SPRING, fuel pressure regulating valve plunger retaining

1шт.

76

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk (Regulating valve plunger sleeve seal)

1шт.

77

304795R1

SLEEVE, regulating valve plunger

1шт.

78

367988R1

PLUNGER

PISTON, fuel pressure regulating

1шт.

79

367989R1

VALVE SPRING

SPRING, fuel pressure regulating

1шт.

80

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk (Regulating valve plunger sleeve seal)

1шт.

81

367990R1

PLUG, end plate sleeve retaining (std.)

1шт.

81

305139R1

PLUG

end plate sleeve retaining (.020")

1шт.

81

367991R1

PLUG, end plate sleeve retaining (.030")

1шт.

81

305140R1

PLUG, end plate sleeve retaining (.040")

1шт.

81

367992R1

PLUG, end plate sleeve retaining (.050")

1шт.

81

305141R1

PLUG

end plate sleeve retaining (.060")

1шт.

81

305142R1

PLUG, end plate sleeve retaining (.070")

1шт.

81

317957R1

PLUG, end plate sleeve retaining (.080")

1шт.

81

305144R1

PLUG

end plate sleeve retaining (.090")

1шт.

81

343767R1

PLUG, end plate sleeve retaining (.010")

1шт.

82

304790R1

SCREW

injection pump end plate

4шт.

83

321076R1

PLUG

injection pump end plate pipe

1шт.

312593R1

SEAL

end plate pipe plug

1шт.

84

367984R1

SEALING WASHER

WASHER, fuel line connector

6шт.

85

CONNECTOR, injection pipe (furnished as part of injection pipe)

1шт.

86

367984R1

SEALING WASHER

WASHER, fuel line connector

6шт.

87

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

6шт.

88

304797R1

VALVE SPRING

SPRING, plunger limiting leaf

1шт.

89

368806R1

SCREW, plunger limiting leaf spring adjusting

1шт.

90

319687R1

WIPER SEAL

piston hole plug

4шт.

93

338980R1

PISTON ASSY

PISTON, power

1шт.

94

368035R1

WASHER

automatic advance slide

2шт.

95

319685R1

SHIM

advance spring (.0155-.0175)

1шт.

95

368575R1

SHIM

advance spring (.004-.006)

1шт.

95

372618R1

SHIM

advance spring (.032-.034)

1шт.

96

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Head locating screw

1шт.

97

319679R91

CAPSCREW

SCREW, head locating

1шт.

99

319686R1

PISTON ASSY

PISTON, load advance spring

1шт.

100

319684R1

PLUG, piston hole

1шт.

101

319688R1

PLUG

advance screw hole

1шт.

102

319689R1

WIPER SEAL

advance screw hole

1шт.

103

319680R1

SCREW

cam advance

1шт.

104

368810R1

SCREW, hydraulic head locking

1шт.

105

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (metering valve controlling torque screw seal nut)

1шт.

106

19735R1

NUT, metering valve controlling torque screw lock

1шт.

107

368813R1

SCREW, torque

1шт.

108

217921

SCREW, no. 10 x 5/8" hex-soc-hd. cap (throttle arm spring retainer screw)

1шт.

109

304743R1

RETAINER

throttle arm spring

1шт.

110

304739R1

VALVE SPRING

SPRING, throttle arm

1шт.

111

304738R91

LEVER

throttle

1шт.

112

304749R91

SHAFT

throttle

1шт.

319744R1

WASHER

throttle shaft seal

1шт.

113

368018R1

NUT

governor arm pivot shaft retaining

1шт.

114

368016R1

SHAFT

governor arm pivot

1шт.

115

304799R1

SPRING, automatic advance

1шт.

116

106750

KEY

5/32 x 5/8" (Woodruff no. 6) (drive shaft)

1шт.

117

304717R1

VALVE SPRING

SPRING, drive shaft thrust button

1шт.

118

304716R1

KNOB

BUTTON, drive shaft thrust

1шт.

119

368020R1

SLEEVE CYLINDER

SLEEVE, governor linkage hook action damper

1шт.

120

368019R1

SPRING, governor linkage hook action damper

1шт.

121

313287R1

COVER ASSY

CAP, torque

1шт.

61921D

ELECTRICAL WIRE

SEAL, torque screw cap (wire)

1шт.

321870R91

GASKET

1шт.

PACKAGE, fuel injection pump field service, consists of (2) gasket 367979R1, (1) gasket 368012R1, (1) "o" ring 304720R1, (4) "o" ring 352219R1, (4) "o" ring 359158R1, (1) "o" ring 367982R1, (1) "o" ring 368030R1, (2) oil seal 313288R1, (2) seal 304721R1, (1) seal 304729R1, (1) seal 312593R1, (4) seal 319687R1, (1) seal 319689R1, (1) seal 368337R1, (1) washer 313685R1, (2) washer 319744R1, (12) washer 367984R1, (1) washer 368014R1

1шт.

12736D

ELECTRICAL WIRE

WIRE, lead pump and sealing

6шт.

Выбрано товаров: 142
