Запчасти Case IH 560 (054) - FUEL SYSTEM, FUEL FILTER, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

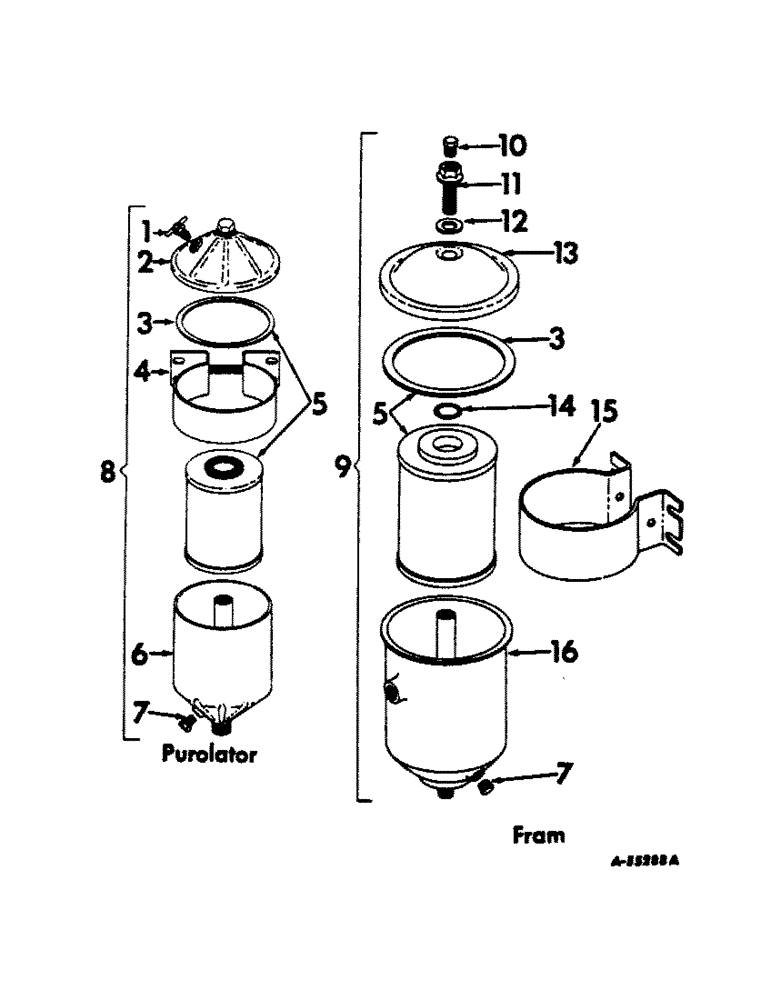

Схема запчастей Case IH 560 - (054) - FUEL SYSTEM, FUEL FILTER, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM
2
13
12
7
4
15
5
11
14
16
7
10
3
8
9
1
6
5
3

Артикул

Название

Примечание

Количество

1

114981

VALVE

BLEEDER, filter

1шт.

2

304103R91

COVER

ASSEMBLY, filter

1шт.

3

304102R1

GASKET

element cover

1шт.

4

304104R91

HOLDER

BRACKET ASSEMBLY, filter

1шт.

5

304101R91

FILTER, ELEMENT

ELEMENT ASSEMBLY, filter (optional with 306353R91)

1шт.

5

306353R91

ELEMENT

ASSEMBLY, filter (special) (optional with 304101R91)

1шт.

6

304100R91

BODY

CASE ASSEMBLY, filter

1шт.

7

258995R1

PLUG

filter drain

1шт.

8

278062R91

FILTER

ASSEMBLY, fuel (Purolator) (optional with 306399R91)

1шт.

9

306399R91

FILTER

ASSEMBLY, fuel (Fram) (optional with 278062R91)

1шт.

10

306778R1

PLUG, filter vent

1шт.

11

368492R1

SCREW, filter vent cap

1шт.

12

368493R1

GASKET

filter vent cap screw

1шт.

13

306776R91

COVER, filter

1шт.

14

306777R1

O-RING

O-RING, filter body

1шт.

15

306780R1

STRAP, filter bracket

1шт.

NUT, 1/4" sq.

1шт.

SCREW, 1/4 x 3" slt-rd-hd. mach.

1шт.

WASHER, 1/4" lock

1шт.

16

306775R91

CASE ASSEMBLY, filter

1шт.

Выбрано товаров: 20
