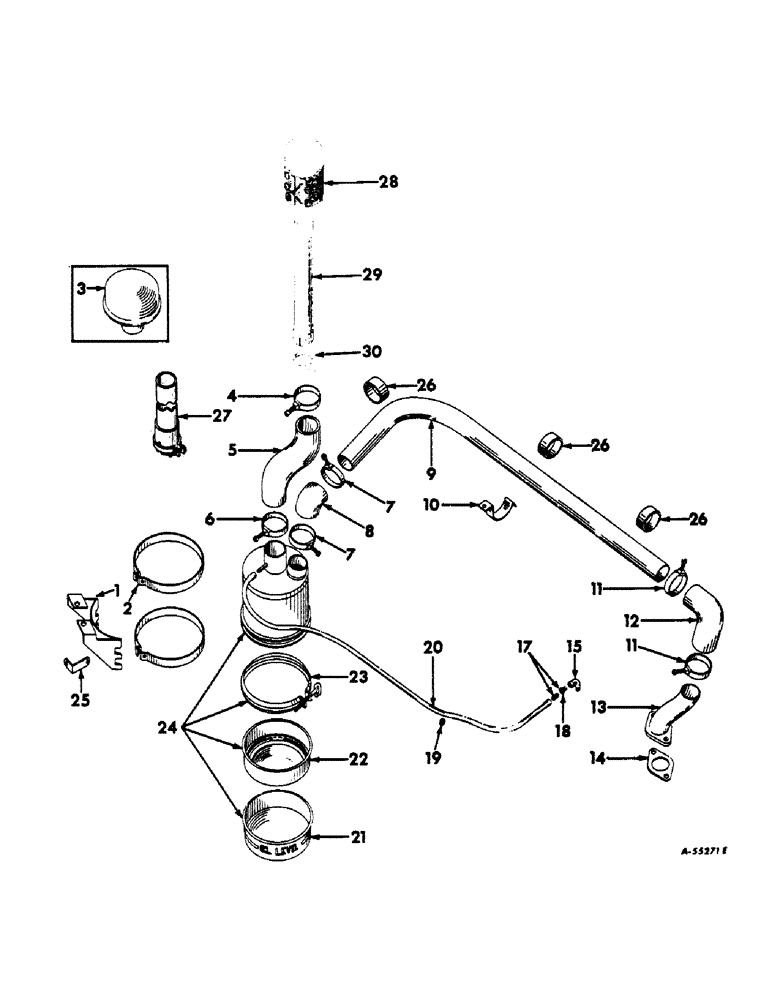

Запчасти Case IH 560 (046) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

370239R1

BRACKET, air cleaner (560 series)

1шт.

1

372833R1

BRACKET, air cleaner (International 660)

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3/4" hex-hd. cap

2шт.

2

55694D

BAND, air cleaner mounting

2шт.

NUT, 5/16" sq

2шт.

SCREW, 5/16 x 1-1/2" slt-fil-hd mach

2шт.

3

275285R91

CAP

ASSEMBLY, air cleaner intake Farmall 560501 to 44419 International 560501 to 4839 International, Serial Range: 660501-4255

1шт.

4

29978D

CLAMP

air cleaner intake hose upper

1шт.

5

370240R1

HOSE, air cleaner intake

1шт.

6

29978D

CLAMP

air cleaner intake hose lower

1шт.

7

29976D

CLAMP, air cleaner to manifold pipe elbow (560 series)

2шт.

7

29879D

CLAMP, air cleaner to manifold pipe elbow (International 660)

2шт.

8

370237R1

INTAKE AIR HOSE,57.20 mm ID x 78.20 mm, SAE 20R4

- Elbow, Air cleaner to manifold pipe (560 series) 57.20 mm ID x 78.20 mm, SAE 20R4

1шт.

8

373033R1

ELBOW, air cleaner to manifold pipe (International 660)

1шт.

9

370238R1

PIPE, air cleaner to manifold (560 series)

1шт.

9

373029R1

PIPE, air cleaner to manifold (International 660)

1шт.

10

370235R1

SUPPORT, air cleaner to manifold pipe

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 7/16" hex-hd. cap

2шт.

11

29976D

CLAMP, manifold air intake pipe elbow (560 series)

2шт.

11

29978D

CLAMP

manifold air intake pipe elbow (International 660)

1шт.

12

370233R1

INTAKE AIR HOSE,2.25" ID x 4.50", SAE 20R4 CLASS SC

- Elbow, Manifold (560 series) 2.25" ID x 4.50", SAE 20R4 CLASS SC

1шт.

12

373032R1

ELBOW, manifold air intake pipe (International 660)

1шт.

13

370231R11

PIPE ASSEMBLY, manifold air intake (560 series)

1шт.

13

373030R11

PIPE ASSEMBLY, manifold air intake (International 660)

1шт.

SCREW, 7/16 x 1" hex-hd. cap

2шт.

14

369497R2

GASKET

manifold air intake pipe

1шт.

15

365781R1

ELBOW, breather pipe 560 series D282501 to 34305 International 660, Serial Range: D282501-34610

1шт.

17

364252R11

PIPE ASSEMBLY, breather 560 series D282501 to 34305 International 660, Serial Range: D282501-34610

1шт.

18

19986R1

TUBE NUT,9/16"-20

NUT, breather pipe elbow 560 series D282501 to 34305 International 660 D282501 to 34610

1шт.

19

138963R1

GROMMET, air cleaner to valve cover hose 560 series D282501 to 34305 International 660, Serial Range: D282501-34610

1шт.

20

371306R1

HOSE ASSY.

HOSE, air cleaner to valve cover 560 series D282501 to 34305 International 660, Serial Range: D282501-34610

1шт.

21

372494R1

CUP, oil (part of air cleaner, 371182R91)

1шт.

21

313181R1

CUP, oil (part of air cleaner, 372978R91)

1шт.

22

372493R1

CUP, inner oil (part of air cleaner, 371182R91)

1шт.

22

373180R91

CUP ASSEMBLY, inner oil (part of air cleaner, 372978R91)

1шт.

23

59806D

CLAMP ASSEMBLY, oil cup retaining

1шт.

24

371182R91

CLEANER ASSEMBLY, air (560 series)

1шт.

24

372978R91

CLEANER ASSEMBLY, air (International 660)

1шт.

25

372834R1

BRACE, air cleaner bracket (International 660)

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 9/16" hex-hd. cap

1шт.

SCREW, 5/16 x 5/8" hex-hd. cap

1шт.

26

373034R1

PAD, air cleaner to manifold pipe (International 660)

3шт.

27

376351R1

AIR INTAKE TUBE,40575" OD, 24" Length

EXTENSION, air pipe (560 series)

1шт.

31790DA

CLAMP

air pipe

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

28

353413R92

PRE-SCREENER, air cleaner (for components see list of parts under details of pre-screener) Farmall 560 diesel 44420 up International 560 diesel 4840 up International 660 diesel 4256 up

1шт.

29

376351R1

AIR INTAKE TUBE,40575" OD, 24" Length

PIPE, air cleaner extension International 660 diesel 4256 up

1шт.

29

378809R1

PIPE, air cleaner extension Farmall 560 diesel 44420 to 57881 International 560 diesel, Serial Range: 4840-5454

1шт.

30

31790DA

CLAMP

air pipe Farmall 560 diesel 44420 up International 560 diesel 4840 up International 660 diesel 4256 up

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

375865R91

PARTS ACCESSORY, pre-screener International 660 diesel, Serial Range: 501-4255

1шт.
