Запчасти Case IH 560 (042) - FUEL SYSTEM, PRE-SCREENER (02) - FUEL SYSTEM

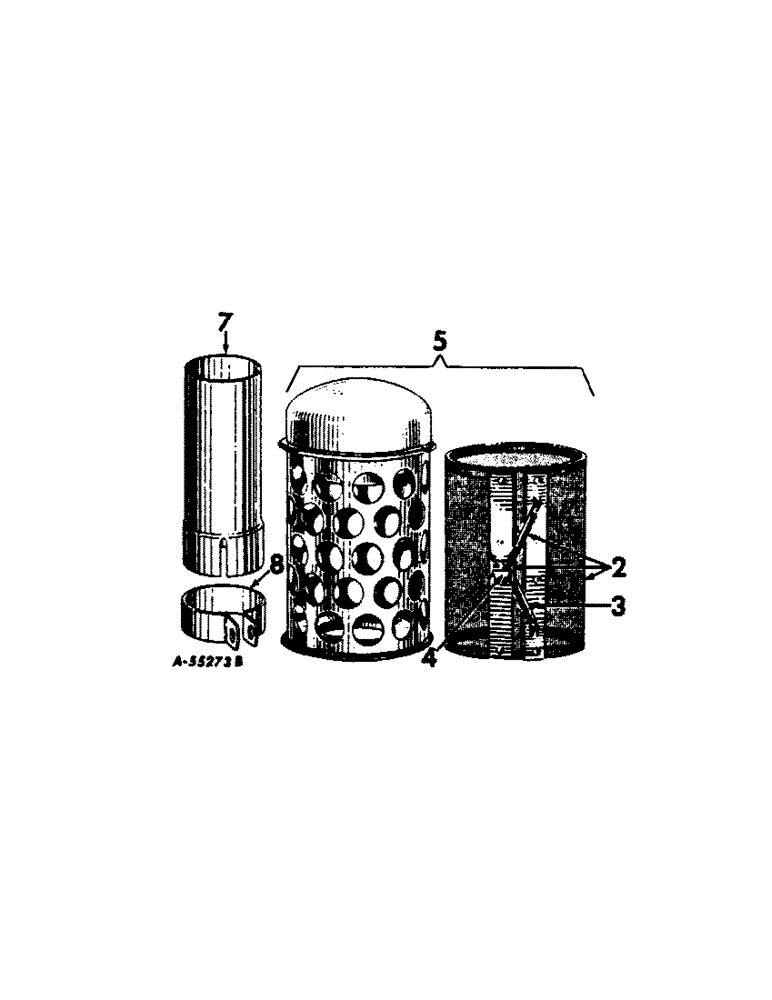

Схема запчастей Case IH 560 - (042) - FUEL SYSTEM, PRE-SCREENER (02) - FUEL SYSTEM
3
8
5
2
7
4

Артикул

Название

Примечание

Количество

370364R91

PARTS ACCESSORY, pre-screener

1шт.

2

353638R91

SCREEN

ASSEMBLY, pre-screener

1шт.

3

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

4

353758R1

CLIP

screen lock spring

1шт.

5

353413R92

PRE-SCREENER, air cleaner (two piece)

1шт.

7

378809R1

EXTENSION, air cleaner intake pipe

1шт.

8

31790DA

CLAMP

air cleaner intake pipe extension

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

Выбрано товаров: 10
