(212[A]) - WHEELS, FRONT WHEEL WEIGHTS, INTERNATIONAL 660 SERIES

Запчасти Case IH 560 (212[A]) - WHEELS, FRONT WHEEL WEIGHTS, INTERNATIONAL 660 SERIES (11) - WHEELS

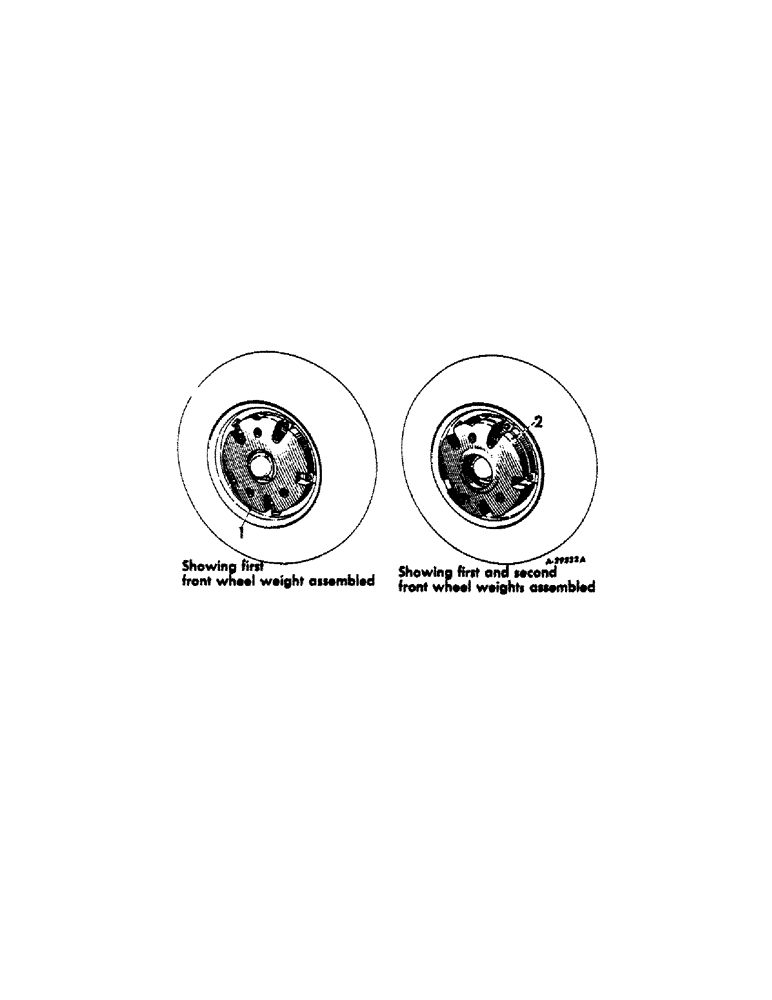

Схема запчастей Case IH 560 - (212[A]) - WHEELS, FRONT WHEEL WEIGHTS, INTERNATIONAL 660 SERIES (11) - WHEELS
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9042D

WEIGHT, front wheel (approx. 73 lbs.) (2 for unit A)

1шт.

BOLT, 1/2 x 2-1/4" sq-hd. mach.

6шт.

NUT, 1/2"

6шт.

WASHER, 1/2" lock

6шт.

2

9042D

WEIGHT, front wheel (approx. 73 lbs.) (2 for unit B)

1шт.

BOLT, 1/2 x 3-1/4" sq-hd. mach.

6шт.

NUT, 1/2"

6шт.

WASHER, 1/2" lock

6шт.

Выбрано товаров: 8
