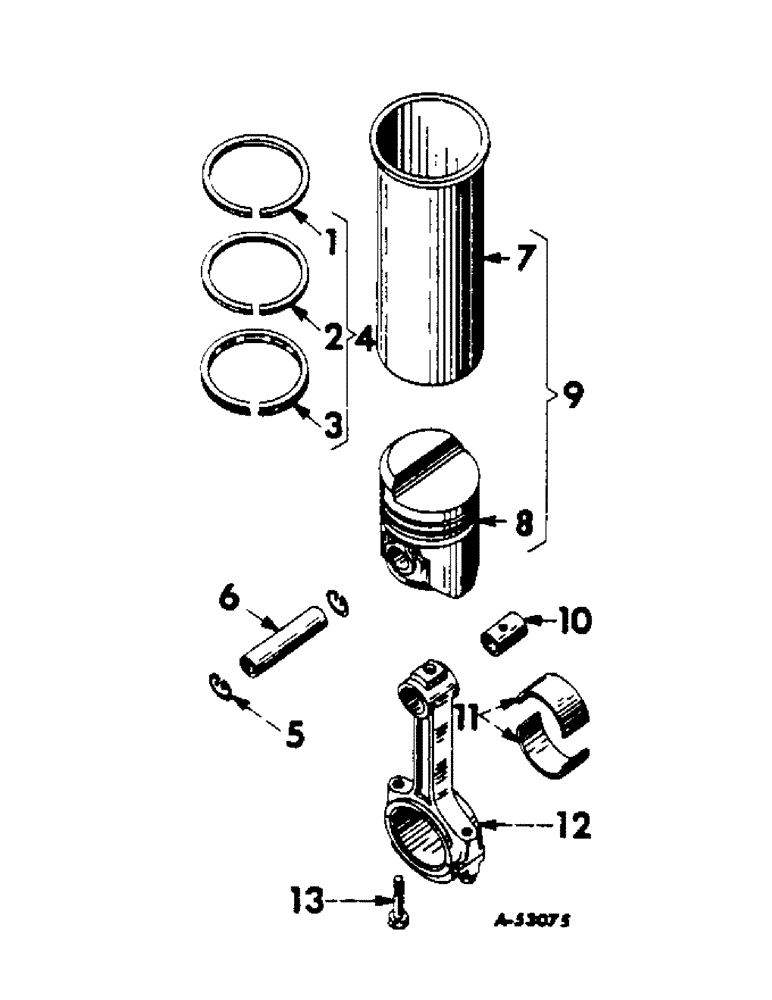

Запчасти Case IH 460 (012) - CARBURETED ENGINE, CONNECTING RODS AND SLEEVE SETS (01) - ENGINE

1

366266R1

RING

compression piston (Top or first groove)

6шт.

2

366268R1

RING

compression piston (Second groove)

6шт.

3

366269R91

SPARE PART oil piston (Third or bottom groove)

6шт.

4

367649R91

SPARE PART piston (Consists of twelve compression and six oil regulating rings)

1шт.

5

19517D

SPECIAL RING

piston pin retaining

12шт.

6

70014R1

PIN

piston (Standard)

6шт.

6

70015R1

PIN, piston (.005" oversize)

6шт.

7

SLEEVE, cylinder (Order Sleeve, Piston and Rings Assembly, for proper fuel and altitude)

6шт.

8

PISTON (Order Sleeve, Piston and Rings Assembly, for proper fuel and altitude)

6шт.

9

367637R91

PISTON ASSY.

crankcase (Consists of six Sleeves, 367638R91) (Gasoline - Standard altitude)

1шт.

9

371829R91

ATTACHMENT

crankcase (Consists of six Sleeves, 372082R91) (Gasoline - high altitude)

1шт.

9

371089R91

SLEEVE ASSY

crankcase (Consists of six Sleeves, 371091R91) (L. P. Gas)

1шт.

9

367638R91

PISTON ASSY.

cylinder (Gasoline - standard altitude) (Composed of -

6шт.

70014R1

PIN

1шт.

367641R1

PISTON

(NSS)

1шт.

19517D

SPECIAL RING

2шт.

366266R1

RING

1шт.

366268R1

RING

1шт.

366269R91

SPARE PART

1шт.

367645R1

SLEEVE) (NSS)

1шт.

9

372082R91

PISTON

cylinder (Gasoline - high altitude) (Composed of -

6шт.

70014R1

PIN

1шт.

372074R1

PISTON

(NSS)

1шт.

19517D

SPECIAL RING

2шт.

366266R1

RING

1шт.

366268R1

RING

1шт.

366269R91

SPARE PART

1шт.

367645R1

SLEEVE) (NSS)

1шт.

9

371091R91

SLEEVE

cylinder (L. P. Gas) (Composed of -

6шт.

70014R1

PIN

1шт.

371093R1

PISTON

(NSS)

1шт.

19517D

SPECIAL RING

2шт.

366266R1

RING

1шт.

366268R1

RING

1шт.

366269R91

SPARE PART

1шт.

367645R1

SLEEVE) (NSS)

1шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

connecting rod (2 halves) (Standard)

6шт.

11

367632R11

BEARING ASSY

BEARING, CON. ROD connecting rod (2 halves) (.002" undersize)

6шт.

11

376666R11

BEARING ASSY

connecting rod (2 halves) (.010" undersize)

6шт.

11

376668R11

CONN. ROD SHELL

connecting rod (2 halves) (.020" undersize)

6шт.

11

367631R11

BEARING ASSY

connecting rod (2 halves) (.030" undersize)

6шт.

11

367630R91

SPARE PART connecting rod (Standard) (Consists of six Bearings, 367408R11)

1шт.

11

377285R91

KIT

connecting rod (.002" undersize) (Consists of six Bearings, 367632R11)

1шт.

11

376665R91

BEARING

connecting rod (.010" undersize) (Consists of six Bearings, 376666R11)

1шт.

11

376667R91

KIT

connecting rod (.020" undersize) (Consists of six Bearings, 376668R11)

1шт.

11

372443R91

KIT

connecting rod (.030" undersize) (Consists of six Bearings, 367631R11)

1шт.

12

367406R12

ROD

and Bushing, 364913R1, Assembly, connecting

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
