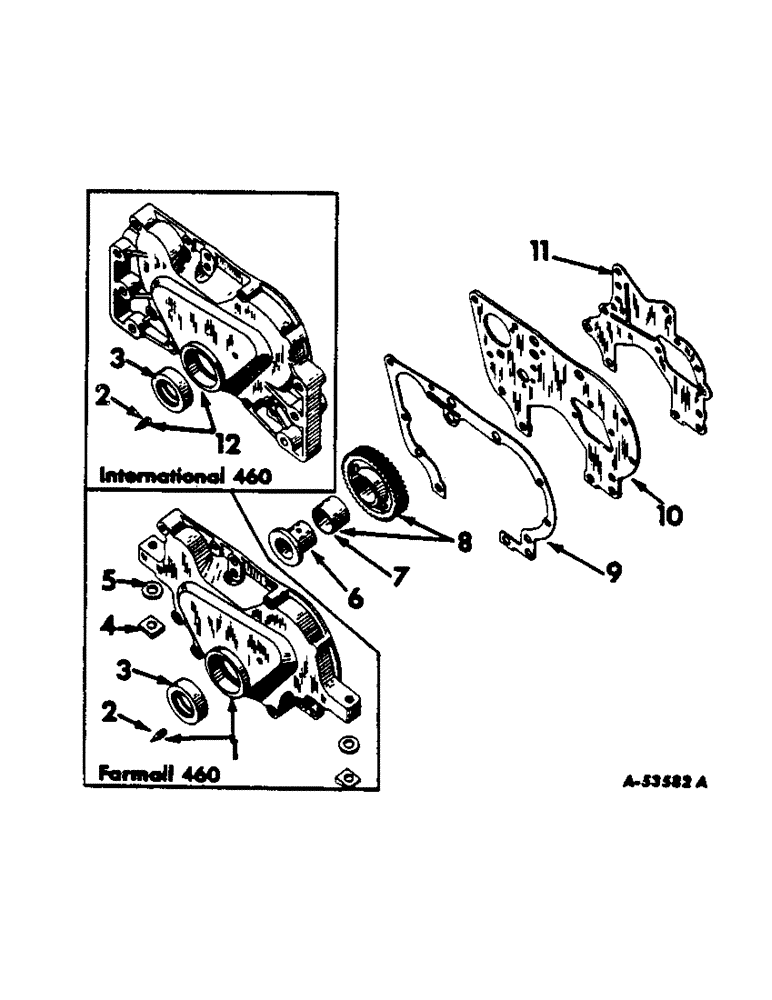

Запчасти Case IH 460 (011) - CARBURETED ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

367571R11

SPARE PART crankcase front (Farmall 460)

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 hex-hd. cap

3шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

25-118

NUT,1/2"-20, G5

1/2 NF (Used only with Stud, 367522R1)

2шт.

103323

LOCK WASHER,1/2"

LOCK, 1/2"

6шт.

2

367572R1

INDICATOR

timing

1шт.

3

357672R91

OIL SEAL

crankshaft

1шт.

4

51693D

BAR

engine front support bevel

2шт.

102637

NUT,1/2"-13, G5

1/2"-13, G5

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2 hex-hd. cap

2шт.

103323

LOCK WASHER,1/2"

LOCK, 1/2"

2шт.

5

48384D

SPARE PART engine front support - heavy

2шт.

5

48385D

SHIM

engine front support - light

1шт.

6

367580R11

HUB

idler gear

1шт.

141150

3/16 x 7/16 dowel

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1/2 x 2-1/4 hex-hd. cap

1шт.

103323

LOCK WASHER,1/2"

LOCK, 1/2"

1шт.

7

367578R1

BUSHING

idler gear

1шт.

8

367577R11

PINION

idler

1шт.

9

367574R1

GASKET

crankcase front cover

1шт.

10

367524R1

SPARE PART crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

103321

LOCK WASHER,3/8"

3/8"

6шт.

11

367570R1

GASKET

crankcase front plate

1шт.

12

367573R21

SPARE PART crankcase front (International 460)

1шт.

25-118

NUT,1/2"-20, G5

1/2 NF (Used only with Stud, 367522R1)

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 hex-hd. cap

3шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

1/2"

6шт.
