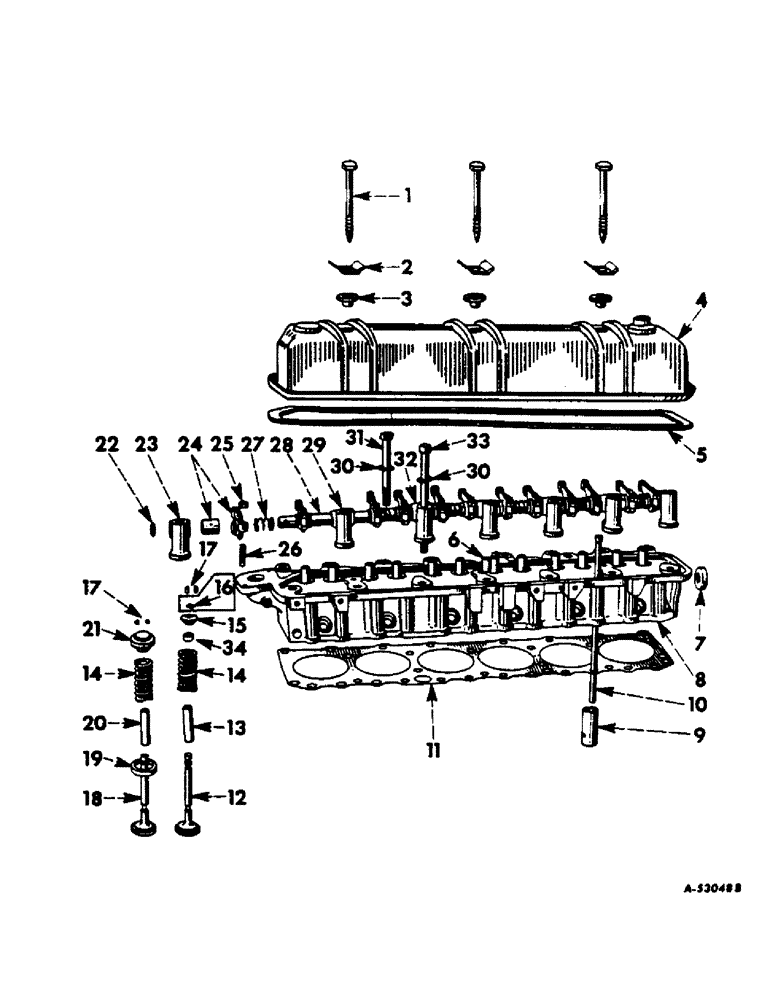

Запчасти Case IH 460 (009) - CARBURETED ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

1

168144R1

BOLT (SPREADER)

valve cover

3шт.

2

370208R1

SUPPORT

valve cover

3шт.

3

164420R1

GROMMET

valve cover

3шт.

4

378617R91

COVER

valve

1шт.

PIPE PLUG, 1/4" sq-hd

1шт.

5

369983R1

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

valve lever shaft intermediate #2, #4, #6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

367189R94

SPARE PART cylinder (Gasoline) (Composed of -

1шт.

373423R21

SPARE PART

1шт.

41339D

KEY

24шт.

151167R3

SEAT

6шт.

367193R91

ROTATOR

6шт.

111024R1

SEAL

6шт.

367192R1

SPRING

12шт.

127201R1

VALVE

6шт.

372699R1

VALVE

6шт.

8

372615R93

SPARE PART cylinder (L. P. Gas) (Composed of -

1шт.

373423R21

SPARE PART

1шт.

41339D

KEY

24шт.

151167R3

SEAT

6шт.

375604R91

SEAT

6шт.

111024R1

SEAL

6шт.

367192R1

SPRING

12шт.

127201R1

VALVE

6шт.

372699R1

VALVE

6шт.

8

373423R21

SPARE PART cylinder (Gasoline and L. P. Gas) (Composed of -

1шт.

237247R1

GUIDE

(NSS)

12шт.

373423R2

HEAD (NSS)

1шт.

103874

VALVE SPRING

1шт.

3066422R1

PLUG

1шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

126373R1

SEAT

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

9

75524R3

TAPPET

valve

12шт.

10

164436R91

PUSH ROD

valve push

12шт.

11

164418R1

GASKET

SPARE PART cylinder head

1шт.

12

127201R1

VALVE

intake (Order Deflector, 866834R1 and Valve, 234275R1) (C-221, Serial Range: 501-28872)

6шт.

12

234275R1

VALVE

intake (C-221 28873 up)

6шт.

13

237248R1

GUIDE

intake valve stem

6шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

valve spring

6шт.

16

111024R1

SEAL

intake valve stem (C-221, Serial Range: 501-27940)

6шт.

17

41339D

KEY

valve spring retainer

24шт.

18

367191R1

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE (Gasoline) (L. P. Gas C-221, Serial Range: 501-24949)

6шт.

18

372699R1

VALVE

(Stellite Faced) (L. P. Gas C-221 24950 up) (See Note)

6шт.

19

126373R1

SEAT

exhaust valve

6шт.

19

126231R1

SEAT

exhaust valve (.015" oversize)

6шт.

19

83488R2

SEAT, exhaust valve (.030" oversize)

6шт.

20

237248R1

GUIDE

exhaust valve stem

6шт.

21

151167R3

SEAT

exhaust valve spring (L. P. Gas) (C-221, Serial Range: 501-25558)

6шт.

21

375604R91

SEAT

exhaust valve (L. P. Gas) (C-221 25559 up)

6шт.

22

109544R1

PLUG

3/4" dia. expansion

2шт.

23

164422R1

BRACKET

SPARE PART valve lever shaft front and rear

2шт.

24

164432R91

ARM

16067DA ASSEMBLY, valve

12шт.

25

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R3

SHAFT

valve lever

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

5/16" x 1 1/4", Slotted

2шт.

29

164423R11

BRACKET

valve lever shaft intermediate #2, #4, #6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

15шт.

31

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cylinder head - short

8шт.

32

164425R1

BRACKET

valve lever shaft intermediate #3 and #5

1шт.

33

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

cylinder head - long

7шт.

34

866834R1

BAFFLE

intake valve stem oil (C-221 27941 up)

1шт.
