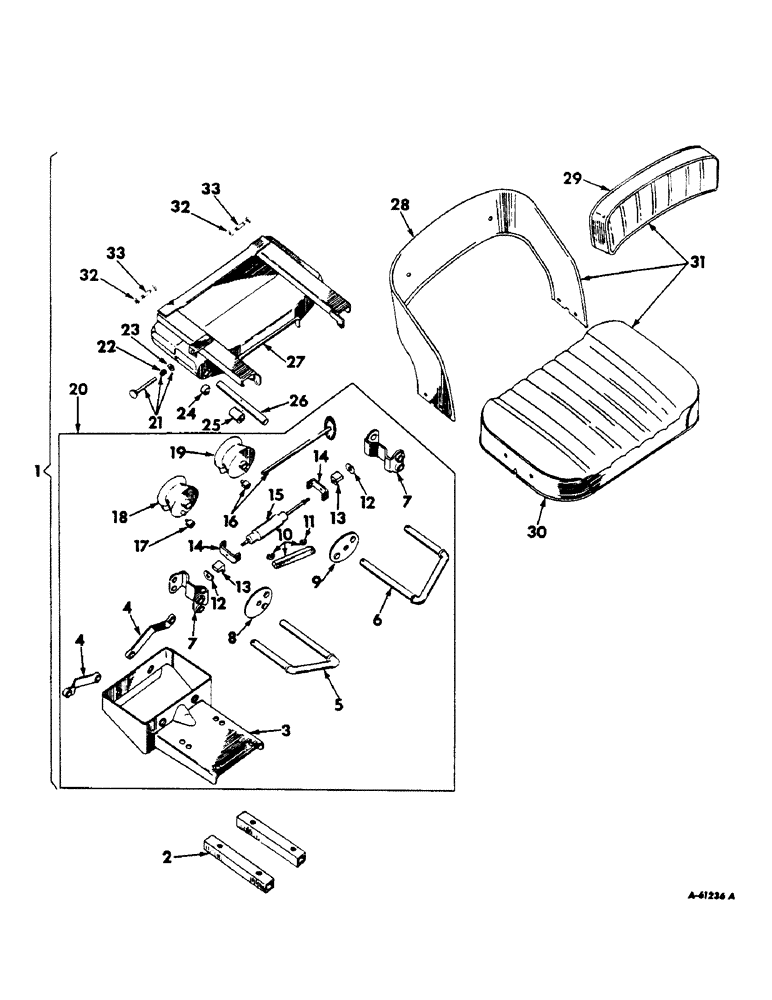

Запчасти Case IH 460 (220) - SEAT AND SUPPORTS, DELUXE VERTICAL ACTING SEAT, FARMALL 460 SERIES 16931 UP Seat & Supports

372372R92

SPARE PART PARTS ACCESSORY, deluxe vertical acting seat

1шт.

1

372729R92

SUSPENSION

ASSEMBLY, seat

1шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

16038R1

WASHER

17/32 x 1" x 11 ga

4шт.

2

Not Used

1шт.

3

375129R91

SPARE PART W/PINS ASSEMBLY

1шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

1/4" x 1 1/4", Type A

8шт.

4

372744R91

KIT

ARM W/PINS ASSEMBLY, spring

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

5

372733R91

SPARE PART W/PINS ASSEMBLY, RH spring

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

6

372732R91

SPARE PART SHAFT W/PINS ASSEMBLY, LH spring

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

7

372743R91

SPARE PART LINK W/PINS ASSEMBLY, short

2шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

8

375122R91

SPARE PART PLATE W/FOUR PINS AND RING, 110668R1 Assembly, RH stabilizer

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

9

375121R91

SPARE PART PLATE W/FOUR PINS AND RING, 110668R1 Assembly, LH stabilizer

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

10

372740R91

SPARE PART LINK ASSEMBLY, stabilizer

1шт.

11

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Retaining, , stabilizer link #37, .300" Dia, E-Type

2шт.

12

375120R1

SPARE PART "D" rubber bumper

2шт.

13

375119R1

SPARE PART Rubber

2шт.

14

372741R91

SPARE PART BRACKET W/PIN ASSEMBLY, shock

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

2шт.

15

372751R91

SHOCK ABSORBER

1шт.

NUT, 3/8NF jam

2шт.

16

372738R91

SPARE PART ASSEMBLY, adjustor

1шт.

16

373565R91

KIT

STUD, 372738R91 w/Pin Assembly, adjustor

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

1/8" x 1", Type A

2шт.

17

372739R1

SPARE PART RH adjusting

1шт.

18

375124R91

KIT

SPRING W/PINS ASSEMBLY, RH rubber

1шт.

142521

HYD TUBE

1/4" x 1 1/4", Type A

4шт.

19

375123R91

KIT

SPRING W/PINS ASSEMBLY, LH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

20

372730R92

SPARE PART SUSPENSION ASSEMBLY, lower seat (Less Ref. Nos. 15 and 16)

1шт.

21

372749R91

SPARE PART ASSEMBLY, latch

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

1/8" x 1", Type A

1шт.

22

372750R1

SPARE PART Compression

1шт.

23

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

24

372747R91

KIT

SPACER W/PIN ASSEMBLY, rolled bushing - short

2шт.

25

372748R91

KIT

SPACER W/PIN ASSEMBLY, rolled bushing - long

2шт.

26

372746R91

SPARE PART SHAFT W/PINS ASSEMBLY, short link

2шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

1/4" x 1 1/4", Type A

1шт.

142522

BUSHING

SPARE PART PIN, 1/4 x 1-3/4" type #1 groove

1шт.

27

372745R91

SPARE PART RAIL ASSEMBLY, shirt and side (Composed of -

1шт.

142521

HYD TUBE

1/4" x 1 1/4", Type A

2шт.

142522

BUSHING

SPARE PART PIN

2шт.

375496R1

SPARE PART ROLLER

8шт.

375497R1

SPARE PART SHAFT

4шт.

PIN, 1/4 x 1-1/4" type #1 groove

2шт.

PIN, 1/4 x 1-3/4" type #1 groove

2шт.

28

372754R91

SPARE PART ASSEMBLY, seat

1шт.

SCREW, 3/8 x 1" cap

4шт.

29

372755R91

CUSHION

ASSEMBLY, back

1шт.

30

372753R91

CUSHION

ASSEMBLY, seat

1шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

WASHER, 13/32 x 13/16" x 16 ga.

4шт.

31

372752R91

SPARE PART FRAME AND CUSHION ASSEMBLY, seat upper

1шт.

625891R1

PIN,1/4" x 5/8"

1/2 x 5/8" headed

2шт.

PIN, 1/8 x 3/4" cotter

2шт.

32

375496R1

SPARE PART ROLLER, seat adjuster

8шт.

33

375497R1

SPARE PART SHAFT, seat adjuster roller

4шт.

373192R11

SPARE PART ASSEMBLY, latch hook spring (Illustrated with "Drawbar and Bail" unit of Fast-Hitch)

1шт.

372377R11

SPARE PART ASSEMBLY, rear light support (Illustrated with "Starting and Lighting")

1шт.

523440R1

SPARE PART Latch hook (Illustrated with "Drawbar and Bail" unit of Fast-Hitch)

1шт.

WASHER, 13/32 x 13/16" x 16 ga.

1шт.
