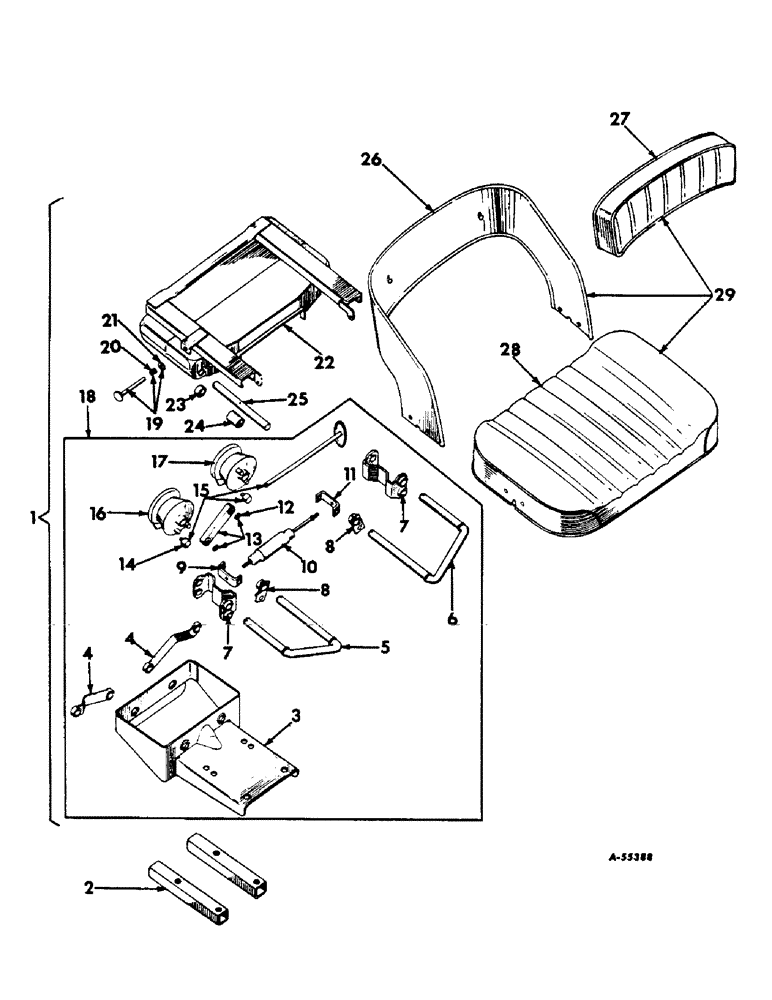

Запчасти Case IH 460 (219) - SEAT AND SUPPORTS, DELUXE VERTICAL ACTING SEAT, FARMALL 460 SERIES, 501 TO 16930 Seat & Supports

372372R91

SPARE PART PARTS ACCESSORY, deluxe vertical acting seat (Order 372372R92)

1шт.

1

372729R91

SUSPENSION

Seat (Order 372729R92)

1шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

16038R1

WASHER

17/32 x 1" x 11 ga

4шт.

2

Not Used

1шт.

3

372731R91

SPARE PART W/PINS ASSEMBLY (Order Kit, 375129R91 two Bumpers, 375119R1 two Nuts, 124925 and two Washers, 375120R1)

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

8шт.

4

372744R91

KIT

ARM W/PIN ASSEMBLY, spring

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

2шт.

5

372733R91

SPARE PART W/PINS ASSEMBLY, RH spring

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

6

372732R91

SPARE PART SHAFT W/PINS ASSEMBLY, LH spring

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

7

372743R91

SPARE PART LINK W/PIN ASSEMBLY, short

2шт.

PIN, 1/2 x 1-1/4" type #1 groove

2шт.

8

372734R91

SPARE PART LEVER W/PINS ASSEMBLY, shock

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

8шт.

9

372742R91

SPARE PART BRACKET W/PIN ASSEMBLY, RH shock

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

1шт.

10

372751R91

SHOCK ABSORBER

1шт.

NUT, 3/8NF

2шт.

WASHER, 3/8" lock

2шт.

11

372741R91

SPARE PART BRACKET W/PIN ASSEMBLY, LH shock

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

1шт.

12

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Retaining, , stabilizer link #37, .300" Dia, E-Type

2шт.

13

372740R91

SPARE PART LINK ASSEMBLY, stabilizer

1шт.

14

372739R1

SPARE PART RH adjusting

1шт.

15

372738R91

SPARE PART ASSEMBLY, adjustor

1шт.

15

373565R91

KIT

STUD, 372738R91 w/Pin Assembly, adjustor

1шт.

PIN, 1/8 x 1" type #1 groove

2шт.

16

372737R91

SPRING

W/PINS ASSEMBLY, RH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

17

372736R91

SPRING

W/PINS ASSEMBLY, LH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

18

372730R91

SPARE PART SUSPENSION ASSEMBLY, lower seat (Less Ref. No. 10) (Order 372730R92)

1шт.

19

372749R91

SPARE PART ASSEMBLY, latch

1шт.

PIN, 1/8 x 1" type #1 groove

1шт.

20

372750R1

SPARE PART Compression

1шт.

21

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

22

372745R91

SPARE PART RAIL W/PINS ASSEMBLY, skirt and side

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

2шт.

PIN, 1/4 x 1-3/4" type #1 groove

2шт.

23

372747R91

KIT

SPACER W/PIN ASSEMBLY, rolled bushing - short

2шт.

24

372748R91

KIT

SPACER W/PIN ASSEMBLY, rolled bushing - long

2шт.

25

372746R91

SPARE PART SHAFT w/PINS ASSEMBLY, short link

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

1шт.

PIN, 1/4 x 1-3/4" type #1 groove

1шт.

26

372754R91

SPARE PART ASSEMBLY, seat

1шт.

27

372755R91

CUSHION

ASSEMBLY, back

1шт.

28

372753R91

CUSHION

ASSEMBLY, seat

1шт.

SCREW, 3/8 x 1/2" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

WASHER, 13/32 x 13/16" x 16 ga.

4шт.

29

372752R91

SPARE PART FRAME AND CUSHION ASSEMBLY, seat upper

1шт.

625891R1

PIN,1/4" x 5/8"

1/2 x 5/8" headed

2шт.

1/8 x 3/4" cotter

2шт.
