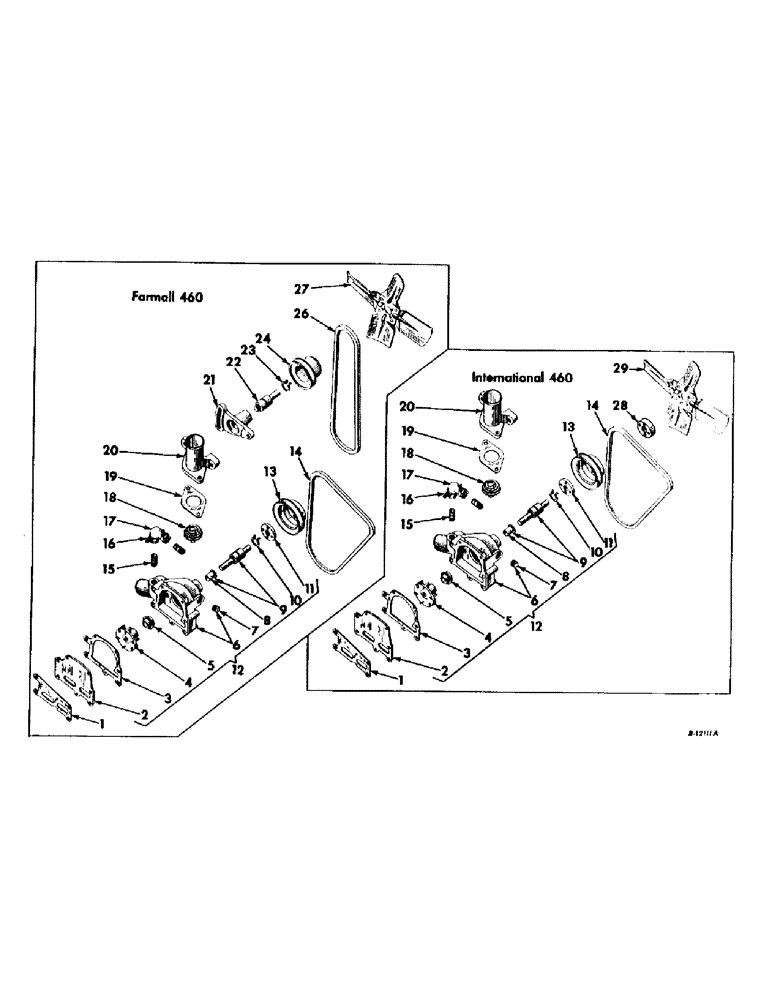

Запчасти Case IH 460 (049) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, CARBURETED ENGINE TRACTORS COOLING SYSTEM

1

69676R1

GASKET

water pump

1шт.

2

69675R1

PLATE

water pump

1шт.

441444

SPARE PART

1/4 x 1/2" slt-pan-hd mach

3шт.

3

69674R1

GASKET

water pump plate

1шт.

4

69670R1

TORQ CONV IMPELLER

water pump

1шт.

5

73296R92

SEAL

water pump

1шт.

6

318118R11

BODY

water pump

1шт.

.

3/8" sa-soc-hd pipe

1шт.

7

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

CI pipe

1шт.

8

71351R1

SLINGER

water pump

1шт.

9

ST680

SHAFT

water pump

1шт.

10

102069H

RING

bearing

1шт.

11

368501R2

HUB CAP

pulley

1шт.

12

318119R91

WATER PUMP

water

1шт.

12

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

12

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

.

SCREW, 3/8 x 2-1/4" hex-hd. cap

1шт.

.

SCREW, 3/8 x 2-1/2" hex-hd. cap

2шт.

.

WASHER, 3/8" lock

3шт.

13

368502R1

PULLEY

water pump

1шт.

.

SCREW, 1/4 x 1/2" hex-hd. cap

4шт.

.

WASHER, 1/4" lock

4шт.

14

403348R1

V-BELT,0.50" W x 46.00" L

Water pump and generator

1шт.

15

169193R1

PIPE

water by-pass (Gasoline only)

2шт.

16

240369R91

SPARE PART hose (Gasoline only)

2шт.

17

169192R1

HOSE

water by-pass (Gasoline only)

1шт.

18

108120R91

THERMOSTAT

(167 Degrees - 172 Degrees)

1шт.

19

368505R1

GASKET

water outlet

1шт.

20

368504R1

OUTLET

water

1шт.

.

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

.

SCREW, 7/16 x 2-1/2" hex-hd. cap

1шт.

.

WASHER, 7/16" lock

2шт.

21

368508R1

ADJUSTER

HEIGHT fan pulley

1шт.

.

SCREW, 7/16 x 1-1/4" hex-hd. cap

2шт.

.

WASHER, 7/16" lock

2шт.

.

WASHER, 1/2 x 1-1/4" x .083

2шт.

22

ST634

BEARING ASSY

1шт.

23

102069H

RING

bearing

1шт.

24

368509R1

PULLEY

fan

1шт.

26

403348R1

V-BELT,0.50" W x 46.00" L

Fan

1шт.

27

370781R91

SPARE PART fan

1шт.

.

SCREW, 1/4 x 1/2" hex-hd. cap

4шт.

.

WASHER, 1/4" lock

4шт.

28

269289R1

SPACER, fan

1шт.

29

82797R91

NO LONGER SERVICED

BLADE ASSEMBLY, fan (Optional with 86897R91)

1шт.

29

86897R91

FAN

(Optional with 82797R91)

1шт.

.

SCREW, 1/4 x 1-1/2" hex-hd. cap

4шт.

.

WASHER, 1/4" lock

4шт.

374544R92

KIT

PACKAGE, water pump service (Consists of -

1шт.

69674R1

GASKET

1шт.

69676R1

GASKET

1шт.

356223R1

GEAR, RING

RING, GEAR

1шт.

102069H

RING

1шт.

73296R92

SEAL

1шт.

ST680

SHAFT

1шт.
