(095) - ELECTRICAL SYSTEM, MAGNETO IGNITION, FOR CARBURETED ENGINE TRACTORS W/STARTING & LIGHTING SYSTEM

Запчасти Case IH 460 (095) - ELECTRICAL SYSTEM, MAGNETO IGNITION, FOR CARBURETED ENGINE TRACTORS W/STARTING & LIGHTING SYSTEM (06) - ELECTRICAL SYSTEMS

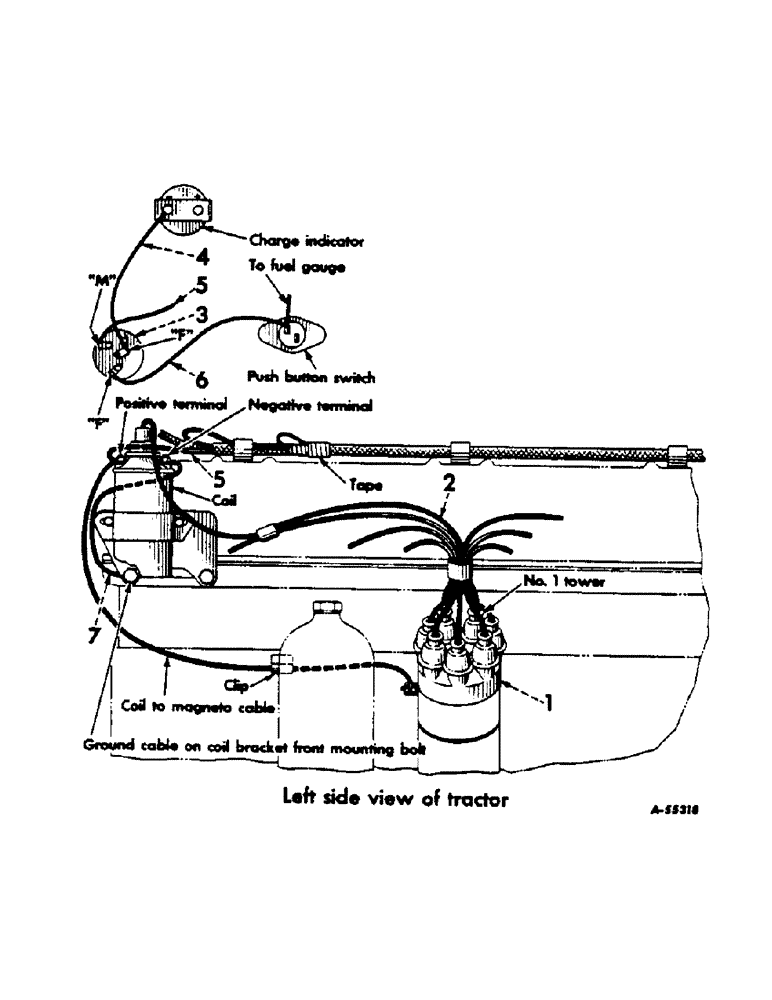

Схема запчастей Case IH 460 - (095) - ELECTRICAL SYSTEM, MAGNETO IGNITION, FOR CARBURETED ENGINE TRACTORS W/STARTING & LIGHTING SYSTEM (06) - ELECTRICAL SYSTEMS
2
1
4
3
5
7
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

373199R91

SPARE PART

1шт.

2

373217R91

SPARE PART spark plug

1шт.

3

373142R91

SPARE PART magneto ignition (For components see list of parts under details of "Magneto Ignition Switch")

1шт.

4

359380R91

CABLE

charge indicator to magneto ignition switch

1шт.

5

CABLE, magneto ignition switch to coil (Black) (Order Cable Harness, 370385R92, for Farmall 460 Series)

1шт.

5

CABLE, magneto ignition switch to coil (Black) (Order Cable Harness, 369611R92, for International 460 Series)

1шт.

6

367166R91

SPARE PART magneto ignition switch to push button switch

1шт.

7

373216R91

SPARE PART, Serial Range: coil-ground

1шт.

353937R1

CLIP

magneto

2шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

353936R2

GASKET

magneto

1шт.
