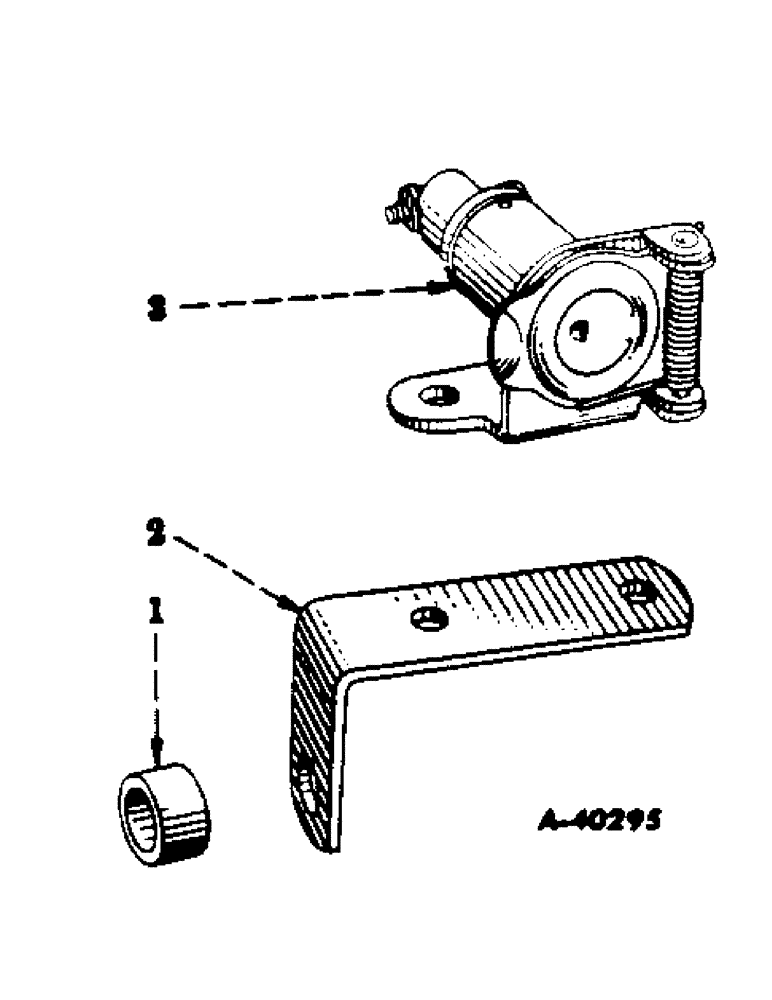

Запчасти Case IH 460 (085) - ELECTRICAL SYSTEM, ELECTRICAL BREAK-AWAY CONNECTOR SOCKET (06) - ELECTRICAL SYSTEMS

363923R91

SPARE PART electrical break-away connector socket (For tractors equipped with lighting and starting) (Consists of parts listed in this unit)

1шт.

1

364171R1

BRACKET

socket mounting bracket (9/16" long)

1шт.

2

364004R1

SPARE PART break-away connector socket mounting

1шт.

NUT, 5/16"

1шт.

NUT, 3/8" NF

1шт.

SCREW, 5/16 x 1-5/8" hex-hd. cap

1шт.

SCREW, 1/4 x 1-1/2" slt-truss-hd. mach.

2шт.

SCREW, 3/8 x 1" hex-hd. cap

1шт.

SCREW, 7/16 x 3-3/4" hex-hd. cap

1шт.

SCREW, 3/8 NF x 1-1/2" hex-hd. cap

1шт.

61401V

SPARE PART electrical break-away socket mounting

2шт.

Not required for use on these tractors but is supplied in the Break-away Connector Socket Package that is also available for other tractors.

1шт.

WASHER, 5/16" lock

1шт.

WASHER, 3/8" lock

1шт.

3

362002R92

SOCKET

electrical break-away connector

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 3/4" slt-truss-hd. mach.

2шт.

WASHER, 1/4" lock

2шт.

CABLE, break-away connector socket to rear light (Order Cable Assemby 358572R92, Terminal (No. 10) and Sleeve, 364003R1)

1шт.

CABLE, break-away connector socket to ground terminal (Order Cable Assembly 358572R92, Terminal (7/16") and Sleeve, 364003R1)

1шт.

358572R92

SPARE PART

1шт.

(To make two break-away connector socket cables from this cable, measure and cut length needed for each cable from each end terminal, then assemble one Sleeve, 364003R1 and one Terminal, No. 10 or 7/16" to complete each cable)

1шт.

364002R1

SPACER,3/8" Pipe x 1"

socket mounting bracket (1" long)

1шт.

364003R1

SPARE PART terminal insulating (For break-away connector socket cables)

2шт.
