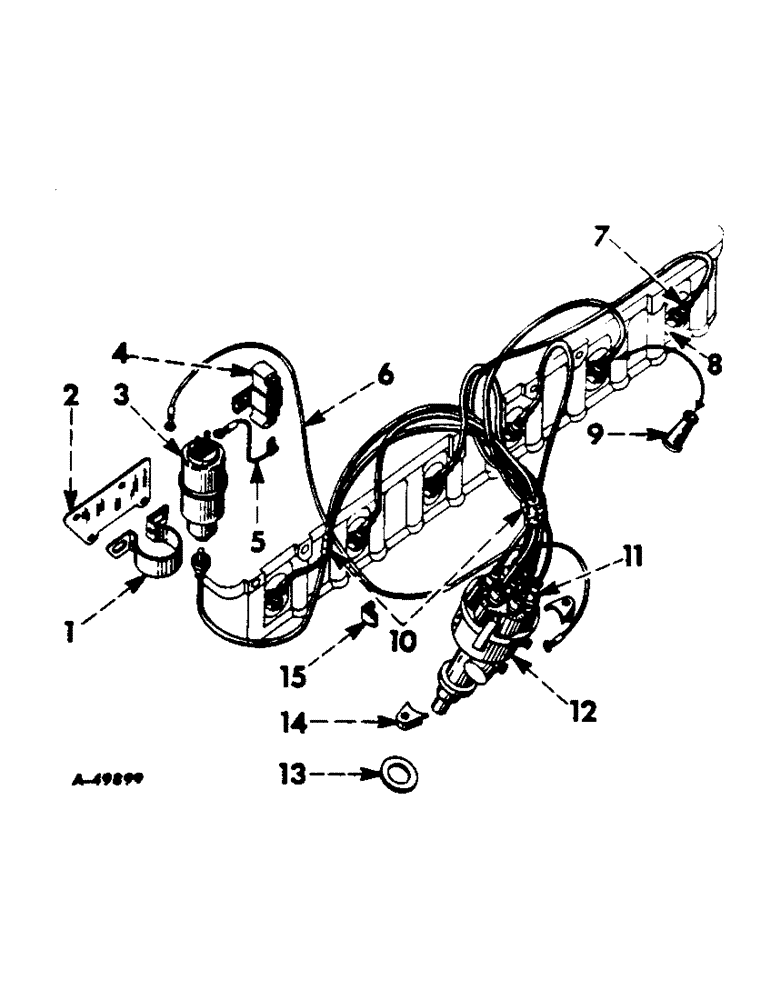

Запчасти Case IH 460 (065) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

358619R1

SPARE PART coil

1шт.

NUT, No. 10 NF cd-pltd. sq.

1шт.

SCREW, 5/16 x 1/2" hex-hd. cap

2шт.

SCREW, No. 10 NF x 1-1/4" slt-rd-hd. mach.

1шт.

WASHER, 11/32 x 11/16" x 16 ga.

2шт.

WASHER, No. 10 cd-pltd. lock

1шт.

2

370534R11

SPARE PART ignition coil

1шт.

SCREW, 7/16 x 1/2" hex-hd. cap

2шт.

3

368839R91

COIL

ignition - 12 R

1шт.

120614

NUT,Hex, #10 - 32

#10-32

2шт.

120217

LOCK WASHER,#10

LOCK, #10

2шт.

4

368573R91

RESISTOR

ignition coil

1шт.

5

370594R91

SPARE PART, Serial Range: coil-resistor

1шт.

6

368267R91

CABLE

SPARE PART coil to distributor primary

1шт.

7

360943R91

SPARK PLUG

w/Gasket, 37762H (Light or moderate service) (Champion D-23)

6шт.

7

353985R91

SPARK PLUG, w/Gasket, 37762H (Light or moderate service) (AC-C88)

6шт.

7

359277R91

SPARE PART w/Gasket, 37762H (Light or moderate service) (Auto-Lite BT-10)

6шт.

7

371522R91

SPARK PLUG

w/Gasket, 37762H (Intermediate service) (Champion D-16)

6шт.

7

360942R91

SPARK PLUG

w/Gasket, 37762H (Normal service) (Champion 8 com.)

6шт.

7

353982R91

SPARE PART w/Gasket, 37762H (Normal service) (AC-C85)

6шт.

7

359276R91

SPARK PLUG

w/Gasket, 37762H (Normal service) (Auto-Lite BT-8)

6шт.

7

361688R91

SPARK ARRESTER

w/Gasket, 37762H (Severe service) (Champion D-9)

6шт.

7

353983R91

SPARE PART w/Gasket, 37762H (Severe service) (AC-C83)

6шт.

7

359275R91

SPARE PART w/Gasket, 37762H (Severe service) (Auto-Lite BT-4)

6шт.

7

361686R91

SPARK PLUG

w/Gasket, 37762H (L.P. gas or extreme severe service) (Champion D-6)

6шт.

7

353986R91

SPARK PLUG

w/Gasket, 37762H (L.P. gas or extreme severe service) (AC-C81)

6шт.

7

359274R91

SPARE PART w/Gasket, 37762H (L.P. gas or extreme severe service) (Auto-Lite BT-3)

6шт.

8

37762H

GASKET

spark plug

1шт.

9

371430R1

INSULATOR

spark plug terminal

1шт.

10

368270R91

CABLE

spark plug (Consists of Six Spark Plug Cables. Coil to Distributor Cable and Eight Nipples, 251553R1)

1шт.

11

251553R1

BOOT

distributor cap terminal

1шт.

12

367839R92

DISTRIBUTOR

gasoline (For components see list of parts under details of "Distributor")

1шт.

371579R92

SPARE PART LP Gas (For components see list of parts under details of "Distributor")

1шт.

13

353936R2

GASKET

distributor

1шт.

14

353937R1

CLIP

distributor

2шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

15

370535R1

CLIP

coil to distributor cable

1шт.
