Запчасти Case IH 460 (044) - FUEL SYSTEM, VALVES, L. P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

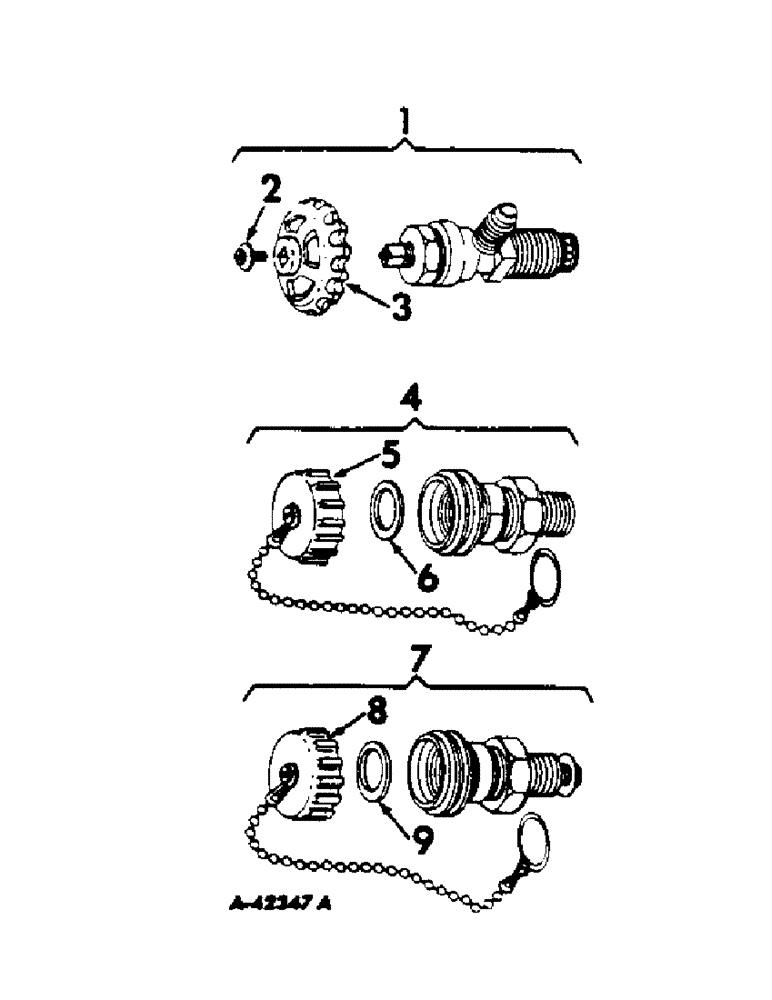

Схема запчастей Case IH 460 - (044) - FUEL SYSTEM, VALVES, L. P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM
8
4
1
9
6
3
2
5
7

Артикул

Название

Примечание

Количество

1

109850R91

VALVE W/EXCESS FLOW CHECK ASSEMBLY, service

2шт.

2

369044R91

SPARE PART handwheel

2шт.

3

369043R1

SPARE PART

2шт.

4

363688R91

SPARE PART 3/4NPT filler (Bastian Blessing Co.) (Optional with 363687R91)

1шт.

4

363687R91

SPARE PART 3/4NPT filler (Selwyn Pacific Co.) (Optional with 363688R91)

1шт.

5

369045R91

SPARE PART valve (Bastian Blessing Co.)

1шт.

5

369014R91

SPARE PART valve (Selwyn Pacific Co.)

1шт.

6

359825R1

SPARE PART cap

1шт.

7

109567R91

VALVE, vapor return (Bastian Blessing Co.) (Optional with 357064R92)

1шт.

7

357064R92

SPARE PART vapor return (Selwyn Pacific Co.) (Optional with 109567R91)

1шт.

8

369051R91

SPARE PART valve (Bastian Blessing Co.)

1шт.

8

359814R91

SPARE PART valve (Selwyn Pacific Co.)

1шт.

9

359815R1

SPARE PART cap

1шт.

Выбрано товаров: 13
