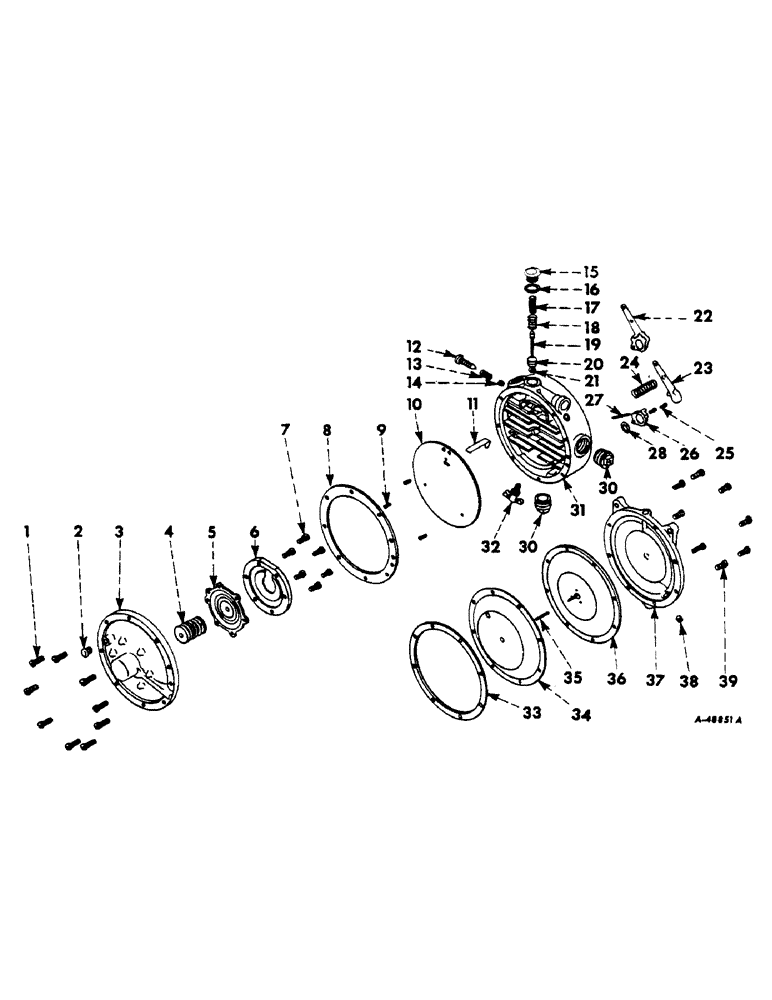

Запчасти Case IH 460 (043) - FUEL SYSTEM, FUEL REGULATOR, L. P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

371099R91

SPARE PART fuel (Liquefied petroleum gas)

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

3шт.

WASHER, 5/16" lock

3шт.

1

19270R1

SPARE PART No. 10NF x 5/8" slt-fil-hd. cd-pltd. mach. w/lock Washer

9шт.

2

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8" pipe (In vaporizer cover)

1шт.

3

277195R91

SPARE PART 13017R1 Assembly, vaporizer

1шт.

4

277196R91

SPARE PART high pressure

1шт.

5

277370R91

SPARE PART high pressure

1шт.

6

277197R1

SPARE PART high pressure diaphragm

1шт.

7

19270R1

SPARE PART No. 10NF x 5/8" stl-fil-hd. cd-pltd. mach. w/lock Washer

6шт.

8

277198R1

SPARE PART vaporizer cover

1шт.

9

277199R1

SPARE PART vaporizer partition plate

3шт.

10

277350R1

SPARE PART vaporizer partition

1шт.

11

277351R1

SPARE PART high pressure valve

1шт.

12

37179D

SPARE PART idle adjusting

1шт.

13

14529D

idle adjusting screw retainer spring

1шт.

14

277352R1

SPARE PART bleed, "B"

1шт.

15

277353R1

SPARE PART high pressure valve spring

1шт.

16

277354R1

SPARE PART high pressure valve spring retainer

1шт.

17

277355R1

high pressure valve

1шт.

18

277356R1

SPARE PART high pressure valve seat retainer

1шт.

19

277357R1

SPARE PART high pressure

1шт.

20

277358R91

SPARE PART high pressure valve

1шт.

21

359600R1

GASKET

high pressure valve

1шт.

22

VALVE ASSEMBLY, low pressure (Not serviced separately - order 277369R91)

1шт.

23

113443R91

LEVER ASSEMBLY, low pressure valve

1шт.

24

277360R1

SPARE PART low pressure valve

1шт.

25

19271R91

SPARE PART low pressure valve

2шт.

26

277361R1

SPARE PART low pressure valve

1шт.

27

277362R1

SPARE PART pivot

1шт.

28

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

low pressure valve

1шт.

30

113186

3/4" pipe

1шт.

31

BODY ASSEMBLY, regulator (Not serviced separately-order Regulator Assembly)

1шт.

32

114981

VALVE

drain

1шт.

33

64433D

SPARE PART low pressure partition plate

1шт.

34

277365R1

SPARE PART low pressure partition

1шт.

35

277366R1

SPARE PART diaphragm push

1шт.

36

277367R91

SPARE PART 277366R1 Assembly, low pressure

1шт.

37

277368R2

SPARE PART support

1шт.

38

118813

PLUG, 1/8" slt-hd. pipe

1шт.

39

19270R1

SPARE PART No. 10NF x 5/8" slt-fil-hd. cd-pltd. mach. (Support plate)

8шт.

373175R91

SPARE PART

1шт.

373173R1

SNAP RING,0.812", Int, #81

0.812", Int, #81

1шт.

27769R91

KIT, fuel regulator overhaul (Composed of -

1шт.

277367R91

SPARE PART

1шт.

277370R91

SPARE PART

1шт.

64433D

SPARE PART

1шт.

277198R1

SPARE PART

1шт.

277354R1

SPARE PART

1шт.

277351R1

SPARE PART

1шт.

277363R1

SPARE PART

1шт.

359600R1

GASKET

1шт.

277358R91

SPARE PART

1шт.

37179D

SPARE PART

1шт.

277199R1

SPARE PART

3шт.

19270R1

SPARE PART

23шт.

19271R1

SCREW

2шт.

277196R91

SPARE PART

1шт.

277355R1

SPRING

1шт.

277356R1

SPARE PART

1шт.

277360R1

SPARE PART

1шт.

113434R91

STRAINER

1шт.

277357R1

SPARE PART

1шт.

VALVE )

1шт.

NSS

1шт.
