Запчасти Case IH 460 (038) - FUEL SYSTEM, FUEL FILTER, L. P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

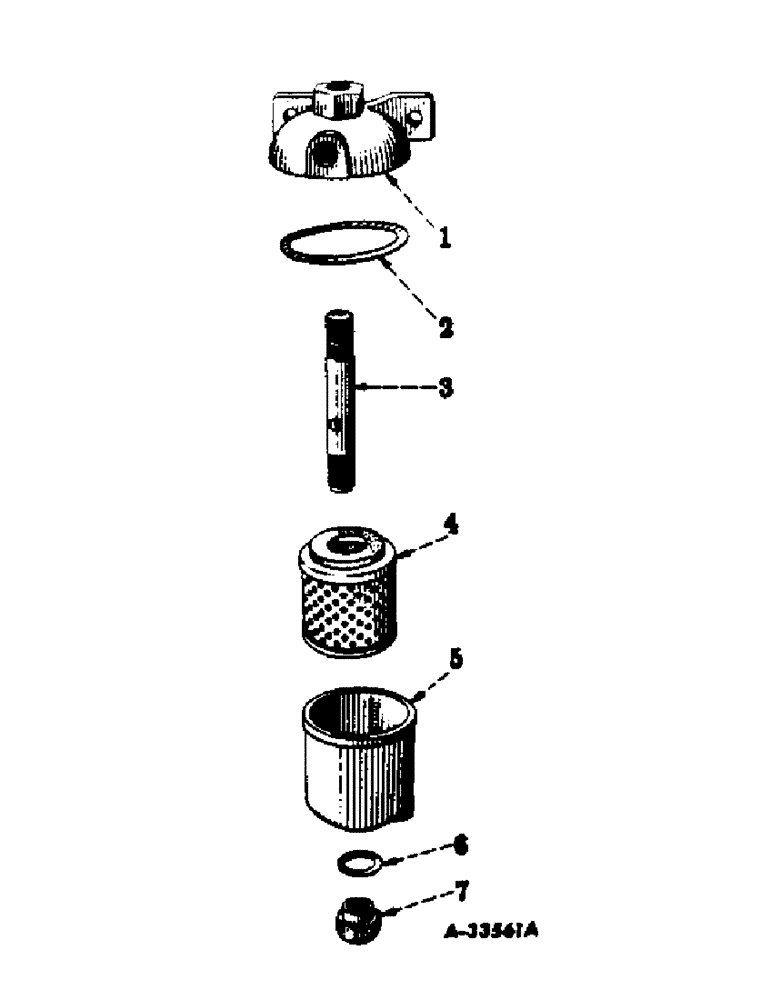

Схема запчастей Case IH 460 - (038) - FUEL SYSTEM, FUEL FILTER, L. P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM
1
6
3
7
5
2
4

Артикул

Название

Примечание

Количество

64147D

SPARE PART fuel

1шт.

1

NSS

NOT SOLD SEPARAT

TOP, filter (Not serviced separately order - Filter Assembly)

1шт.

2

64399D

ELEMENT

filter top to filter bottom

1шт.

3

64402D

SPARE PART filter

1шт.

4

64400DB

ELEMENT

64399D and Gasket, 64401D Assembly, filter

1шт.

5

NSS

NOT SOLD SEPARAT

BOTTOM, filter (Not serviced separately - order Filter Assembly)

1шт.

6

64401D

ELEMENT

filter bowl

1шт.

7

64403D

SPARE PART filter stud

1шт.

Выбрано товаров: 8
