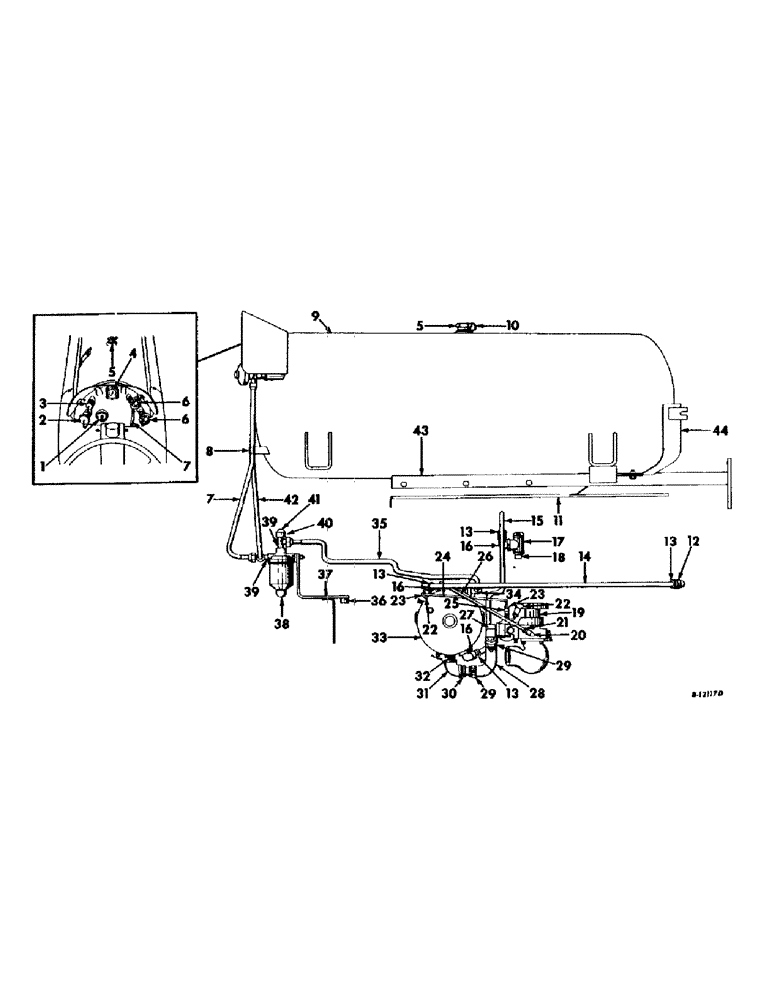

Запчасти Case IH 460 (036) - FUEL SYSTEM, FUEL TANK, SUPPORT AND PIPING, FARMALL 460 SERIES L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

1

357068R91

SPARE PART GAUGE W/DIAL, 369082R1, Keeper, 369083R1, Valve and Disc, 359830R91 Assembly, fixed liquid level (Selwyn Pacific Co.) (Optional with 363693R91)

1шт.

1

363693R91

SPARE PART GAUGE W/PLATE, 369049R1, Ring, 369050R1 and Stem, 369048R91 Assembly, fixed liquid level (Bastian Blessing Co.) (Optional with 357068R91)

1шт.

2

363688R91

SPARE PART 3/4NPT filler (Bastian Blessing Co.) (Optional with 363687R91) (For components see list of parts under details of "Valves")

1шт.

2

363687R91

SPARE PART 3/4NPT filler (Selwyn Pacific Co.) (Optional with 363688R91) (For components see list of parts under details of "Valves")

1шт.

3

109567R91

VALVE, vapor return (Optional with 357064R92) (For components see list of parts under detail of "Valves")

1шт.

3

357064R92

SPARE PART vapor return (Optional with 109567R91) (For components see list of parts under detail of "Valves")

1шт.

4

371707R91

SPARE PART 369381R91 and Gasket, 364263R1, liquid level, magnetic

1шт.

SCREW, 5/16 x 7/8" fil-hd. cap (Rochester)

4шт.

SCREW, 5/16 x 1" fil-hd. cap (Taylor)

4шт.

4

364263R1

SPARE PART liquid level gauge (Not illustrated) (Used with Gauge, 371707R91)

1шт.

4

369381R91

SPARE PART dial (Rochester) (Not illustrated) (Used with Gauge, 371707R91)

1шт.

SCREW, 6-32 x 1/4" pan-hd. rec. tapping

2шт.

5

363690R91

SPARE PART relief (Optional with 363689R91)

1шт.

5

363689R91

SPARE PART relief (Optional with 363690R91)

1шт.

6

109850R91

VALVE W/HANDWHEEL AND EXCESS FLOW CHECK ASSEMBLY, service (For components see list of parts under detail of "Valves")

2шт.

7

371666R11

SPARE PART filter to vapor valve fuel

1шт.

8

359511R1

SPARE PART fuel line

1шт.

SCREW, 1/4 x 5/8" hex-hd. cap

1шт.

9

371639R91

SPARE PART fuel assembly (Composed of -

1шт.

363692R1

SPARE PART

1шт.

363693R91

SPARE PART

1шт.

371707R91

SPARE PART

1шт.

109567R91

VALVE

1шт.

109850R91

VALVE

2шт.

363688R91

SPARE PART

1шт.

363690R91

SPARE PART

1шт.

TANK )

1шт.

NSS

1шт.

18601R1

NUT,7/16"-20, GC

7/16" elastic stop (Optional with 144420H)

4шт.

144420H

LOCK NUT,7/16"-20, GC

7/16" elastic stop (Optional with 18601R1)

4шт.

SCREW, 7/16 x 1-1/2" hex-hd. cap

4шт.

10

363692R1

SPARE PART rain relief valve (Optional with 368363R1)

1шт.

10

368363R1

CAP, rain relief valve (Optional with 363692R1)

1шт.

11

371670R11

SPARE PART heat

1шт.

SCREW, 5/16 x 3/8" hex-hd. cap

2шт.

12

19502R1

SPARE PART regulator to water pump line 45 degrees

1шт.

13

371217R1

NUT

coupling

4шт.

14

371106R11

SPARE PART 371217R1 Assembly, regulator to water pump water

1шт.

15

371105R11

SPARE PART 371217R1 Assembly, regulator to cylinder head water

1шт.

16

68134D

SPARE PART 90 degrees 90º x 1/2" NPT x 11/16"-16

3шт.

17

138105

TEE,1/2" NPT, Fem

1/2" pipe

1шт.

18

144610

PIPE

1/2 x 1-3/8" close pipe

1шт.

19

371087R91

SPARE PART (For components see list of parts under detail of "Carburetor")

1шт.

SCREW, 3/8 x 1-1/4' hex-hd. cap

2шт.

20

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

regulator to carburetor balance line

2шт.

21

369989R1

NUT

coupling

2шт.

22

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

1/8" x 90 degrees

2шт.

23

371215R1

SPARE PART coupling

4шт.

24

371104R11

SPARE PART 371215R1 Assembly regulator to carburetor idle

1шт.

25

373191R91

SPARE PART 19272R1, w/Nut, 371215R1 Assembly

1шт.

25

19272R1

TEE, 1/8" x 90 degree, two-way

1шт.

26

371103R11

SPARE PART 369989R1 Assembly regulator to carburetor balance

1шт.

27

188897R1

SPARE PART fuel hose

1шт.

28

371102R1

HOSE

fuel line

1шт.

29

39114H

CLAMP

fuel line hose

2шт.

30

188902R1

SPARE PART fuel hose

1шт.

31

119099

SPARE PART 3/4" x 90 degree pipe 90º, 3/4" NPT

1шт.

32

128067

BOLT

NIPPLE, 3/4 x 1-1/2" pipe

1шт.

33

371099R91

SPARE PART fuel (For components see list of parts under detail of "Regulator")

1шт.

SCREW, 5/16 x 1-1/8" hex-hd. cap

1шт.

SCREW, 5/16 x 1-1/2" hex-hd. cap

2шт.

86224H

SPACER,1/4" Pipe x 3/8"

2шт.

WASHER, 5/16"

3шт.

34

109563R1

ELBOW

90 degree flared tube

1шт.

35

371660R11

SPARE PART regulator to fuel filter

1шт.

36

371658R1

SPARE PART filter mounting bracket

1шт.

37

371656R11

SPARE PART fuel filter and voltage regulator mounting

1шт.

SCREW, 7/16 x 1-1/2" hex-hd. cap

2шт.

38

64147D

SPARE PART fuel (For components see list of parts under detail of "Fuel Filter")

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

39

364958R1

TEE, right angle, two-way flared tube

2шт.

40

357078R1

SPARE PART fuel line tee cap (Optional with 361533R1)

1шт.

40

361533R1

SPARE PART fuel line tee cap (Optional with 357078R1)

1шт.

41

357495R1

SPARE PART fuel line tee

1шт.

42

371665R11

SPARE PART filter to liquid valve fuel

1шт.

43

371650R11

SPARE PART fuel tank support LH

1шт.

43

371651R11

SPARE PART fuel tank support RH

1шт.

NUT, 3/8"

6шт.

SCREW, 3/8 x 1" hex-hd. cap

6шт.

SCREW, 7/16 x 1" hex-hd. cap

4шт.

WASHER, 13/32 x 13/16" x 15 ga.

12шт.

WASHER, 3/8" lock

6шт.

44

371673R11

SPARE PART front heat

1шт.

5/16 x 3/8" hex-hd. cap

1шт.

371101R1

SPACER

fuel regulator (Not illustrated)

2шт.
