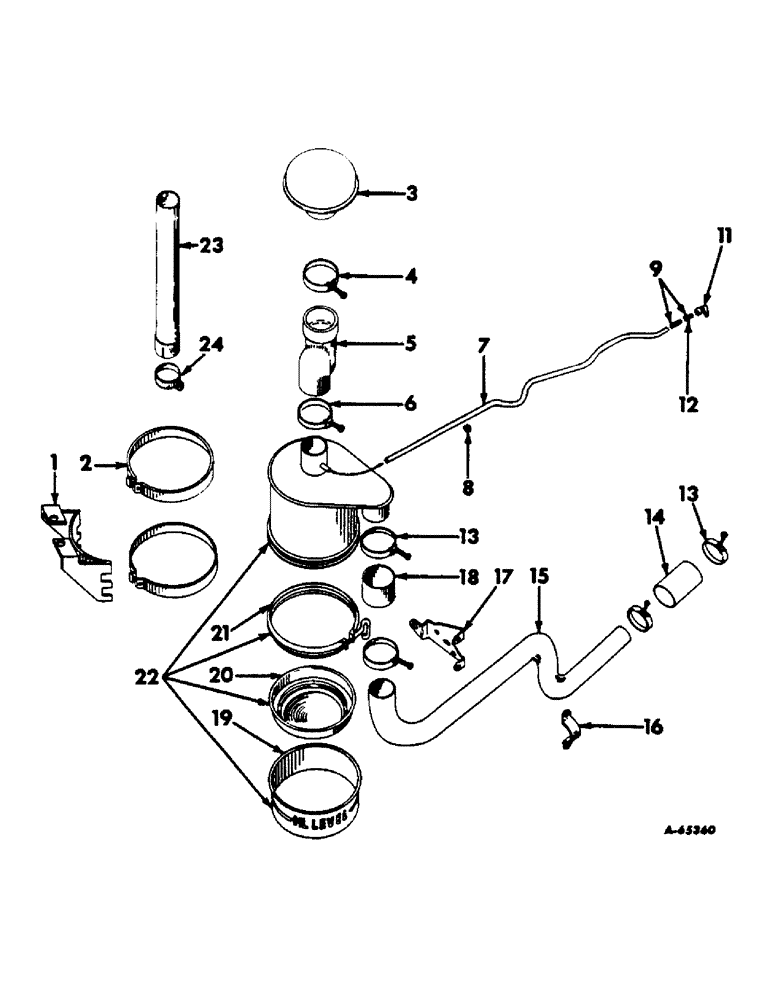

Запчасти Case IH 460 (030) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, FARMALL 460 SERIES CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM

1

370223R1

SPARE PART air cleaner

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3/4" hex-hd. cap

2шт.

2

60678D

BAND, air cleaner mounting

2шт.

NUT, 5/16" sq.

2шт.

SCREW, 5/16 x 1-1/2" slt-fil-hd. mach.

2шт.

3

365316R91

CYLINDER END CAP

air cleaner intake

1шт.

4

29978D

CLAMP

air cleaner intake hose upper

1шт.

5

370224R1

SPARE PART air cleaner intake

1шт.

6

39198H

SPARE PART air cleaner intake hose lower

1шт.

7

371306R1

HOSE ASSY.

air cleaner to valve cover (Gasoline)

1шт.

7

372621R1

SPARE PART air cleaner to valve cover (L. P. gas)

1шт.

8

138963R1

GROMMET, air cleaner to valve cover hose

1шт.

9

364252R11

SPARE PART breather

1шт.

11

365781R1

SPARE PART breather pipe

1шт.

12

278953R91

NUT

breather pipe elbow

1шт.

13

29980D

SPARE PART air cleaner outlet pipe hose

1шт.

14

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Outlet Pipe - Carburetor End

1шт.

15

370226R1

SPARE PART air cleaner outlet (Gasoline)

1шт.

15

371685R1

SPARE PART air cleaner outlet (L.P. Gas)

1шт.

16

370228R1

SPARE PART air cleaner outlet pipe support

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

17

370227R1

SPARE PART air cleaner outlet pipe

1шт.

18

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Outlet Pipe

1шт.

19

372489R1

BOWL

oil

1шт.

20

372488R1

CUP

nner oil

1шт.

21

372487R91

SPARE PART oil cup retaining

1шт.

22

370453R91

SPARE PART air

1шт.

23

376351R1

AIR INTAKE TUBE,40575" OD, 24" Length

air extension (Also order Ref. 24 and attaching hardware if complete Field Attachment is desired)

1шт.

24

31790DA

CLAMP

air extension pipe

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.
