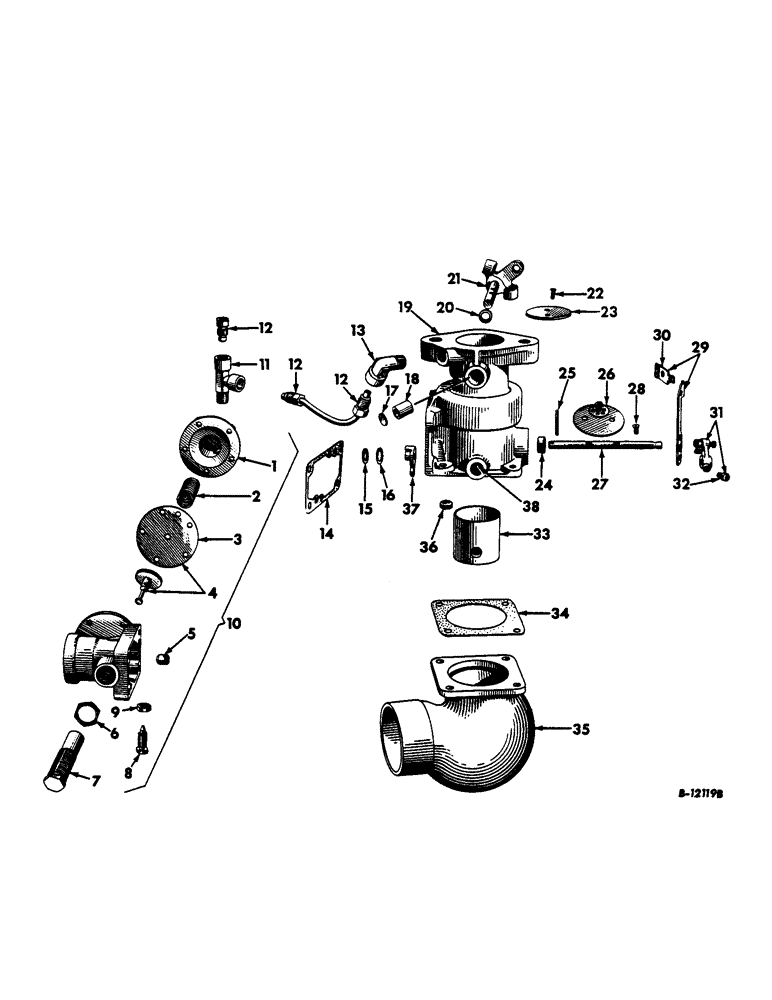

Запчасти Case IH 460 (026) - FUEL SYSTEM, CARBURETOR, L. P. GAS (02) - FUEL SYSTEM

371087R92

SPARE PART

1шт.

1

359623R1

SPARE PART economizer

1шт.

SCREW, No. 8 x 5/8" slt-fil-hd. cd-pltd. mach.

5шт.

WASHER, No. 8 cd-pltd. lock

5шт.

2

359622R1

SPARE PART economizer

1шт.

3

113504R1

SPARE PART economizer

1шт.

4

359621R91

SPARE PART economizer

1шт.

5

368680R1

SPARE PART economizer bleed (Not included in Reference 10)

1шт.

6

56430D

SPARE PART fuel adjusting screw lock

1шт.

7

56429D

SPARE PART fuel adjusting

1шт.

8

359620R1

SPARE PART starting adjusting

1шт.

9

113506R1

NUT, starting adjusting screw lock

1шт.

10

359618R91

SPARE PART gas (Less Ref. 5)

1шт.

SCREW, No. 12 x 7/8" slt-fil-hd. cd-pltd. mach.

4шт.

WASHER, No. 12 cd-pltd. light lock

4шт.

11

19272R1

TEE, 1/8 x 90 degree two-way (For 3/16 tube)

1шт.

11

373191R91

SPARE PART 371215R1 Assembly, two-way (For 3/16 tube)

1шт.

12

371215R1

SPARE PART coupling

3шт.

13

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

1/8 x 90 degree (For 3/16 tube)

1шт.

14

359624R1

SPARE PART inlet and economizer

1шт.

15

37183D

SPARE PART valve lever

1шт.

16

359615R1

SPARE PART spring

1шт.

17

47856H

PLUG, 1/2" brs. expansion

1шт.

18

37024D

SPARE PART throttle bearing

2шт.

19

374862R91

SPARE PART partial (Composed of -

1шт.

BODY (NSS)

1шт.

37024D

SPARE PART

2шт.

359611R1

SPARE PART

1шт.

64835D

SPARE PART

1шт.

64837D

SPARE PART

1шт.

13123D

SPARE PART

1шт.

47856H

PLUG

1шт.

56370D

SPARE PART

2шт.

373187R91

SPARE PART

1шт.

20

64837D

SPARE PART throttle shaft

1шт.

21

373187R91

SPARE PART throttle

1шт.

SCREW, No. 10NF x 5/8" slt-fil-hd. cd-pltd. mach.

1шт.

22

56370D

SPARE PART throttle shaft

2шт.

23

64824D

SPARE PART throttle C-221, Serial Range: 501-18145

1шт.

23

359611R1

SPARE PART throttle C-221 18146 up

1шт.

24

58899D

SPARE PART dust

1шт.

25

359616R1

SPARE PART valve lever

1шт.

26

359613R1

DISC ASSEMBLY, spring loaded choke

1шт.

27

359612R1

SPARE PART choke

1шт.

28

56365D

SPARE PART choke shaft

2шт.

29

58889D

SPARE PART choke tube

1шт.

SCREW, No. 8 x 1/4" slt. binding hd. cd-pltd. mach.

2шт.

30

56389D

SPARE PART choke tube

1шт.

NUT, No. 10 NF

1шт.

SCREW, No. 10 NF x 3/8" slt-fil-hd. cd-pltd. mach.

1шт.

31

275583R91

SPARE PART choke

1шт.

32

36756D

SPARE PART choke lever set

1шт.

33

373938R1

SPARE PART

1шт.

SCREW, No. 12 x 3/4" slt-fil-hd. cd-pltd. mach.

1шт.

WASHER, No. 12 cd-pltd. light lock

1шт.

34

359627R1

SPARE PART air intake elbow

1шт.

35

373190R1

SPARE PART air intake

1шт.

SCREW, No. 12 x 5/8" slt-fil-hd. cd-pltd. mach.

4шт.

WASHER, No. 12 cd-pltd. light lock

4шт.

36

13123D

SPARE PART 3/16" brs. expansion

1шт.

37

359614R1

SPARE PART valve

1шт.

38

64835D

SPARE PART balance tube

1шт.
