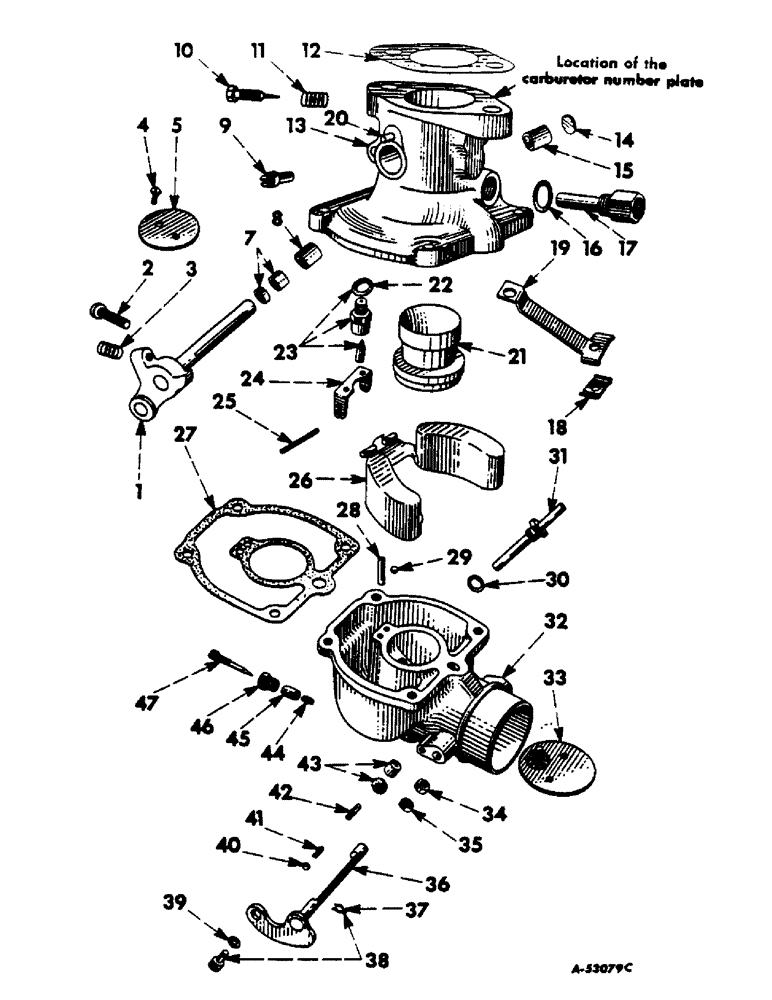

Запчасти Case IH 460 (025) - FUEL SYSTEM, CARBURETOR, GASOLINE, I. H. 1-1/4 INCH UPDRAFT (02) - FUEL SYSTEM

367258R92

CARBURETOR

gasoline

1шт.

1

368139R91

SHAFT

throttle

1шт.

2

132128

SPARE PART throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

idle throttle adjustment retainer

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

370862R1

SPARE PART throttle

1шт.

7

378984R91

SEAL PACKAGE

throttle shaft dust

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

9

368142R1

SPARE PART idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

31336D

GASKET

carburetor (Not included in carburetor assembly)

1шт.

13

368147R21

SPARE PART throttle (Composed of -

1шт.

368147R2

BODY (NSS)

1шт.

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

2шт.

45110D

PIN

1шт.

32611D

SPARE PART (NSS)

1шт.

47393D

PLUG (NSS)

1шт.

57956D

PLUG

1шт.

378984R91

SEAL PACKAGE

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

2шт.

16

18377D

GASKET

strainer screen retainer

1шт.

17

29902DX

SCREEN

strainer screen

1шт.

18

32596D

FASTENER

starting shutter control

1шт.

NUT, No. 10 NF square cd-pltd.

1шт.

SCREW, No. 10 NF x 5/8" slt-fil-hd. mach. cd-pltd.

1шт.

WASHER, No. 10 cd-pltd. lock

1шт.

19

368146R11

SUPPORT

w/Clamp, 32956D assembly starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

368148R1

SPARE PART double

1шт.

21

47407D27

MAKING-UP

single

1шт.

Part of CARBURETOR single venturi packages

1шт.

22

25948D

GASKET

needle valve cage

1шт.

23

47396DX45

JET

needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

SCREW, No. 4 x 5/16" slt-rd-hd. mach. cd-pltd.

2шт.

WASHER, No. 4 cd-pltd. lock

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

1шт.

27

47388DA

GASKET

fuel bowl

1шт.

28

49798D75

JET

idle metering #75

1шт.

29

35606D55

BLEED, main air

1шт.

Used with 367258R91 CARBURETOR

1шт.

29

35606D52

SPARE PART main air

1шт.

Used with 367258R92 CARBURETOR

1шт.

30

251583R1

WASHER

metering nozzle

1шт.

31

368150R1

SPARE PART metering

1шт.

Used with 367258R91 CARBURETOR

1шт.

31

374328R1

SPARE PART metering

1шт.

Used with 367258R92 CARBURETOR

1шт.

31

376441R1

NOZZLE INJECTION

metering

1шт.

Part of CARBURETOR single venturi packages

1шт.

32

368149R91

SPARE PART fuel (Composed of -

1шт.

Used with 367258R91 CARBURETOR

1шт.

35606D55

BLEED

1шт.

364261R1

BOWL (NSS)

1шт.

27445DB

FILLER

(NSS)

1шт.

351588R1

PIN

1шт.

57957D

PLUG,Exp, 7/16"

(NSS)

1шт.

32611D

SPARE PART (NSS)

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

1шт.

45149DA

SEAL

1шт.

56611DA

SPARE PART

1шт.

32

372720R12

SPARE PART fuel (Composed of -

1шт.

Used with 367258R92 CARBURETOR

1шт.

372720R1

BOWL (NSS)

1шт.

27445DB

FILLER

(NSS)

1шт.

351588R1

PIN

1шт.

57957D

PLUG,Exp, 7/16"

(NSS)

1шт.

32611D

SPARE PART (NSS)

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

1шт.

45149DA

SEAL

1шт.

SCREW, 1/4 x 7/8" hex-hd. cd-pltd. cap

4шт.

WASHER, 1/4" cd-pltd. lock

4шт.

PLUG, 1/8" sq-hd. cd-pltd. pipe

1шт.

33

357002R12

SHUTTER

starting

1шт.

SCREW, No. 6 x 1/4" slt- rd-hd. mach. cd-pltd.

2шт.

WASHER, No. 6 cd-pltd. lock

2шт.

34

45149DA

SEAL

butterfly dust

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

dust seal

1шт.

36

368145R91

SPARE PART 64283DBX assembly, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

SCREW, No. 10 NF x 5/8" fil-hd. mach. cd-pltd.

1шт.

38

64283DBX

PIVOT ASSY.

starting shutter lever

1шт.

39

32592D

WASHER

starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

drip hole filler replacement

1шт.

44

56611DA

SPARE PART fuel adjustment screw - .046

1шт.

Used with 367258R91 CARBURETOR

1шт.

44

374326R1

SPARE PART fuel adjustment screw - .045

1шт.

Used with 367258R92 CARBURETOR

1шт.

44

376440R1

BIT

fuel adjustment screw - .054

1шт.

Part of CARBURETOR single venturi packages

1шт.

45

24703DA

PACKING

fuel adjusting screw (Optional with 67266DX)

1шт.

45

67266DX

PACKING

fuel adjusting screw (Optional with 24703DA)

1шт.

46

24687DA

NUT,7/16" - 32 NPT

fuel adjusting screw packing

1шт.

47

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

fuel adjusting

1шт.

Used with 367258R91 CARBURETOR

1шт.

47

374327R1

ADJUSTMENT SCREW,Sl Str Knurled Hd, 1/4" - 32 x 1.54", SST

fuel adjusting

1шт.

Used with 367258R92 CARBURETOR

1шт.

369834R1

SPARE PART carburetor drip (International 460)

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

NUT, 1/4"

2шт.

376435R91

CARBURETOR

carburetor single venturi (Consists of -

1шт.

Used with 367258R91 CARBURETOR

1шт.

35606D52

SPARE PART

1шт.

372720R1

BOWL (NSS)

1шт.

27445DB

FILLER

(NSS)

1шт.

31336D

GASKET

1шт.

47388DA

GASKET

1шт.

251583R1

WASHER

1шт.

376441R1

NOZZLE INJECTION

1шт.

24687DA

NUT,7/16" - 32 NPT

1шт.

24703DA

PACKING

1шт.

351588R1

PIN

1шт.

32611D

SPARE PART (NSS)

2шт.

57957D

PLUG,Exp, 7/16"

(NSS)

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

1шт.

374327R1

ADJUSTMENT SCREW,Sl Str Knurled Hd, 1/4" - 32 x 1.54", SST

1шт.

45149DA

SEAL

1шт.

376440R1

BIT

1шт.

47407D27

MAKING-UP

1шт.

376436R91

CARBURETOR

PACKAGE, carburetor single venturi (Consists of -

1шт.

Used with 367258R92 CARBURETOR

1шт.

31336D

GASKET

1шт.

47388DA

GASKET

1шт.

251583R1

WASHER

1шт.

376441R1

NOZZLE INJECTION

1шт.

376440R1

BIT

1шт.

47407D27

MAKING-UP

1шт.
