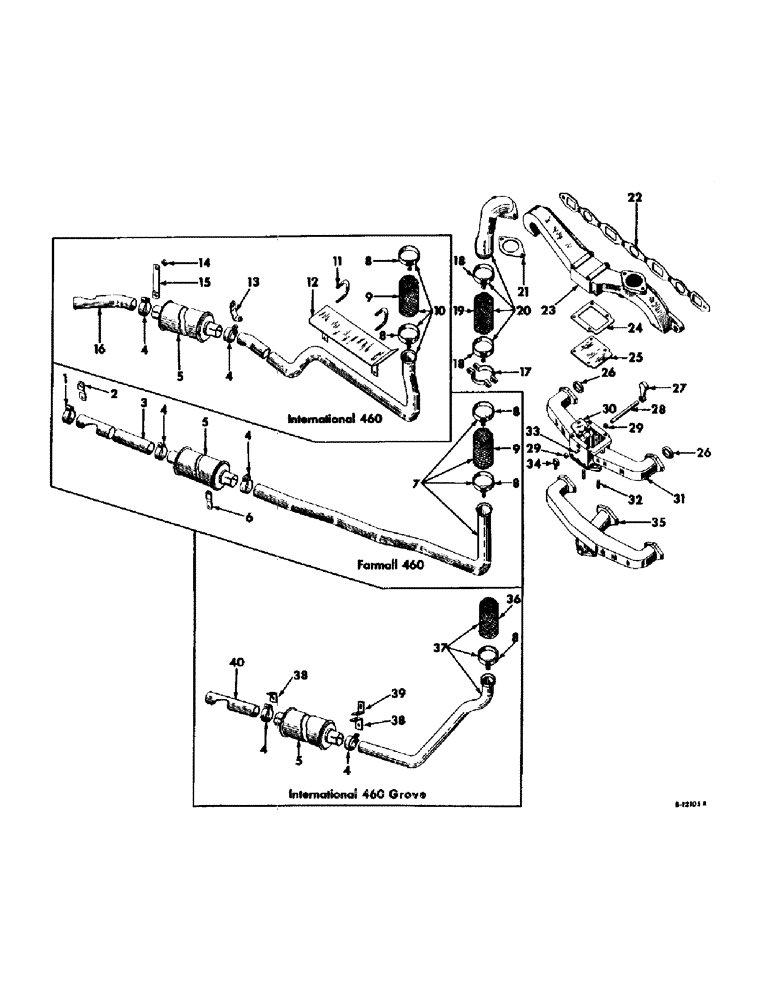

Запчасти Case IH 460 (016) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE

1

372102R1

SPARE PART CLAMP, tail pipe

1шт.

.

93082H

NUT

NUT, tail pipe clamp

1шт.

.

SCREW, 3/8 NF x 1-1/2" hex-hd. cap

1шт.

2

372101R1

SPARE PART SUPPORT, tail pipe clamp

1шт.

.

SCREW, 3/4 x 1" hex-hd. cap

1шт.

3

372100R1

SPARE PART PIPE, tail

1шт.

4

48889DA

CLAMP

CLAMP, exhaust muffler

2шт.

.

93082H

NUT

NUT, exhaust muffler clamp

2шт.

.

SCREW, 3/8 NF x 1-1/2" hex-hd. cap

2шт.

5

371039R91

MUFFLER

MUFFLER, exhaust

1шт.

5

371039R91GV

MUFFLER

Value, Muffler

1шт.

6

372099R1

SPARE PART SUPPORT, muffler clamp - front

1шт.

7

372097R11

SPARE PART PIPE ASSEMBLY, exhaust

1шт.

8

46364H

CLAMP

CLAMP, gasketing tape

2шт.

9

372772R1

SPARE PART TAPE, exhaust pipe gasketing

1шт.

10

369284R11

PIPE

PIPE ASSEMBLY, exhaust

1шт.

11

373515R1

SPARE PART U-BOLT, exhaust pipe heat shield (L. P. Gas)

2шт.

.

NUT, 1/4"

4шт.

12

373250R11

SPARE PART SHIELD ASSEMBLY, exhaust pipe heat (L. P. Gas)

1шт.

13

369286R1

SUPPORT

SUPPORT, muffler front

1шт.

14

369324R1

SPARE PART SPACER, muffler rear support

1шт.

15

369287R1

SUPPORT

SUPPORT, muffler rear

1шт.

16

369288R1

PIPE

PIPE, tail

1шт.

17

369283R1

CLAMP

CLAMP, exhaust pipe

2шт.

.

NUT, 5/16"

2шт.

.

SCREW, 5/16 x 1-3/4" hex-hd. cap

2шт.

18

29978D

CLAMP

CLAMP, gasketing tape

2шт.

19

372772R1

SPARE PART TAPE, exhaust pipe elbow gasketing

1шт.

20

369280R11

SPARE PART ELBOW ASSEMBLY, exhaust

1шт.

.

SCREW, 3/8 x 1" hex-hd. cap

2шт.

21

369282R1

GASKET

GASKET, exhaust pipe elbow

1шт.

22

173192R1

GASKET

GASKET, intake and exhaust manifold

1шт.

23

368550R11

MANIFOLD

MANIFOLD ASSEMBLY, exhaust

1шт.

.

PIN, 3/16 x 1/2" taper groove (Manifold drain hole)

1шт.

.

SCREW, 3/8 x 1-1/4" hex-hd. cap

6шт.

.

SCREW, 3/8 x 1-1/2" hex-hd. cap

2шт.

.

SCREW, 3/8 x 3" hex-hd. cap

4шт.

.

127507H

WASHER

WASHER, 13/32 x 7/8 x 7 ga.

8шт.

24

85868R1

GASKET

GASKET, intake to exhaust manifold

1шт.

25

371098R1

SPARE PART COVER, exhaust manifold (L. P. Gas)

1шт.

.

NUT, 3/8"

4шт.

.

SCREW, 3/8 x 3-1/8" hex-hd. cap

4шт.

26

98573HA

GUIDE

PILOT, intake manifold

2шт.

27

85699R1

WEIGHT

WEIGHT, manifold heat control

1шт.

28

82959R1

SHAFT

SHAFT, manifold heat control valve

1шт.

29

69443R1

BUSHING

BUSHING, manifold heat control

2шт.

30

85700R1

VALVE

VALVE, manifold heat control

1шт.

31

367261R1

MANIFOLD ASSEMBLY, intake (Gasoline) (Composed of -

1шт.

.

69443R1

BUSHING

BUSHING

2шт.

.

367261R1

MANIFOLD (NSS)

1шт.

.

141159

SPARE PART

PIN

1шт.

.

103865

PLUG

1шт.

.

82959R1

SHAFT

SHAFT

1шт.

.

82958R2

VALVE SPRING

SPRING

1шт.

.

12215D

STUD

STUD

2шт.

.

85700R1

VALVE

VALVE

1шт.

.

85699R1

WEIGHT

WEIGHT)

1шт.

32

12215D

STUD

STUD, carburetor

2шт.

.

NUT, 3/8 NF

2шт.

.

WASHER, 3/8 lock

2шт.

33

141159

SPARE PART

PIN, 3/16 x 1" dowel

1шт.

34

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

35

371097R11

SPARE PART MANIFOLD, w/Plug Assembly, intake (L. P. Gas)

1шт.

.

PLUG, 1/8" sq-hd. pipe

1шт.

36

357757R1

SPARE PART TAPE, exhaust pipe gasketing

1шт.

37

377368R11

SPARE PART PIPE ASSEMBLY, exhaust

1шт.

38

377370R1

SPARE PART SUPPORT, muffler

2шт.

.

NUT, 3/8"

2шт.

.

SCREW, 3/8 x 3/4" cap

2шт.

.

369324R1

SPARE PART SPACER, rear support

1шт.

39

377372R1

SPARE PART BRACKET, exhaust pipe front

1шт.

40

377371R1

SPARE PART PIPE, tail

1шт.
