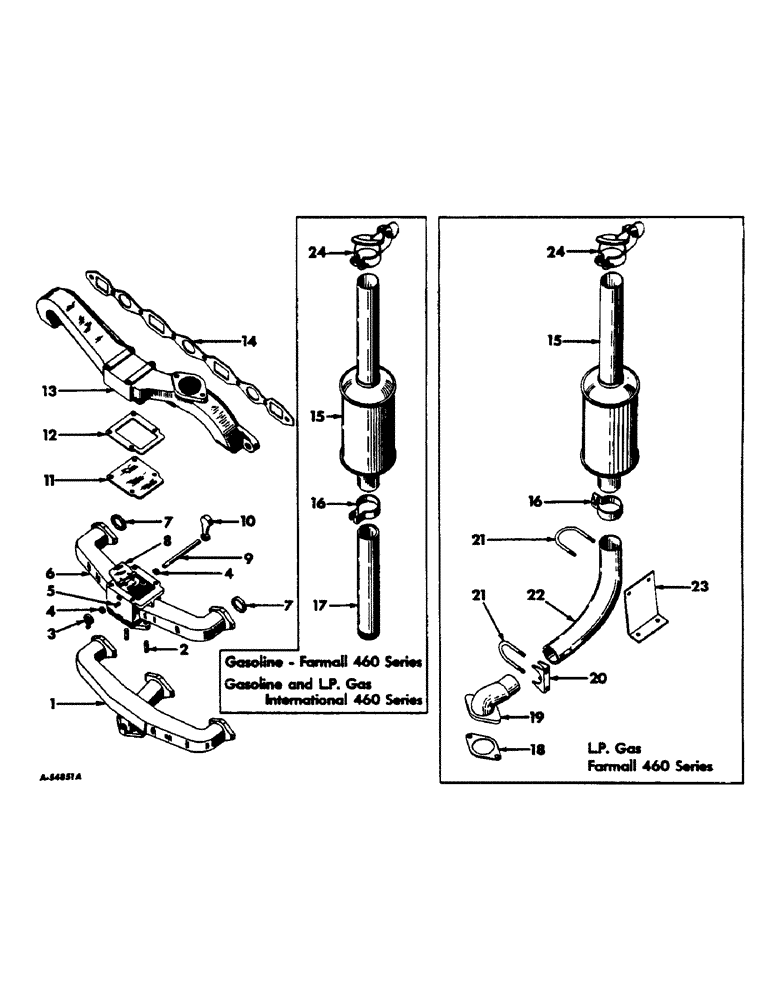

Запчасти Case IH 460 (015) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/VERTICALLY MOUNTED EXHAUST MUFFLER (01) - ENGINE

1

371097R11

SPARE PART w/Plug Assembly, intake (L. P. Gas)

1шт.

PLUG, 1/8" sq-hd. pipe

1шт.

2

12215D

STUD

carburetor

2шт.

NUT, 3/8 NF

2шт.

WASHER, 3/8 lock

2шт.

3

82958R2

VALVE SPRING

thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

141159

SPARE PART

3/16 x 1" dowel

1шт.

6

367261R1

MANIFOLD ASSEMBLY, intake (Composed of -

1шт.

69443R1

BUSHING

2шт.

367261R1

MANIFOLD (NSS)

1шт.

141159

SPARE PART

PIN

1шт.

103865

PLUG

1шт.

82959R1

SHAFT

1шт.

82958R2

VALVE SPRING

1шт.

12215D

STUD

2шт.

85700R1

VALVE

1шт.

85699R1

WEIGHT

1шт.

PLUG, 1/8 sq-hd. pipe

1шт.

7

98573HA

GUIDE

intake manifold

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

SPARE PART exhaust manifold (L. P. Gas)

1шт.

NUT, 3/8"

4шт.

SCREW, 3/8 x 3-1/8" hex-hd. cap

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

368550R11

MANIFOLD

exhaust

1шт.

PIN, 3/16 x 1/2" taper groove (Manifold drain hole)

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cap

6шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

2шт.

SCREW, 3/8 x 3" hex-hd. cap

4шт.

127507H

WASHER

13/32 x 7/8 x 7 ga.

8шт.

14

173192R1

GASKET

intake and exhaust manifold

1шт.

15

370644R91

MUFFLER

exhaust

1шт.

16

350602R1

CLAMP

exhaust muffler

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/8" hex-hd cap

1шт.

WASHER, 3/8" lock

1шт.

17

369613R1

PIPE

exhaust (Farmall 460 Series)

1шт.

17

370643R1

PIPE

exhaust (International 460 Series)

1шт.

18

369282R1

GASKET

exhaust pipe elbow

1шт.

19

371635R1

SPARE PART exhaust pipe

1шт.

SCREW, 3/8 x 1" hex-hd., cap

2шт.

20

371637R1

SPARE PART exhaust pipe

1шт.

21

371636R1

SPARE PART exhaust pipe

1шт.

NUT, 5/16" bes.

4шт.

WASHER, 11/32 x 11/16" x 16 ga.

4шт.

22

371634R1

PIPE

exhaust

1шт.

23

371638R1

SPARE PART exhaust pipe

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 1" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

24

283280R91

CAP

(L. P. Gas)

1шт.
