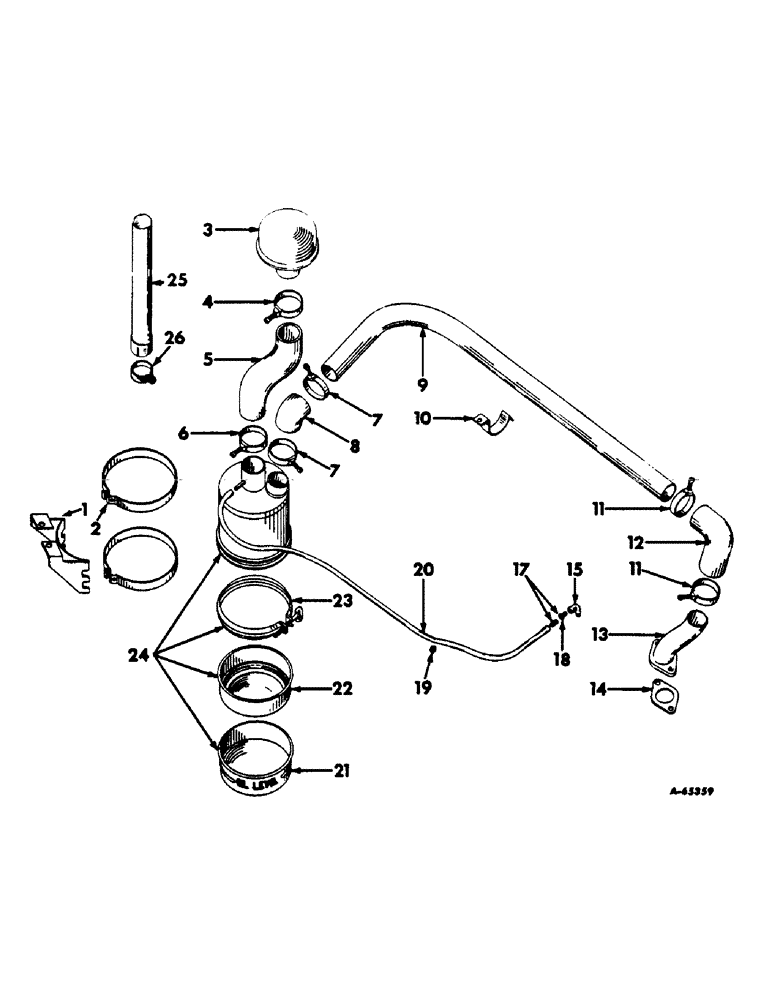

Запчасти Case IH 460 (031) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, FARMALL 460 SERIES DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

370223R1

SPARE PART air cleaner

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3/4" hex-hd. cap

2шт.

2

53051D

SPARE PART air cleaner mounting

2шт.

NUT, 5/16" sq.

2шт.

SCREW, 5/16 x 1-1/2" slt-fil-hd. mach.

2шт.

3

365316R91

CYLINDER END CAP

air cleaner intake

1шт.

4

29978D

CLAMP

air cleaner intake hose upper

1шт.

5

370225R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID x 7.40", SAE 20R4 Class SC

Air cleaner

1шт.

6

29980D

SPARE PART air cleaner intake hose lower

1шт.

7

29980D

SPARE PART air cleaner to manifold pipe elbow

2шт.

8

370234R1

SPARE PART air cleaner to manifold pipe

1шт.

9

370230R1

SPARE PART air, Serial Range: cleaner-manifold

1шт.

10

370235R1

SPARE PART air cleaner to manifold pipe

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 7/16" hex-hd. cap

2шт.

11

29980D

SPARE PART manifold air intake pipe elbow

2шт.

12

370233R1

INTAKE AIR HOSE,2.25" ID x 4.50", SAE 20R4 CLASS SC

Manifold

1шт.

13

370231R11

SPARE PART manifold air intake

1шт.

SCREW, 7/16 x 1" hex-hd. cap

2шт.

14

369497R2

GASKET

manifold air intake pipe

1шт.

15

365781R1

SPARE PART breather pipe

1шт.

17

364252R11

SPARE PART breather

1шт.

18

278953R91

NUT

breather pipe elbow

1шт.

19

138963R1

GROMMET, air cleaner to valve cover hose

1шт.

20

371306R1

HOSE ASSY.

air cleaner to valve cover

1шт.

21

372490R1

BOWL

oil

1шт.

22

372491R1

CUP

inner oil

1шт.

23

54269DA

CLAMP

oil cup retaining

1шт.

24

370455R91

SPARE PART air

1шт.

25

376351R1

AIR INTAKE TUBE,40575" OD, 24" Length

air extension (Also order Ref. 26 and attaching hardware if complete Field Attachment is desired)

1шт.

26

31790DA

CLAMP

air extension pipe

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.
