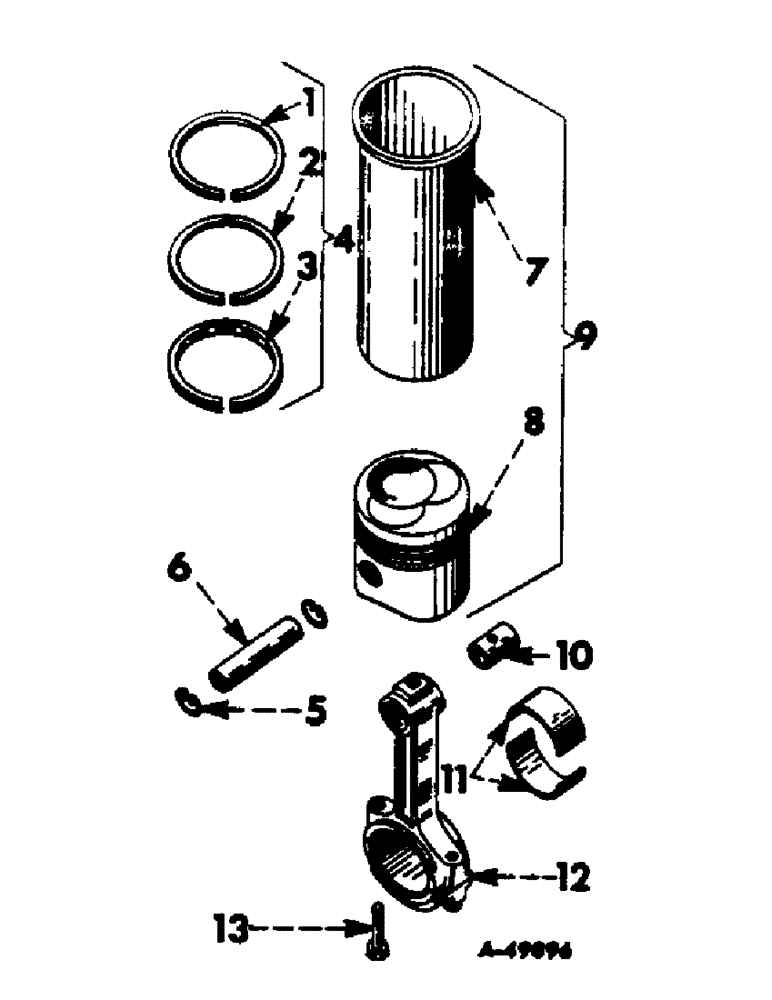

Запчасти Case IH 460 (021) - DIESEL ENGINE, CONNECTING RODS AND SLEEVE SET (01) - ENGINE

1

278327R1

SPARE PART compression piston (Top or first groove)

6шт.

Used only with PISTONS, 278324R1 and 306275R1

1шт.

1

317879R1

compression piston (Top or first groove)

6шт.

Used only with PISTONS, 278324R2 and 305275R2

1шт.

2

278328R1

compression piston (Second groove)

6шт.

3

278329R1

oil piston (Third or bottom groove)

6шт.

4

278334R91

SET OF RINGS

piston (Consists of twelve Compression Rings and six Oil Regulating Rings)

1шт.

Used only with PISTONS, 278324R1 and 306275R1

1шт.

4

316336R91

SEAL PACKAGE

piston (Consists of twelve Compression Ring and six Oil Regulating Rings)

1шт.

Used only with PISTONS, 278324R2 and 305275R2

1шт.

5

279482R1

RING

piston pin retaining (D-236, Serial Range: 501-5610)

12шт.

5

362988R1

OIL SEAL

piston pin retaining (D-236 5611 up)

12шт.

6

278271R1

PISTON PIN

piston (Standard) (D-236, Serial Range: 501-5610)

6шт.

6

306277R1

PIN

piston (Standard) (D-236 5611 up)

6шт.

6

278326R1

PIN

SPARE PART piston (.005" oversize) (D-236, Serial Range: 501-5610)

6шт.

6

306283R1

SPARE PART piston (.005" oversize) (D-236 5611 up)

6шт.

7

320017R91

PACKAGE

(Consists of Sleeve, 278272R1, Shim, 320000R1 and Two Shims, 320018R1)

6шт.

7

278272R1

SLEEVE CYLINDER

cylinder

6шт.

320000R1

SHIM

cylinder sleeve (.003)

1шт.

320018R1

SHIM

cylinder sleeve (.005)

1шт.

8

278324R2

PISTON

(D-236, Serial Range: 501-5610)

6шт.

8

306275R2

PISTON

(D-236 5611 up)

6шт.

9

278332R92

PISTON ASSY.

crankcase (Consists of six Sleeves, 278331R92) D-236, Serial Range: 501-5610

1шт.

9

306286R92

SLEEVE ASSY

crankcase (Consists of six Sleeves, 306284R92) D-236 5611 up

1шт.

9

278330R92

PISTON ASSY.

cylinder (D-236 501 to 5610) (Composed of -

6шт.

278271R1

PISTON PIN

1шт.

278324R2

PISTON

1шт.

279482R1

RING

2шт.

317879R1

RING

1шт.

278328R1

RING

1шт.

278329R1

RING

1шт.

278272R1

SLEEVE CYLINDER

1шт.

9

306284R92

SLEEVE ASSY

cylinder (D-236 5611 up) (Composed of -

6шт.

306277R1

PIN

1шт.

306275R2

PISTON

1шт.

362988R1

OIL SEAL

2шт.

317879R1

RING

1шт.

278328R1

RING

1шт.

278329R1

RING

1шт.

278272R1

SLEEVE CYLINDER

1шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin (D-236, Serial Range: 501-5610)

6шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin (D-236 5611 up)

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

connecting rod (2 halves) (Standard)

6шт.

11

367632R11

BEARING ASSY

BEARING, CON. ROD connecting rod (2 halves) (.002" undersize)

6шт.

11

367631R11

BEARING ASSY

connecting rod (2 halves) (.030" undersize)

6шт.

11

367630R91

SPARE PART connecting rod (Standard) (Consists of six Bearings, 367408R11)

1шт.

11

372443R91

KIT

connecting rod (.030" undersize) (Consists of six Bearings, 367631R11)

1шт.

12

367406R12

ROD

316366R1 and Bushing, 364913R1, Assembly, connecting (D-236, Serial Range: 501-5610)

6шт.

12

306280R12

ROD, CONNECTING

316366R1 and Bushing, 306708R1, Assembly, connecting (D-236 5611 up)

6шт.

12

735237C91

REMAN-CONNECTING ROD

Remanufactured CONNECTING ROD

6шт.

12

1928147C1

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return No, CONNECTING ROD

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
