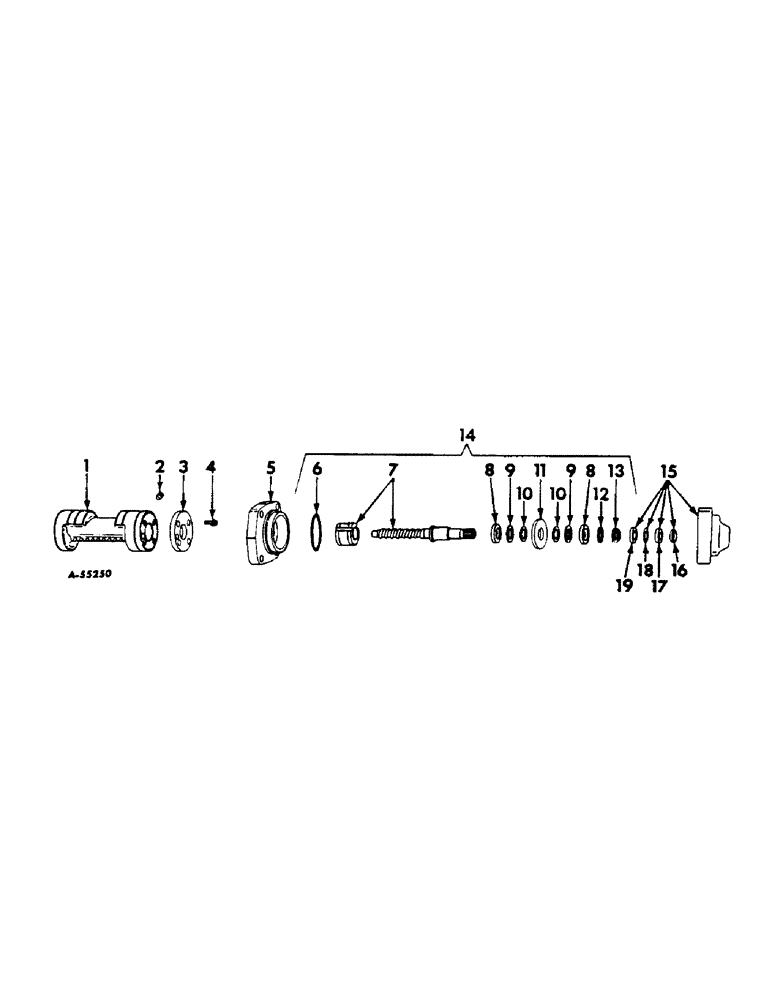

Запчасти Case IH 460 (131) - STEERING MECHANISM, STEERING WORM UNIT, FOR FARMALL 460 SERIES TRACTORS W/O POWER STEERING Steering Mechanism

370545R92

SPARE PART STEERING WORM UNIT

1шт.

1

371231R1

SPARE PART RACK

1шт.

2

371233R1

SPARE PART Rack piston plate

1шт.

3

371232R1

SPARE PART Rack piston

1шт.

4

371234R1

SPARE PART BOLT, twelve point

4шт.

5

371230R1

SPARE PART Steering worm

1шт.

6

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

Adapter (2-3/4 x 3 x 1/8")

1шт.

7

371223R91

SPARE PART WORM AND NUT ASSEMBLY, steering

1шт.

8

371224R1

SPARE PART RACE, thrust bearing outer

2шт.

9

371226R91

THRUST BEARING

Thrust needle

2шт.

10

371225R1

SPARE PART Thrust bearing

2шт.

11

371227R1

WASHER

Thrust bearing center

1шт.

12

371228R1

THRUST WASHER

Thrust bearing lock nut

1шт.

13

371229R1

BEARING LOCK NUT

Thrust bearing lock nut

1шт.

14

371222R91

GEAR

WORM ASSEMBLY, steering

1шт.

15

371219R92

SPARE PART ASSEMBLY, steering worm end

1шт.

16

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

OIL, end cover front

1шт.

17

371221R91

BEARING, NEEDLE,Needle, 22.21mm ID x 28.59mm OD x 9.52mm W

1шт.

18

371220R1

BACK-UP RING

Oil seal back-up

1шт.

19

372762R91

OIL SEAL

OIL SEAL, end cover rear

1шт.
