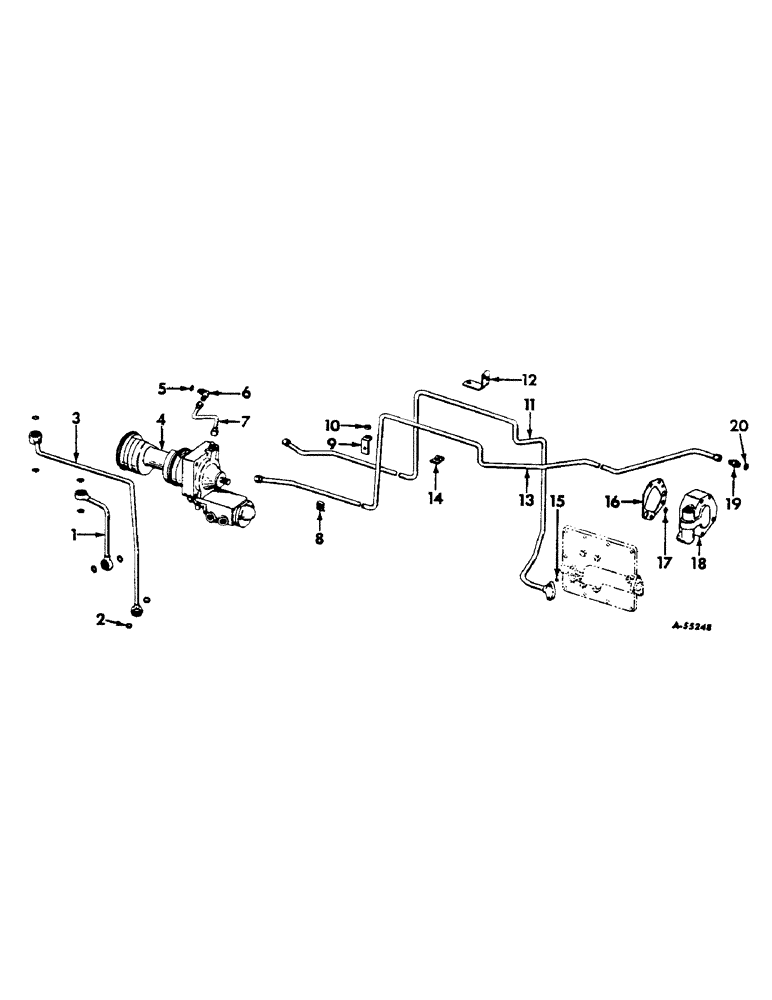

Запчасти Case IH 460 (129) - STEERING MECHANISM, POWER STEERING, FARMALL 460 SERIES Steering Mechanism

*

370915R91

SPARE PART PARTS ACCESSORY, power steering

1шт.

1

370916R11

TUBE,6.75, 3.5" Length

ASSEMBLY, rear pressure

1шт.

*

370921R1

HOLLOW SCREW,Hex, 7/16" - 20 x 1.31"

Front pressure tube union

1шт.

*

370922R1

SCREW,Hex, 7/16" - 20 x 1"

Rear pressure tube union

1шт.

*

135617H

WASHER, 29/64 x 3/4" x 22 ga

2шт.

2

370920R1

O-RING,1/2" ID

Pressure tube (1/2 x 5/8 x 1/16")

8шт.

3

370918R11

TUBE

ASSEMBLY, front pressure

1шт.

*

370922R1

SCREW,Hex, 7/16" - 20 x 1"

Pressure tube union

2шт.

Ref # 3, Part # 370922r1, total length 1.13 in. If looking for longer part, part # is 370921r1, total length of 1.5 in., only available on dealer locator. 370921r1 may be needed for tube 370918r11. jms 12/3/99

1шт.

135617H

WASHER, 29/64 x 3/4" x 22 ga

2шт.

4

370546R91

SPARE PART STEERING WORM UNIT, power (For components see list of parts under details of "Power Steering Worm Unit")

1шт.

Ref #4 - Replaced by 359922R2 11/20/95

1шт.

*

372630R1

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 8

SCREW, cylinder end cover

4шт.

*

183544R1

WASHER

Cylinder end cover screw

4шт.

5

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Overflow return tube elbow

1шт.

6

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

ASSEMBLY, overflow return tube

1шт.

7

370923R11

TUBE

SPARE PART ASSEMBLY, overflow return

1шт.

8

370932R1

CLAMP

Front power steering tube

1шт.

*

NUT, 1/4"

1шт.

*

SCREW, 1/4 x 7/8" hex-hd. cap

1шт.

*

WASHER, 9/32 x 5/8" x 16 ga.

1шт.

9

370930R1

SPARE PART SUPPORT, front tube

1шт.

10

370931R1

SPARE PART Front tube support

1шт.

*

SCREW, 5/16 x 1" hex-hd. cap

1шт.

11

370926R11

HYD TUBE,48" Length

ASSEMBLY, pressure

1шт.

*

SCREW, 5/16 x 1-1/4" hex-hd. cap

2шт.

*

WASHER, 5/16" lock

2шт.

12

370935R1

SPARE PART SUPPORT, rear tube

1шт.

*

NUT, 1/4" NF

2шт.

*

SCREW, 1/4 NF x 3/4" hex-hd. cap

2шт.

13

373163R11

SPARE PART ASSEMBLY, return (Tractors with cotton picker)

1шт.

Not included in the Power Steering Parts Accessory.

1шт.

13

370929R11

HYD TUBE,0.375" OD, 38.663, 4.438" Length

ASSEMBLY, return

1шт.

14

370932R11

CLAMP

ASSEMBLY, rear power steering tube

1шт.

*

SCREW, 1/4 x 7/8" hex-hd. cap

1шт.

15

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

Pressure tube flange (3/8 x 9/16 x 3/32")

1шт.

16

371543R1

GASKET

Power steering pump

1шт.

17

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Power steering pump (9/16 x 11/16 x 1/16")

1шт.

18

370924R92

PUMP

ASSEMBLY, power steering (Thompson) (For components see list of parts under details of "Power Steering Pump") (Optional with 371135R92)

1шт.

18

1949250C1

REMAN-HYD PUMP

460 FARMALL DIESEL (1/58-12/60), 460 FARMALL GAS (1/58-12/63), Both TRACTOR, ASSEMBLY, power steering, 460 SERIES, Reman for New P/N 370924R92

1шт.

18

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

371803R1

BOLT,Hex, 3/8" - 16 x 2 1/2"

Power steering pump

4шт.

18

371135R92

PUMP

ASSEMBLY, power steering (Cessna) (For components see list of parts under details of "Power Steering Pump") (Optional with 370924R92)

1шт.

18

1949250C1

REMAN-HYD PUMP

460 FARMALL GAS (1/58-12/63), 460 FARMALL DIESEL, 460 Series (1/58-12/60), Both TRACTOR, ASSEMBLY, power steering (Cessna)

1шт.

18

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

371802R1

SPARE PART Power steering pump short

3шт.

*

371803R1

BOLT,Hex, 3/8" - 16 x 2 1/2"

Power steering pump long

1шт.

19

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8" tubing (O-Ring type)

1шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8" OD tube fitting

1шт.

*

366566R1

CAP

Steering wheel monogrammed ("IH Power Steering") (Illustrated with "Steering Mechanism and Lower Bolsters")

1шт.

*

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

Cylinder end cover (Illustrated with "Steering Mechanism and Lower Bolsters")

1шт.

*

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

Steering cylinder sleeve (Illustrated with "Steering Mechanism and Lower Bolsters")

3шт.
