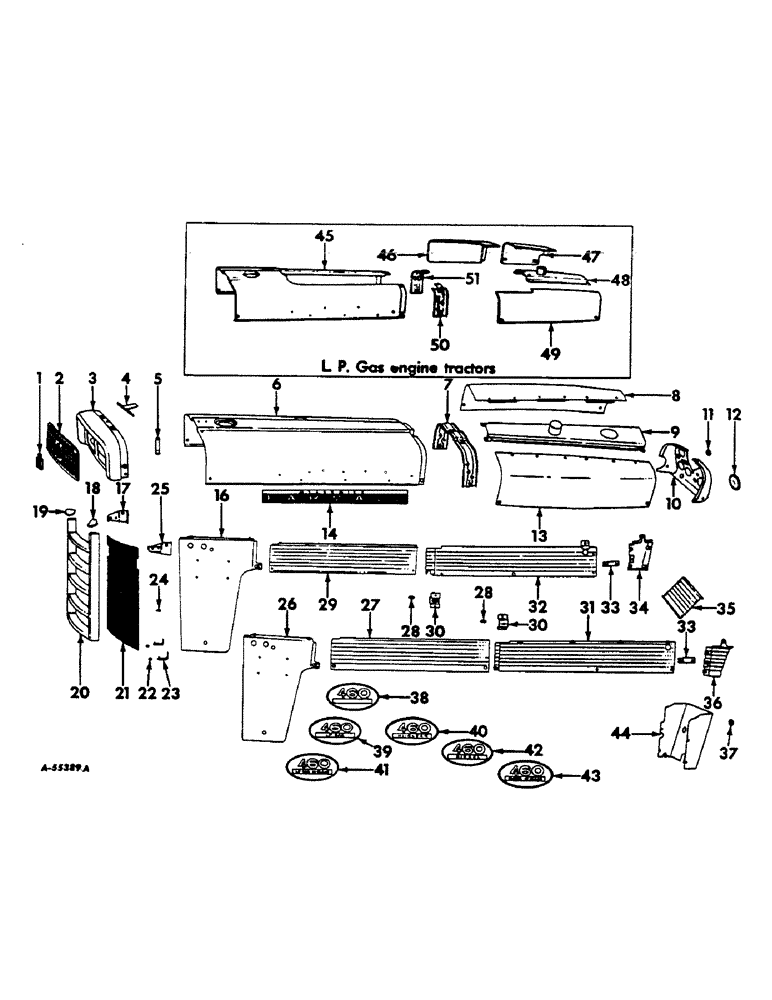

Запчасти Case IH 460 (222) - SHEET METAL, GRILLES, AND FENDERS, HOOD AND RADIATOR GRILLE, FARMALL 460 SERIES Sheet Metal, Grilles & Fenders

1

368523R4

PRODUCT GRAPHIC

EMBLEM, IH hood

1шт.

.

SCREW, No. 10 x 5/16" rd-hd-cr-rec., mach.

2шт.

2

369201R1

SPARE PART Hood

1шт.

.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4 x 5/8" hex-washer-hd. cap

3шт.

3

369200R11

SPARE PART ASSEMBLY, hood grille

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

3шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

2шт.

4

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

4

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

.

SCREW, No. 10 x 7/16" hex-hd. mach. w/external tooth lock washer

2шт.

5

369173R1

SPRING

Hood panel

8шт.

.

NUT, No. 10

8шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

4шт.

.

372372R92

SPARE PART PARTS ACCESSORY, deluxe vertical acting seat

1шт.

6

369169R11

SPARE PART ASSEMBLY, front (Note)

1шт.

.

432590

SPARE PART Exhaust pipe opening

1шт.

7

369194R11

SPARE PART W/TWO NUTS, 363885R91 Assembly, hood center

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

2шт.

.

SCREW, 5/16" x 1/2" hex-hd. cap

4шт.

8

369186R1

SPARE PART RH rear

1шт.

8

370207R1

SPARE PART RH rear (Tractors with Hydra-Touch System)

1шт.

.

372689R1

RETAINER

RETAINER, hood fastener screw

2шт.

.

374240R91

SCREW,1/4" - 20 x 0.90"

ASSEMBLY, hood fastener

2шт.

9

369184R11

SPARE PART ASSEMBLY, rear hood center

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

4шт.

10

369680R11

SPARE PART W/PLUG ASSEMBLY, instrument

1шт.

10

370206R11

SPARE PART W/PLUG ASSEMBLY, instrument (Tractors w/Hydra-Touch System)

1шт.

.

PLUG, 51/64" OD chr-pltd. button

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

5шт.

11

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter opening button

1шт.

12

370940R11

PLATE

COVER ASSEMBLY, tachometer opening

1шт.

13

369185R1

SPARE PART LH rear

1шт.

.

372689R1

RETAINER

RETAINER, hood fastener screw

2шт.

.

374240R91

SCREW,1/4" - 20 x 0.90"

ASSEMBLY, hood fastener

2шт.

14

369117R1

PRODUCT GRAPHIC

PLATE, "McCormick Farmall" name

2шт.

.

370786R1

FASTENER

Tubular clip

14шт.

16

369203R11

SPARE PART SIDE SHEET W/RECEPTACLE ASSEMBLY, radiator grille, RH

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

2шт.

17

369968R91

BRACKET

W/RECEPTACLE ASSEMBLY, radiator grille RH mounting

1шт.

.

SCREW, 1/4 x 1/2" hex-hd. tapping

2шт.

18

369960R1

SPARE PART Radiator grille LH

1шт.

.

9404121

SCREW, No. 4 NF x 1-1/4" slt-pan-hd. tapping

1шт.

19

369961R1

SPARE PART Radiator grille RH

1шт.

.

9404121

SCREW, No. 4 NF x 1/4" slt-pan-hd. tapping

1шт.

20

369055R11

SPARE PART ASSEMBLY, radiator

1шт.

.

369866R1

NUT

1/4" quick release fastener

2шт.

.

372784R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4 x 3/4" hex-washer-hd. cap

2шт.

21

368174R1

SCREEN

Radiator grille

1шт.

22

369057R1

BUMPER

Radiator grille bottom

2шт.

23

369197R11

SPARE PART ASSEMBLY, radiator grille retainer pin

2шт.

.

SCREW, 1/4 x 3/8" hex-hd. cap

2шт.

24

368175R1

BUMPER

Radiator grille side

4шт.

25

369967R91

SPARE PART W/RECEPTACLE ASSEMBLY, radiator grille LH mounting

1шт.

.

SCREW, 1/4 x 1/2" hex-hd. tapping

2шт.

26

369202R11

SPARE PART SIDE SHEET W/RECEPTACLE ASSEMBLY, radiator grille LH

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

2шт.

27

369181R1

SPARE PART LH front section hood

1шт.

.

369866R1

NUT

1/4" quick release fastener

2шт.

.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4 x 5/8" hex-washer-hd. cap

2шт.

28

369865R2

FASTENER

RECEPTACLE, quick release fastener

6шт.

.

372152R1

SPARE PART .088 x 5/32 (ov-hd.) tubular

12шт.

29

369182R1

SPARE PART RH front hood section

1шт.

.

369866R1

NUT

1/4" quick release fastener

2шт.

.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4 x 5/8" hex-washer-hd. cap

2шт.

30

370082R11

SUPPORT

SPARE PART BRACKET W/RECEPTACLE ASSEMBLY, quick release fastener

2шт.

.

SCREW, No. 10 NF x 1/4" slt-rd-hd. mach.

4шт.

31

369187R1

SPARE PART LH rear section hood

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

3шт.

32

369188R11

SPARE PART ASSEMBLY, RH rear hood section (Gasoline or Diesel Engine Tractors)

1шт.

32

372626R91

SPARE PART ASSEMBLY, RH rear hood section (L.P. Gas Engine Tractors)

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

3шт.

33

369964R1

SPARE PART BRACE, rear corner panel

2шт.

.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4 x 5/8" hex-washer-hd. cap

2шт.

.

3/8 x 7/8" hex-hd. cap

2шт.

34

369208R1

SPARE PART RH rear corner

1шт.

35

369209R1

SPARE PART Rear (Carbureted Engine Tractors)

1шт.

35

369962R11

SPARE PART ASSEMBLY, rear (For Diesel Engine Tractors)

1шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

No. 10 x 7/16" hex-washer-hd. cap

4шт.

36

369207R1

SPARE PART LH rear corner

1шт.

37

192280

HOLE PLUG BUTTON,1 1/4"

1-7/16" OD button (For 1-1/4" hole) (For tractors w/o Hydra-Touch System)

3шт.

38

369119R1

SPARE PART PLATE, 460 Model symbol

2шт.

.

370786R1

FASTENER

Tubular clip

8шт.

39

371251R1

SPARE PART 460 L.P. Gas model symbol

2шт.

.

370786R1

FASTENER

Tubular clip

8шт.

40

369120R1

SPARE PART PLATE, 460 Hi-Clear model symbol

2шт.

.

370786R1

FASTENER

Tubular clip

8шт.

41

371252R1

SPARE PART 460 L.P. Gas Hi-Clear model symbol

2шт.

.

370786R1

FASTENER

Tubular clip

8шт.

42

369121R1

SPARE PART 460 Diesel model symbol

2шт.

.

370786R1

FASTENER

Tubular clip

8шт.

43

369122R1

SPARE PART PLATE, 460 Diesel Hi-Clear model symbol

2шт.

.

370786R1

FASTENER

Tubular clip

8шт.

44

369210R3

SPARE PART Hydraulic valve

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

4шт.

44

371516R3

SPARE PART Hydraulic valve (Tractors with Fast Hitch)

1шт.

.

89982H

SPARE PART Valve cover truss head

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

2шт.

45

371687R11

SPARE PART ASSEMBLY, front

1шт.

46

371692R11

SPARE PART ASSEMBLY, RH rear

1шт.

.

372689R1

RETAINER

RETAINER, hood fastener screw

1шт.

.

374240R91

SCREW,1/4" - 20 x 0.90"

ASSEMBLY, hood fastener

1шт.

.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4 x 5/8" hex-washer-hd.

2шт.

47

372624R1

SPARE PART Battery service (Tractors not equipped with Hydra-Touch System)

1шт.

47

372625R1

SPARE PART Battery service (Tractors equipped with Hydra-Touch System)

1шт.

.

372689R1

RETAINER

RETAINER, hood fastener screw

2шт.

.

374240R91

SCREW,1/4" - 20 x 0.90"

ASSEMBLY, hood fastener

2шт.

48

371690R11

SPARE PART ASSEMBLY, rear hood center

1шт.

49

371691R1

SPARE PART LH rear

1шт.

.

372689R1

RETAINER

RETAINER, hood fastener screw

1шт.

.

374240R91

SCREW,1/4" - 20 x 0.90"

ASSEMBLY, hood fastener

1шт.

.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4 x 5/8" hex-washer-hd.

3шт.

50

371694R11

SPARE PART ASSEMBLY, hood center LH

1шт.

51

371695R11

SPARE PART ASSEMBLY, hood center RH

1шт.
