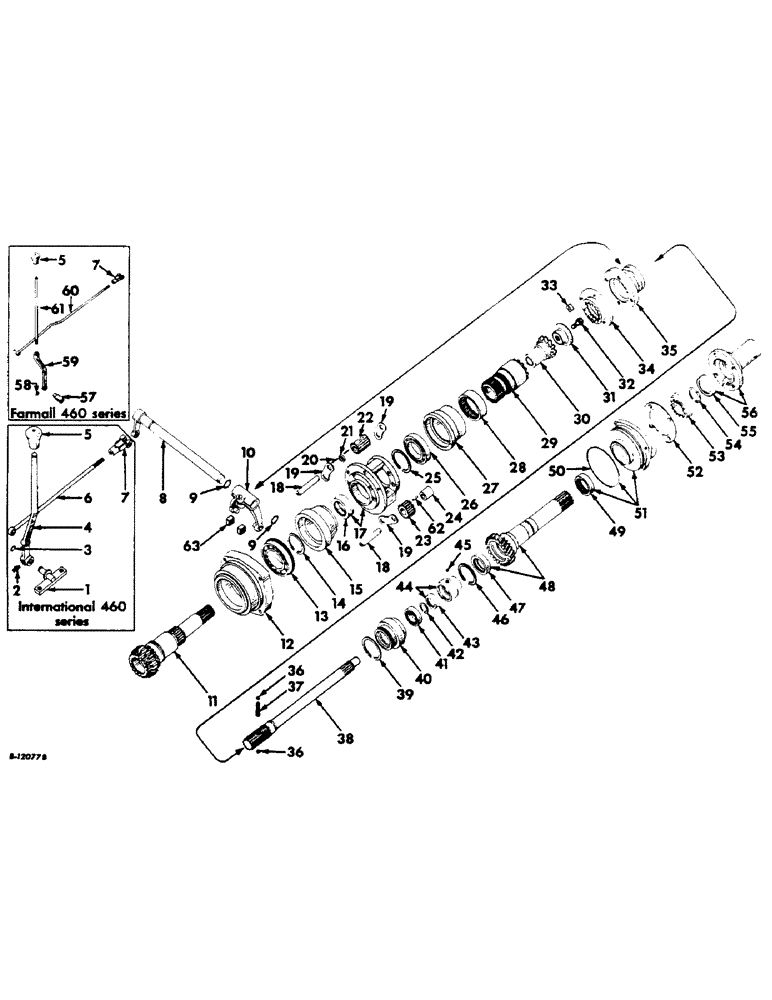

Запчасти Case IH 460 (121) - REAR FRAME & DRIVING MECHANISMS, FORWARD & REVERSE DRIVE Rear Frame & Driving Mechanisms

1

370481R11

SPARE PART ASSEMBLY, selector handle

1шт.

SCREW, 7/16 x 2-1/4" hex-hd. cap

2шт.

2

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

(Optional with 271284)

1шт.

2

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 x 67-1/2 degree lubrication (Optional with 109460)

1шт.

3

370483R1

SPARE PART Selector handle pivot snap

1шт.

4

370484R2

SPARE PART Selector

1шт.

WASHER, 9/16 x 1-1/4" x 12 ga.

1шт.

5

53717DA

BUTTON

BALL, selector handle

1шт.

6

370480R11

SPARE PART ROD ASSEMBLY, selector

1шт.

NUT, 3/8" NF

1шт.

S3631/2

PIN

3/8 x 1-1/4" headed

1шт.

PIN, 1/8 x 7/8" cotter

1шт.

WASHER, 3/8 x 3/4" x 16 ga.

1шт.

7

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8" rod end

1шт.

PIN, 3/8 x 1-3/32" rod end

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

8

370478R11

SPARE PART ASSEMBLY, selector lever

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Selector lever shaft (11/16 x 7/8 x 3/32")

2шт.

10

318720R91

FORK TEDDER

ASSEMBLY, selector (Also order Block, 318721R1 unless tractor is so equipped)

1шт.

SCREW, 3/8 x 1-1/4" cap

1шт.

11

370496R1

SHAFT

Transmission drive

1шт.

12

370499R11

SPARE PART ASSEMBLY, transmission drive shaft bearing

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

4шт.

13

ST345A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BALL, transmission drive shaft

1шт.

14

357194R1

RING

Transmission drive shaft bearing snap

1шт.

15

370495R1

SPARE PART SPACER, planet carrier

1шт.

16

370486R91

NEEDLE BEARING

Transmission drive shaft needle

1шт.

17

370485R11

SPARE PART ASSEMBLY, planet

1шт.

SCREW, 5/16 x 1" hex-hd. cap

3шт.

18

370487R1

SPARE PART Planet gear

6шт.

19

370488R1

SPARE PART PLATE, planet gear thrust

6шт.

20

370493R1

BEARING, NEEDLE

ROLLER, planet gear bearing needle (Farmall 460 Series - 501 to, International 460 Series - 10075

207шт.

20

364634R91

PIN

PACKAGE, planet gear bearing needle (Consists of 138 rollers) (Farmall 460 Series up, International 460 Series - 10076 up)

1шт.

21

370492R1

SPARE PART Planet gear roller bearing (Farmall 460 Series - 501 to, International 460 Series -, Serial Range: 501-10075)

3шт.

21

359888R1

SPACER

SPACER, planet gear roller bearing (Farmall 460 Series up, International 460 Series - 10076 up)

3шт.

22

370491R1

GEAR

Planet-long

3шт.

23

370490R1

SPARE PART Planet-short

3шт.

24

370489R1

SPARE PART SPACER, planet gear

3шт.

25

357035R1

RING

Reverse drive sun gear bearing snap

1шт.

26

ST626

BALL BEARING, reverse drive sun gear front

1шт.

27

370474R1

SPARE PART Reverse sun gear bearing

1шт.

28

454946R91

SPARE PART Reverse sun gear needle

1шт.

29

370497R2

PINION

GEAR, reverse sun gear

1шт.

30

370500R2

COUPLING

Transmission drive spline

1шт.

31

370752R1

RETAINER

Transmission drive shaft

1шт.

32

371755R2

BOLT (SPREADER),Hex, 3/8" - 24 x 1"

Transmission drive shaft retainer

1шт.

33

59473DA

LOCK

Spline shifter coupling collar bolt

4шт.

34

370506R2

HUB

COUPLING, spline shifter

1шт.

35

370507R2

SPARE PART Spline shifter coupling

1шт.

SCREW, 3/8 x 7/8" hex-hd. cap

4шт.

36

17010R1

BALL,5/16" Dia

Forward & reverse poppet 5/16" Dia

2шт.

37

370505R2

VALVE SPRING

Forward and reverse poppet

1шт.

38

370503R1

SPARE PART Cutch

1шт.

39

370856R1

RING, SNAP

SPARE PART Cutch shaft bearing cage snap

1шт.

40

370473R1

CAGE

Clutch shaft bearing

1шт.

41

451590R91

BALL BEARING,30mm ID x 55mm OD x 13mm W

BALL, clutch shaft

1шт.

42

370504R1

RING

Cutch shaft snap

1шт.

43

370510R91

OIL SEAL

Clutch shaft carrier

1шт.

44

370509R11

CARRIER

ASSEMBLY, clutch shaft oil seal

1шт.

45

17006R1

BALL

3/16" dia. chr-stl.

1шт.

46

370511R1

RING

Clutch shaft oil seal carrier snap

1шт.

47

370513R91

SEAL

OIL, independent power take-off drive shaft

1шт.

48

370512R11

SPARE PART ASSEMBLY, independent power take-off drive

1шт.

49

983851R91

NEEDLE BEARING

Independent power take-off drive shaft needle

1шт.

50

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

Independent power take-off drive shaft bearing cage (5-1/4 x 5-1/2 x 1/8")

1шт.

51

370514R11

SPARE PART ASSEMBLY, independent power take-off drive shaft bearing

1шт.

SCREW, 3/8 x 1" hex-hd. cap

4шт.

52

370518R1

GASKET

Independent power take-off drive shaft bearing retainer

1шт.

53

ST631

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

BALL, independent power take-off drive shaft

1шт.

54

359894R1

RING, SNAP

RING SNAP Independent power take-off drive shaft bearing snap

1шт.

55

370517R91

OIL SEAL

Independent power take-off drive shaft bearing retainer

1шт.

56

370516R11

HUB

RETAINER ASSEMBLY, independent power take-off drive shaft bearing

1шт.

SCREW, 3/8 x 1" hex-hd. cap

4шт.

57

374162R1

SPARE PART Selector handle

1шт.

SCREW, 5/8 x 4" hex-hd. cap

1шт.

WASHER, 21/32 x 1-1/4" x 11 ga.

1шт.

58

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (Optional with 443566)

1шт.

58

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (Optional with 273354)

1шт.

59

374163R1

SPARE PART Selector handle

1шт.

60

374161R11

SPARE PART ASSEMBLY, selector

1шт.

NUT, 3/8NF

1шт.

46883H

CLEVIS PIN,3/8" x 1 9/16"

3/8 x 1-9/16" rod end

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

WASHER, 13/32 x 11/16" x 16 ga.

1шт.

61

374164R1

SPARE PART Selector

1шт.

NUT, 1/2NF

1шт.

62

370493R1

BEARING, NEEDLE

ROLLER, planet gear bearing needle (Farmall 460 Series up, International 460 Series - 10076 up)

1шт.

63

318721R1

BLOCK

Selector fork

2шт.
