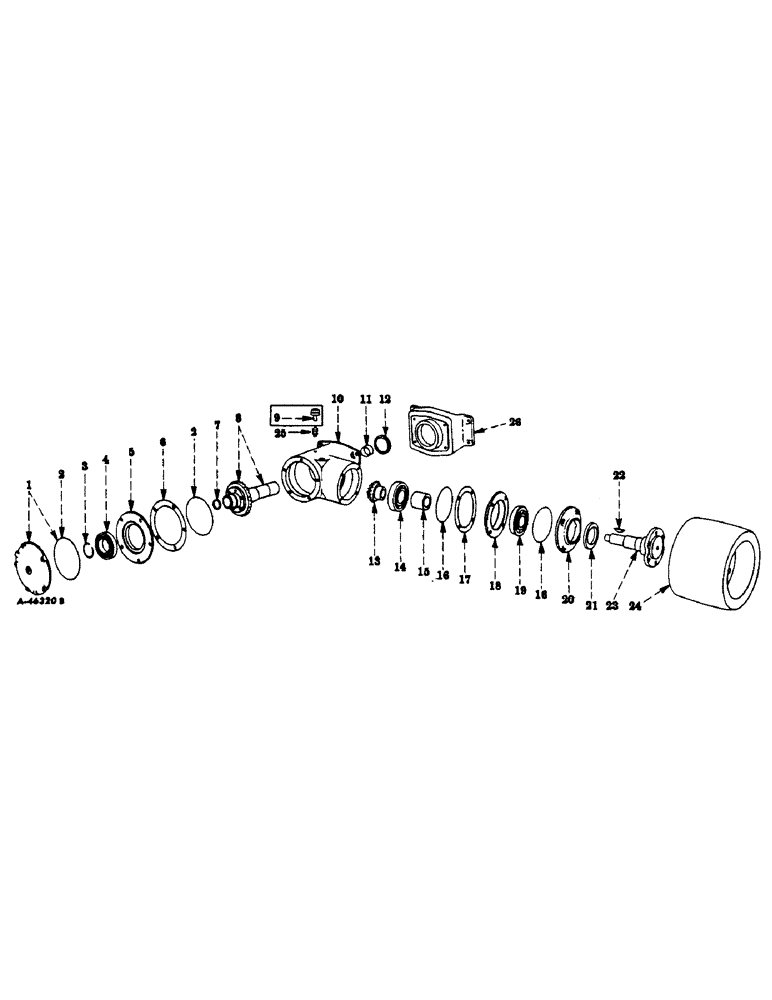

Запчасти Case IH 460 (119) - REAR FRAME & DRIVING MECHANISMS, REAR MOUNTED BELT PULLEY Rear Frame & Driving Mechanisms

373050R91

ATTACHMENT, belt pulley (For tractors equipped with Independent Power Take-Off). (When it is desired to mount this Belt Pulley unit on a Power Take-Off w/o Provision for mounting the Belt Pulley, order separately and install the following parts -

1шт.

364713R1

AXLE PIN

BOLT

3шт.

364708R2

SPARE PART

1шт.

359054R2

GASKET

1шт.

360154R1

GASKET

1шт.

364712R12

SHIELD

1шт.

1

364734R11

SPARE PART ASSEMBLY, pulley drive gear bearing

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

PLUG, 1/4" sq-hd. pipe

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

5шт.

WASHER, 3/8" lock

5шт.

1

373059R11

SPARE PART ASSEMBLY, pulley drive gear bearing

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

PLUG, 1/4" sq-hd. pipe

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

5шт.

2

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

Bearing retainer or cage (5-1/4 x 5-1/2 x 1/8")

2шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

2

252741R1

O-RING

Bearing retainer or cage (5-3/4 x 6 x 1/8")

2шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

3

358236R1

RING

Pulley drive gear bearing snap

1шт.

4

ST382

BEARING, BALL

Pulley drive gear

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

4

373100R91

SPARE PART Pulley drive gear

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

5

364730R11

CAGE W/O-RING, 252556R1 Assembly, pulley drive gear bearing

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

5

373055R11

SPARE PART W/O-RING, 252741R1 Assembly, pulley drive gear bearing

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

6

364731R1

SPARE PART Pulley drive gear bearing cage, light (.007")

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

6

373056R1

SPARE PART Pulley drive gear bearing cage, light (.007")

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

6

364732R1

SPARE PART Pulley drive gear bearing cage, medium (.012")

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

6

373057R1

SPARE PART Pulley drive gear bearing cage, medium (.012")

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

6

364733R1

SPARE PART Pulley drive gear bearing cage, heavy (.030")

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

6

373058R1

SPARE PART Pulley drive gear bearing cage, heavy (.030")

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

7

145201R1

PLUG

Cup

1шт.

8

364727R91

SPARE PART W/PLUG, 145201R1 Assembly, bevel pulley drive (28 teeth)

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

8

373053R12

SPARE PART W/PLUG, 145201R1 Assembly, bevel pulley drive (31 teeth)

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

9

60836H

BREATHER

Housing (Order Bushing, 112877 and Plug, 110891H)

1шт.

10

364723R21

SPARE PART ASSEMBLY, pulley drive (Has 7-1/8" flange for mounting pulley drive gear bearing cage, retainer and shims) (Order 373336R91) (Composed of -

1шт.

364725R1

SPARE PART

1шт.

364723R2

HOUSING (NSS)

1шт.

365416R91

OIL SEAL

OIL

1шт.

103878

PLUG

1шт.

103881

PLUG)

1шт.

10

373052R11

SPARE PART ASSEMBLY, pulley drive (Has 7-5/8" flange for mounting pulley drive gear bearing cage, retainer and shims) (Composed of -

1шт.

364725R2

SPARE PART

1шт.

373052R1

HOUSING (NSS)

1шт.

365416R91

OIL SEAL

OIL

1шт.

103878

PLUG

1шт.

103881

PLUG)

1шт.

PLUG, 1/4" sq-hd. pipe (Drain plug)

1шт.

PLUG, 3/4" sq-hd. pipe (Filler plug)

1шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

11

364725R2

SPARE PART Pulley drive gear hub

1шт.

12

365416R91

OIL SEAL

OIL, pulley drive gear hub

1шт.

13

364736R1

SPARE PART Pulley shaft (16 teeth)

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

13

373060R1

SPARE PART Pulley shaft (16 teeth)

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

70120D

SLOTTED NUT,7/8"-14

Pulley shaft gear retainer

1шт.

PIN, 1/8 x 1-1/4" cotter

1шт.

358235R1

SPARE PART Pulley shaft gear retainer

1шт.

14

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BALL, pulley shaft inner

1шт.

15

364744R1

SPARE PART Pulley shaft bearing

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

15

373061R1

SPARE PART SPACER, pulley shaft bearing

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

16

293729R1

RING

O-RING, pulley shaft bearing cage or retainer (4-3/4 x 5 x 1/8")

2шт.

17

364741R1

SPARE PART Pulley shaft bearing cage, light (.007")

1шт.

17

364742R1

SPARE PART Pulley shaft bearing cage, medium (.012")

1шт.

17

364743R1

SPARE PART Pulley shaft bearing cage, heavy (.030")

1шт.

18

364740R11

SPARE PART w/O-Ring, 293729R1 Assembly, pulley shaft bearing

1шт.

19

ST294

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

BALL, pulley shaft outer

1шт.

Used with Pulley Drive Housing (NSS) 364723R2

1шт.

19

ST251

BALL BEARING,45 mm ID x 25 mm

BALL, pulley shaft outer

1шт.

Used with Pulley Drive Housing (NSS) 373052R1

1шт.

20

364737R11

SPARE PART RETAINER, w/Oil Seal, 365434R91 and O-Ring, 293729R1 Assembly, pulley shaft bearing

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

21

365434R91

OIL SEAL

Pulley shaft bearing retainer

1шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

No. 127 aly. stl.

1шт.

23

364735R1

SPARE PART Pulley

1шт.

PLUG, 1/4" sq-hd. pipe

1шт.

SCREW, 3/8 x 1-3/8" hex-hd. cap

5шт.

24

364748R91

SPARE PART Belt (11" dia. x 7-1/2" face)

1шт.

SCREW, 1/2 x 1-1/8" hex-hd. cap

6шт.

25

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

26

NOT USED

1шт.

373336R91

SPARE PART PACKAGE, pulley drive housing service (Will work for 364723R21) (Consists of -

1шт.

373055R11

SPARE PART

1шт.

373052R11

SPARE PART

1шт.

373059R11

SPARE PART

1шт.

373056R1

SPARE PART

1шт.

373057R1

SPARE PART

1шт.

373058R1

SPARE PART

1шт.
